Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PKA36125G

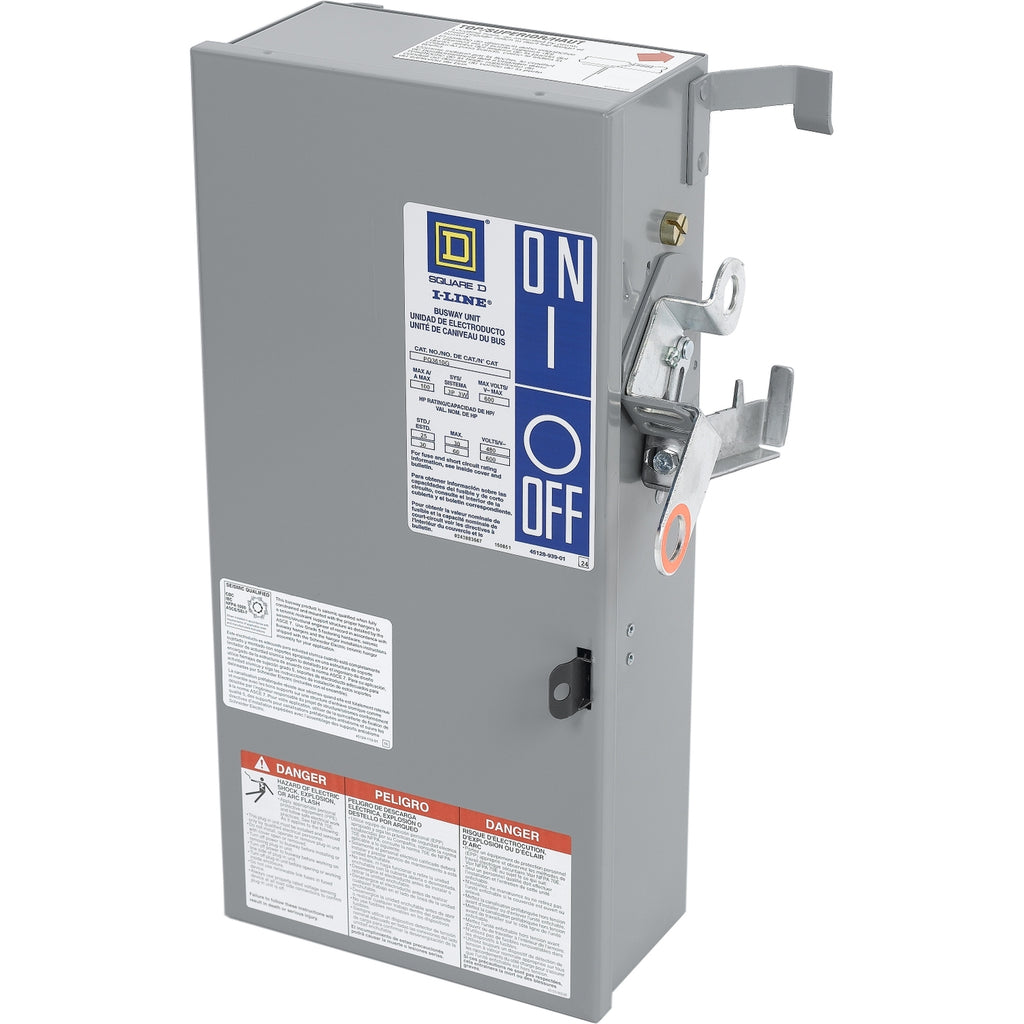

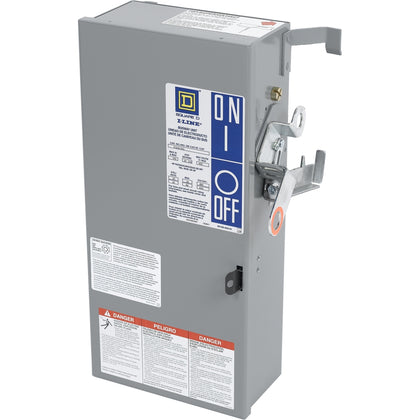

PKA36125G is a Square D breaker type bus plug rated for 125 amps at 600 volts, designed for use with Square D I-Line plug-in bus duct systems. This 3-phase, 3-wire grounded bus plug features a KA frame breaker configuration and is engineered for reliable power distribution in industrial and commercial applications. The unit integrates seamlessly with I-Line II low amperage busway systems and provides safe, efficient connection to bus duct infrastructure.
- Amperage Rating: 125 Amps
- Voltage Rating: 600 Volts
- Phase Configuration: 3-Phase
- Wire Configuration: 3-Wire with Ground
- Breaker Type: KA Frame
- Series: Square D I-Line
- Mounting: Plug-in Bus Duct Compatible
- Maximum Frame Capacity: 250A
- Application: Industrial Power Distribution
Specifications
- Part Number: PKA36125G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PKA
- Voltage : 600
- Amperage : 125
- Phase : 3
- AIC rating : 25kA@480V
- Wire : 3
- Compatible Frames : KAP
Product Data
- GTIN : 00785901022343
- Country of Origin : United States
- Dimensions : Depth 2.05 in (52 mm) Width 1.18 in (30 mm) Height 1.65 in (42 mm)
- Weight : 45
