Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PKA36175GN

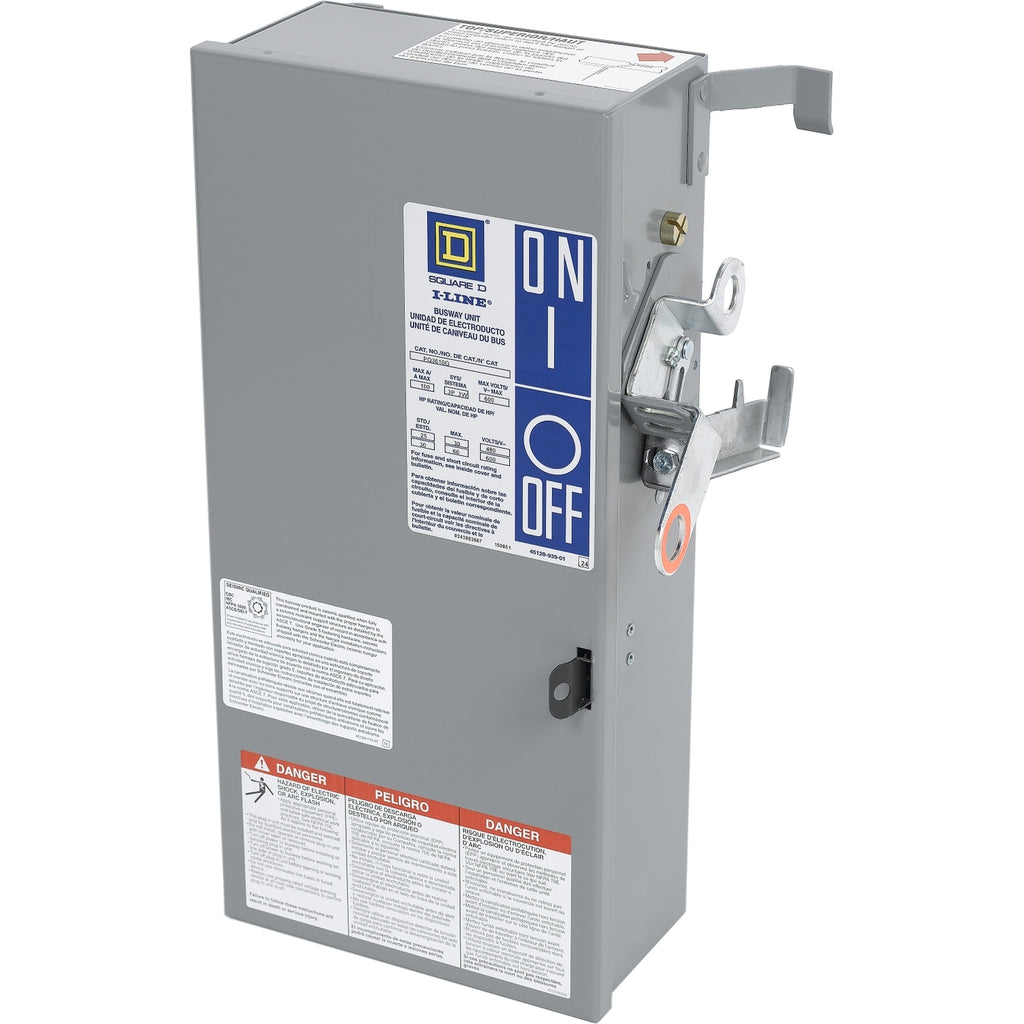

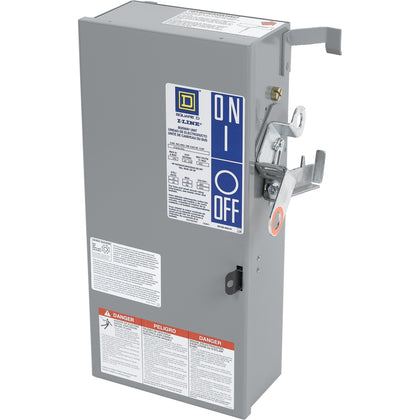

PKA36175GN is a 175A, 600V, 3-phase, 4-wire bus plug designed for use with Schneider Electric I-Line busway systems. This plug-in unit features a KA frame and is suitable for industrial and commercial power distribution applications. The PKA36175GN provides reliable circuit protection and easy installation in I-Line busway runs. It is rated for up to 600V AC and includes mechanical lugs for secure connections. The unit is designed for 3-phase, 4-wire systems and is compatible with standard I-Line busway configurations.
- 175A rated current
- 600V AC maximum voltage
- 3-phase, 4-wire configuration
- KA frame
- Plug-in mounting type
- Compatible with I-Line busway
- Mechanical lugs included
- 3-pole design
Specifications
- Part Number: PKA36175GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PKA
- Voltage : 600
- Amperage : 175
- Phase : 3
- AIC rating : 25kA@480V
- Wire : 4
- Compatible Frames : KAP
Product Data
- GTIN : 00785901022442
- Country of Origin : United States
- Dimensions : Depth 2.05 in (52 mm) Width 1.18 in (30 mm) Height 1.65 in (42 mm)
- Weight : 45
