PKA36150GN - Square D 150A 600V 3P 4W Breaker Type Bus Plug I-Line Series

PKA36150GN

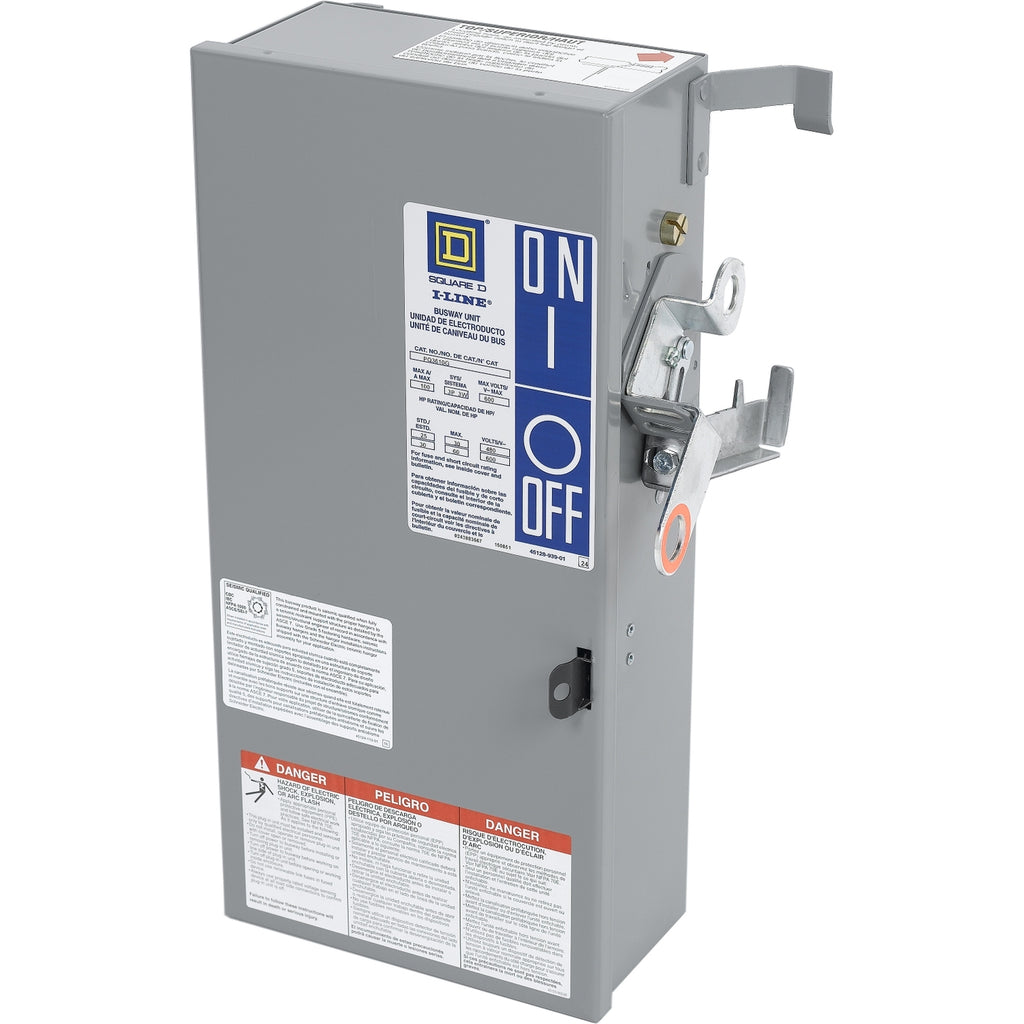

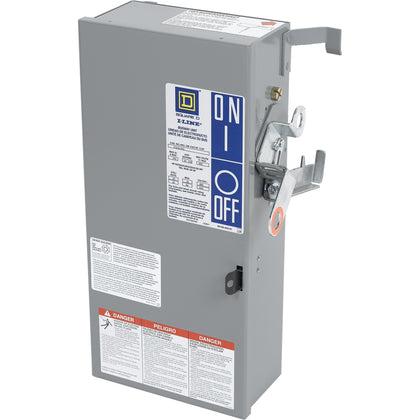

PKA36150GN is a Square D breaker type bus plug designed for 150 Amps and 600 Volts in a 3-phase, 4-wire configuration.This bus plug belongs to the I-Line series and features a KA frame thermal magnetic molded case circuit breaker. It is rated for 150 Amps continuous current with a permissible voltage of 600 V AC and operational voltage of 277/480 V AC. The unit is designed for use in busway systems requiring reliable and safe power distribution.

• Amperage: 150 A
• Voltage: 600 V AC permissible, 277/480 V AC operational
• Poles: 3
• Wires: 4 (including ground)
• Circuit Breaker Type: KA frame thermal magnetic
• Series: I-Line
• Interrupt Rating: 25 kA at 480 V
• Mounting Type: Breaker type bus plug for busway systems

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PKA36150GN
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Breaker Type
• Family : I-Line
• Type : PKA
• Voltage : 600
• Amperage : 150
• Phase : 3
• AIC rating : 25kA@480V
• Wire : 4
• Compatible Frames : KAP

Product Data

• GTIN : 00785901022435
• Country of Origin : United States
• Dimensions : Depth 2.05 in (52 mm) Width 1.18 in (30 mm) Height 1.65 in (42 mm)
• Weight : 45
