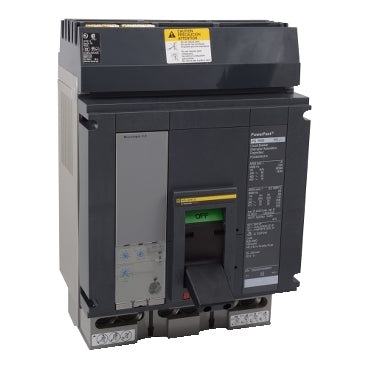

PKA36120U44A - Square D 1200A 600V 3 Pole I-Line Molded Case Circuit Breaker

PKA36120U44A

PKA36120U44A is a Square D I-Line style molded case circuit breaker designed for high-capacity electrical protection.This 3 pole breaker is rated for 1200 amps and 600 volts AC, featuring a 50kA interrupting rating suitable for demanding industrial applications. It mounts via the I-Line plug-in system and is built to meet rigorous UL and CSA certifications.

• Amperage: 1200A
• Voltage Rating: 600V AC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 50kA
• Series/Frame: I-Line
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PKA36120U44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 785901542933
• Country of Origin : United States
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
