PKA36080U43A - Square D PowerPacT P 800A 3-Pole 600VAC 50kA I-Line

PKA36080U43A

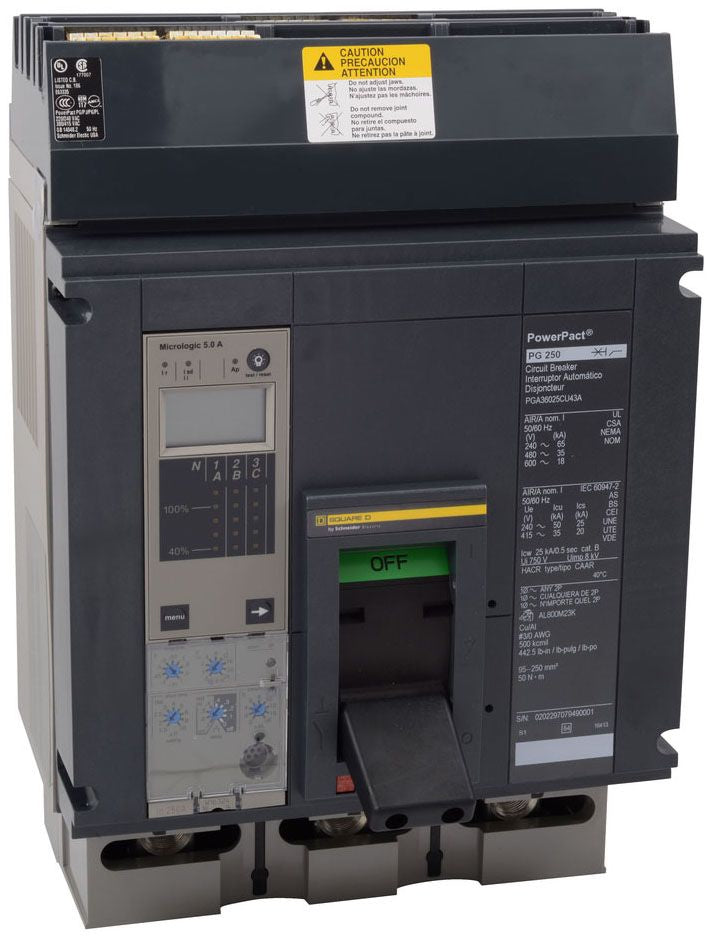

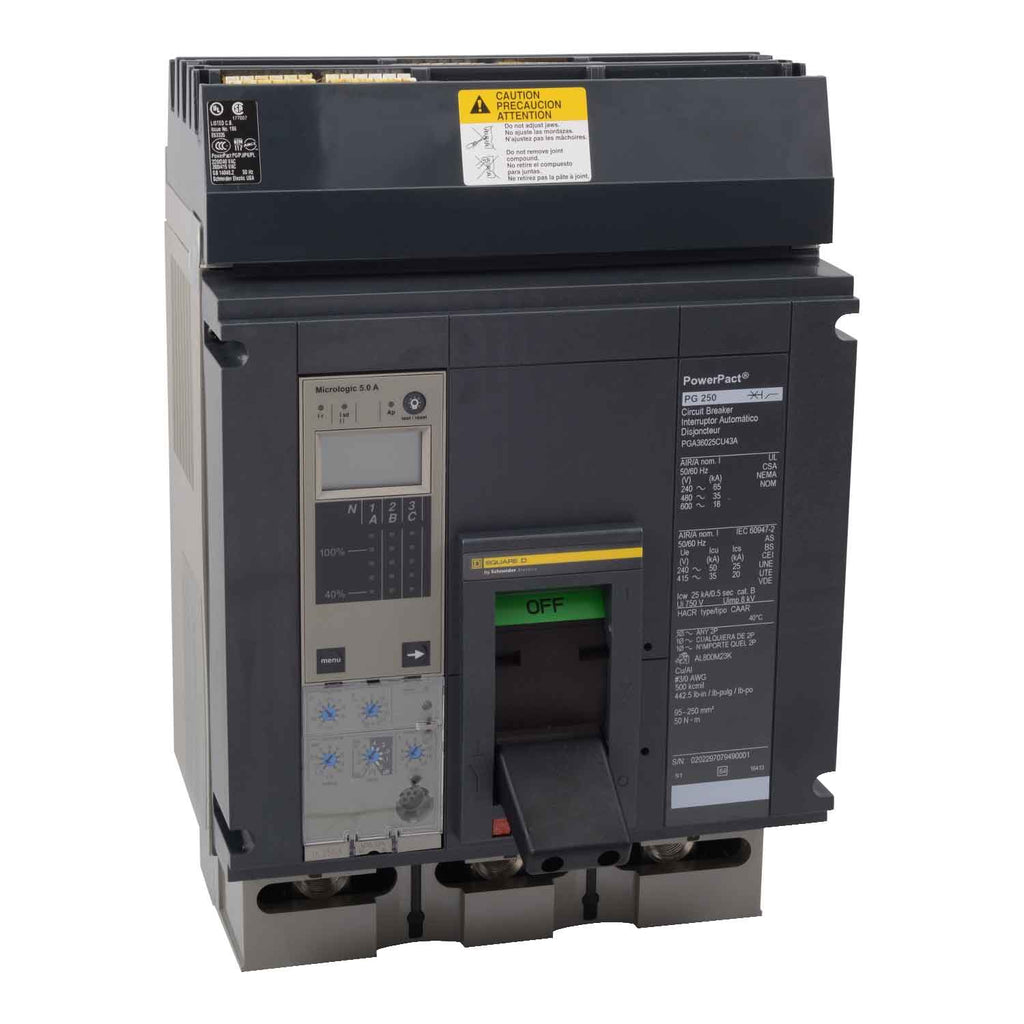

PKA36080U43A is a Square D PowerPacT P molded case circuit breaker designed for industrial power distribution and control panel applications. This 3-pole breaker provides reliable overcurrent protection with I-Line style plug-in connectivity for standardized mounting in compatible enclosures. The unit features solid-state trip technology and is rated for continuous operation at 80% of its ampere rating, making it suitable for demanding electrical systems requiring consistent performance and protection.

• Amperage Rating: 800A
• Voltage Rating: 600VAC
• Poles: 3
• Connection Type: I-Line Style Plug-In
• Interrupting Rating: 50kA at 480VAC
• Series: PowerPacT P Frame
• Trip Unit: Solid-State MicroLogic 5.0A
• Continuous Current Rating: 80%
• Certifications: UL 489 Listed, CSA NMX, IEC Certified
• Common mounting holes and handle locations for design standardization

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PKA36080U43A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PKA
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : P Frame
• Protection : Solid State

Product Data

• GTIN : 03606486286371
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
