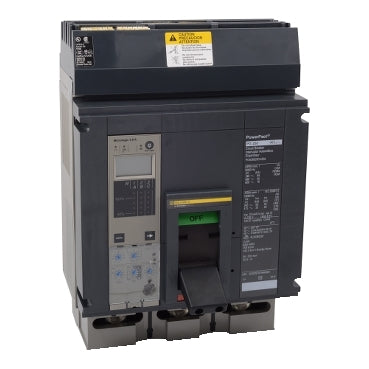

PKA36040CU63AE1 - Square D Powerpact P I-Line 400A 600V 3 Pole Circuit Breaker Micrologic 5.0P 50kA

PKA36040CU63AE1

PKA36040CU63AE1 is a Square D Powerpact P I-Line style circuit breaker rated for 400 amps and 600 volts with 3 poles and a Micrologic 5.0P trip unit.This molded case circuit breaker features a 50kA interrupting rating at 600VAC, suitable for industrial and commercial power distribution applications. It is designed for plug-in I-Line mounting and includes advanced electronic trip unit protection for precise fault detection and coordination. The breaker meets UL 489 and CSA certifications for safety and reliability.

• Amperage: 400A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 50kA at 600VAC
• Series/Frame: Powerpact P
• Trip Unit: Micrologic 5.0P electronic
• Certifications: UL 489, CSA
• Continuous Current Rating: 100%
• Phase: ABC
• Modbus Communication: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PKA36040CU63AE1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PKA
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : P Frame
• Protection : Solid State

Product Data

• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
