Description
PJP36080U31A

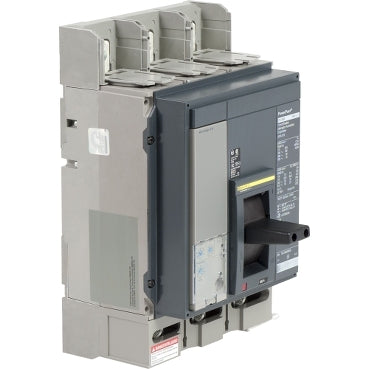

PJP36080U31A is a Square D 800 Amp, 600 Volt, 3-pole molded case circuit breaker designed for reliable power distribution protection.This PowerPact P frame breaker features a bolt-on mounting type and solid-state electronic trip unit with Micrologic 3.0 technology. It offers a 25kA interrupting rating at 600VAC and is UL and CSA certified for industrial and commercial applications.
- Key Specifications
- Amperage: 800A
- Voltage Rating: 600VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 25kA at 600VAC
- Frame/Series: PowerPact P (PJP)
- Trip Unit: Electronic, Micrologic 3.0
- Certifications: UL, CSA
- Application: Power distribution, I-Line panelboard and switchboard compatible
- Part Number: PJP36080U31A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : PJP
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : P Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Solid State
- UPC : 060648611980
- GTIN : 03606486119808
- Country of Origin : Mexico
- Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
- Weight : 35.001
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
