Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

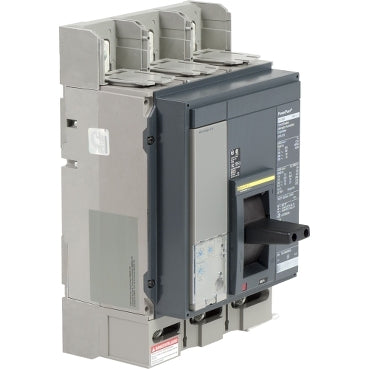

PJP36080CU31A
PJP36080CU31A is a Square D PowerPact P series circuit breaker designed for reliable power distribution protection.This 3 pole, 800 amp circuit breaker is rated for 600 volts AC and features a 35 kA interrupt rating at 600 VAC. It is a bolt-on type breaker suitable for industrial and commercial electrical panels, providing robust circuit protection with a durable molded case design.
- Manufacturer: Square D
- Series/Frame: PowerPact P
- Amperage: 800 Amp
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Interrupt Rating: 35 kA at 600 VAC
- Mounting Type: Bolt-On
- Trip Unit: Electronic
Specifications
- Part Number: PJP36080CU31A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : PJP
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : P Frame
- Protection : Solid State
Product Data
- UPC : 060648628571
- GTIN : 03606486285718
- Country of Origin : Mexico
- Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
- Weight : 32
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
