PJL36100U44A - Schneider Electric (Square D) 3-Pole 100 A 600 V AC Lug-Lug Circuit Breaker, PowerPact PJL

PJL36100U44A

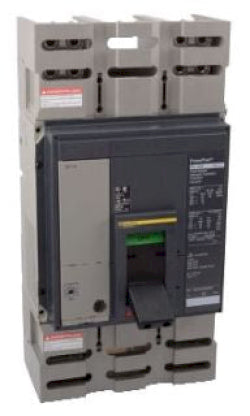

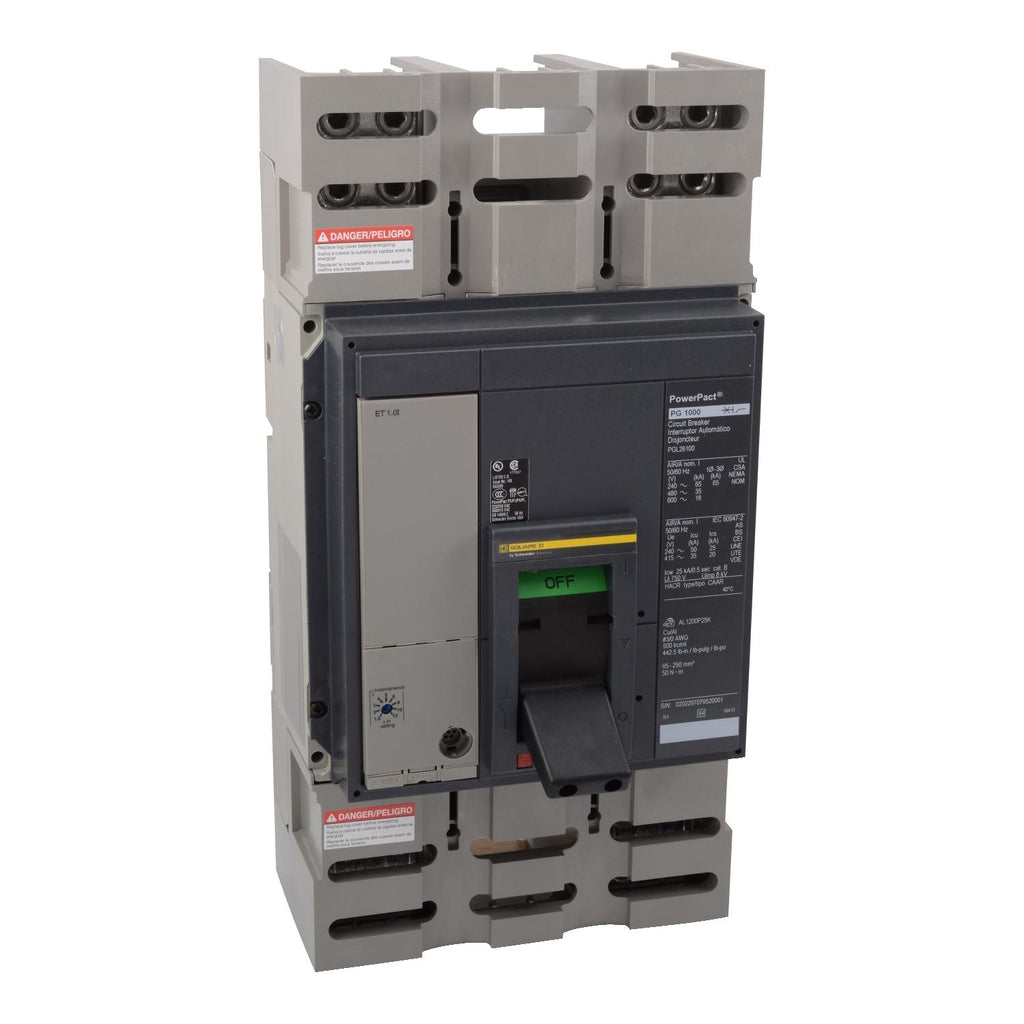

PJL36100U44A is a PowerPact P-frame molded case circuit breaker from Schneider Electric (Square D), rated 100 A, 3 poles, 600 V AC. It provides electronic protection with Micrologic 6.0A LSIG with ammeter (adds ground-fault). Line and load terminations use mechanical lugs (lug-lug) for straightforward panelboard or switchboard integration.

• Family: PowerPact P-Frame, Type PJL (lug-lug)
• Poles: 3 poles
• Amperage: 100 A
• Voltage: 600 Vac
• Trip unit: Micrologic 6.0A LSIG with ammeter (adds ground-fault)
• Certifications: UL 489 Listed, CSA Certified

Suffix meanings in this catalog number

• Factory configuration per suffix

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PJL36100U44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PJL
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : P Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901982630
• GTIN : 00785901982630
• Country of Origin : Mexico
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
