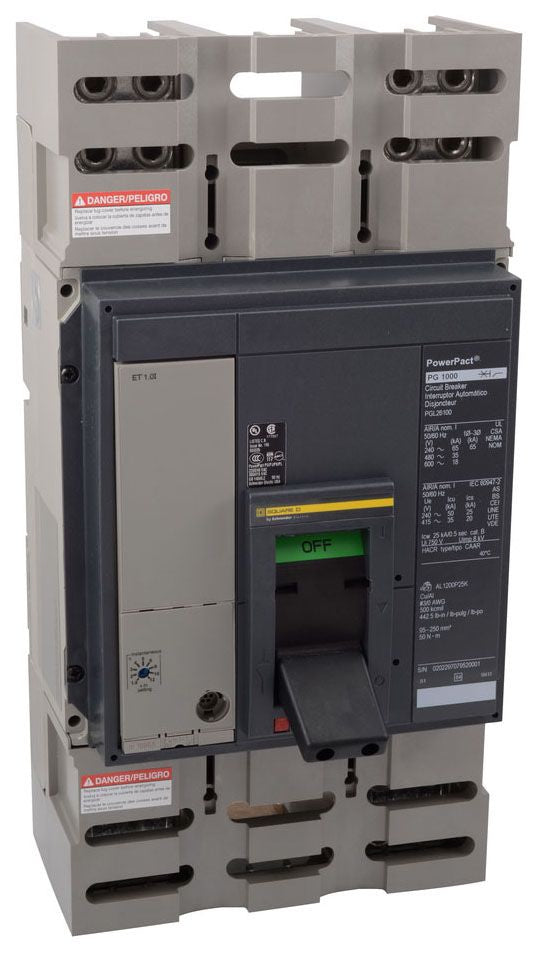

PJF36120 - Square D PowerPact P 1200A 3-Pole 600V Bolt-On Circuit Breaker

PJF36120

PJF36120 is a 3-pole, 600 volt, 1200 amp rated molded case circuit breaker manufactured by Square D in the PowerPact P series with bolt-on mounting. This circuit breaker features solid state electronic trip technology with long-time and instantaneous protection functions, delivering reliable performance in industrial and commercial power distribution applications. The unit is UL 489 listed and provides an interrupting capacity of 65kA at 480VAC and 25kA at 600VAC, making it suitable for demanding electrical systems requiring high breaking capacity.

• Part Number: PJF36120
• Manufacturer: Square D (Schneider Electric)
• Series: PowerPact P
• Poles: 3
• Amperage: 1200A
• Voltage: 600VAC
• Mounting: Bolt-On
• Trip Unit: Electronic, Solid State
• Trip Functions: Long-Time and Instantaneous (LI)
• Interrupt Rating: 65kA @ 480VAC, 25kA @ 600VAC
• Frame Type: P-Frame
• Certifications: UL 489, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: PJF36120
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PJF
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : P Frame
• Protection : Solid State

Product Data

• UPC : 762179036234
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
