Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
PJA36080CU64AE1

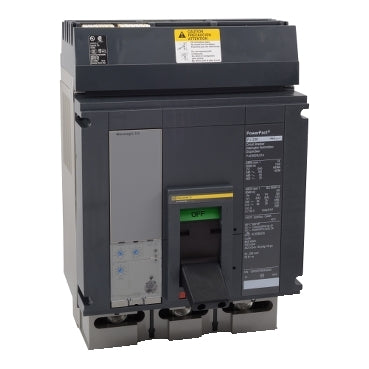

PJA36080CU64AE1 is a Schneider Electric PowerPacT P series molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.
This 3-pole, 800 amp circuit breaker operates at 600 volts AC and features a 25kA interrupting rating, making it suitable for demanding power distribution environments. It is part of the PowerPacT P frame family and is configured for I-Line plug-in mounting, ensuring easy installation and compatibility with standard panelboards. The breaker is UL 489 listed and carries additional global certifications for safety and performance.
-
Key Specifications
- Part Number: PJA36080CU64AE1
- Manufacturer: Schneider Electric
- Amperage: 800A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: I-Line Plug-In
- Interrupt Rating: 25kA at 600V AC
- Series/Frame: PowerPacT P
- Trip Unit: Not specified in available data
- Certifications: UL 489 Listed, additional global certifications (exact details not specified)
- Continuous Current Rating: 100% (per some sources; verify for your application)
- Application: Main panel disconnect, power distribution
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PJA36080CU64AE1
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : PJA
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : I-Line Style Plug-In
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Terminal Connection : AL800M23K
- Frame Size : P Frame
- Temp Rating : 13-158 °F (-25-70 °C)
- Protection : Solid State
Product Data
- UPC : 060648628539
- GTIN : 03606486285398
- Country of Origin : United States
- Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
- Weight : 32
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
