Product Info
- Manufacturer:Eaton
- Sub-Category:Breaker Type
Description
PINFB

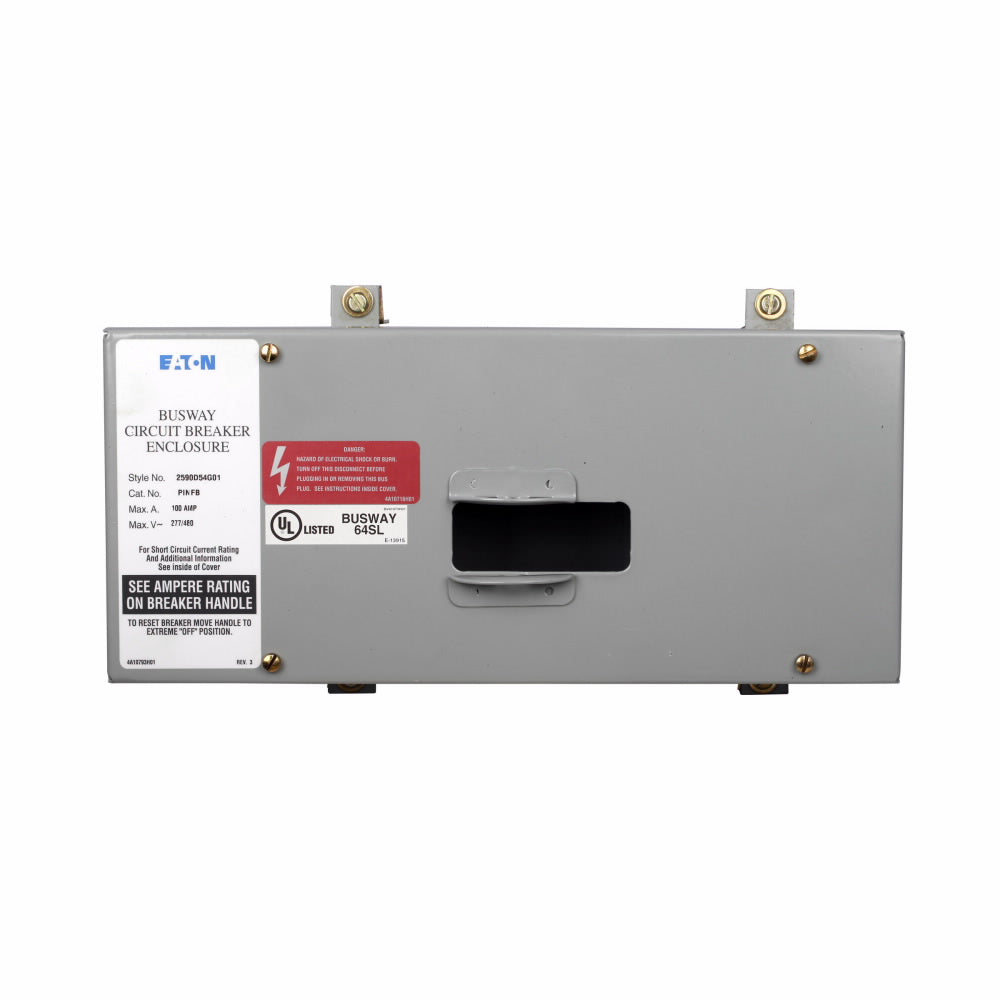

PINFB is a 100 amp, 600 volt, 3-pole bus plug designed by Eaton for reliable connection in busway systems.PINFB bus plugs are engineered to provide secure and efficient electrical distribution with a 3-phase, 3-wire configuration. This bus plug supports up to 100 amps and is rated for 600 volts, suitable for various industrial and commercial power distribution applications. It is UL-certified, ensuring compliance with safety and performance standards. The device accepts FB frame circuit breakers and features a 14kA interrupt rating at 480 volts, providing robust protection and operational reliability.
- Key Specifications
- Amperage: 100A
- Voltage: 600V
- Poles: 3
- Phase: 3-phase
- Interrupt Rating: 14kA at 480V
- Compatible with FB frame circuit breakers
- UL Certified
Specifications
- Part Number: PINFB
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : 100AMP Busway
- Type : PINFB
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 14kA@480V
- Wire : 3
- Compatible Frames : FB
Product Data
- UPC : 786683180405
- Country of Origin : United States
- Weight : 40
- Certification : ANSI,CSA Certified,IEEE Certified,UL 857,NEMA Compliant
