Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PHJ36015G

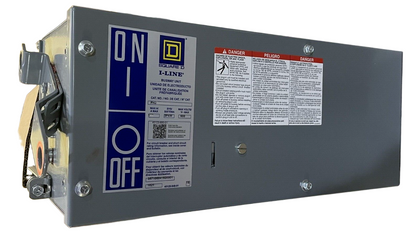

PHJ36015G is a Square D 15A 600V 3 pole breaker type bus plug designed for reliable power distribution in industrial and commercial applications. This bus plug features a molded case circuit breaker for safe and efficient operation. The PHJ36015G is engineered for use with 3 phase 3 wire busway systems, providing a robust solution for connecting loads to busway runs. It is equipped with a thermal magnetic trip unit for overload and short circuit protection. The plug is designed for easy installation and secure mounting to compatible busway systems.
- Part Number: PHJ36015G
- Manufacturer: Square D
- Amperage: 15A
- Voltage: 600V
- Poles: 3
- Mounting Type: Busway Plug-In
- Interrupt Rating: 65kAIC at 480V
- Series/Frame: PHJ
- Trip Unit: Thermal Magnetic
- Certifications: UL 857, CSA C22.2
Specifications
- Part Number: PHJ36015G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PHJ
- Voltage : 600
- Amperage : 15
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : H
- Wire : 3
- Compatible Frames : HJP
Product Data
- UPC : 001508208287
- Dimensions : Height 8.50 in (216 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 32
- Certification : UL listed file E22182 - CSA C22.2 No 27
