Description
PHG36125GN

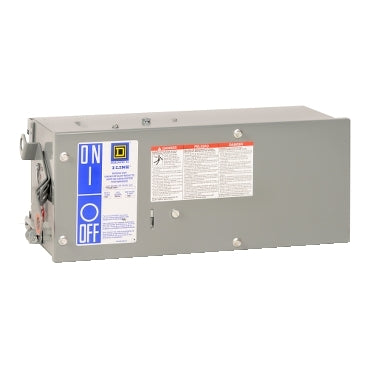

PHG36125GN is a Square D 125 Amp, 600 Volt, 3-phase 4-wire I-Line bus plug designed for reliable power distribution.This bus plug features a breaker-type design compatible with Square D I-Line busway systems. It is rated for 125 Amps continuous current and 600 Volts AC, supporting three-phase four-wire configurations. The unit includes an H-frame breaker with a thermal magnetic trip unit and a plug-in mounting type for easy installation. It provides an interrupting rating of 18kA at 600V and is mercury-free.
- Key Specifications
- Amperage: 125 Amps
- Voltage: 600 Volts AC
- Phases: 3-Phase
- Wires: 4-Wire (including ground)
- Mounting Type: Plug-in
- Breaker Frame: H-Frame
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 18kA at 600V
- Series: I-Line
- Mercury Free
- Part Number: PHG36125GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PHG
- Voltage : 600
- Amperage : 125
- Phase : 3
- AIC rating : 35kA@480V
- Wire : 4
- Compatible Frames : HGP
- Dimensions : Depth 17.56 in (446 mm) Width 23.50 in (597 mm) Height 74.49 in (1892 mm)
- Weight : 32
