- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PHG36090GN

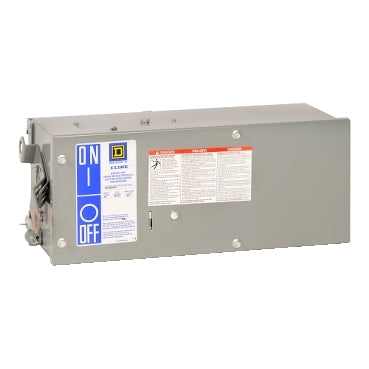

PHG36090GN is a Square D I-Line bus plug designed for 90 ampere, 600 volt applications with a 3 phase, 4 wire configuration including ground and neutral.
This plug-in unit features an H-frame breaker style suitable for I-Line busway systems, providing reliable circuit protection and connection. It supports a maximum voltage of 600 VAC and an interrupt rating of 18kA, ensuring safe operation in industrial and commercial power distribution setups. The unit is designed for plug-in mounting to facilitate easy installation and maintenance.
- Amperage: 90 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Wires: 4 (including ground and neutral)
- Mounting Type: Plug-in
- Interrupt Rating: 18kA
- Series/Frame: I-Line H-frame
- Phase: 3 Phase
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PHG36090GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PHG
- Voltage : 600
- Amperage : 90
- Phase : 3
- AIC rating : 35kA@480V
- Wire : 4
- Compatible Frames : HGP
Product Data
- UPC : 606487115888
- GTIN : 03606490000000
- Dimensions : Depth 17.55 in (445.77 mm) Width 22 in (558.80 mm) Height 74.5 in (1892.30 mm)
- Weight : 32
