Description
PHG36080GN

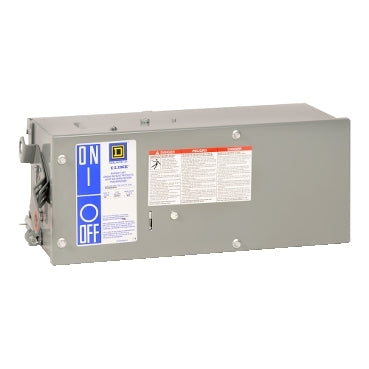

PHG36080GN is a Square D 80 Amp 3 pole bus plug rated for 600 Volt AC service in I-Line busway systems. This plug-in unit is designed for industrial power distribution applications requiring reliable connection to busway infrastructure. PHG36080GN features a 4-wire configuration with ground and neutral conductors, making it suitable for 3-phase 4-wire power systems. The unit is constructed as an H-frame electronic trip circuit breaker busway plug-in assembly.
- Amperage Rating: 80 Amps
- Voltage Rating: 600 Volts AC
- Poles: 3 Phase
- Wires: 4 Wire with Ground and Neutral
- Frame Type: H-Frame
- Trip Unit: Electronic Trip
- Busway Series: I-Line
- Interrupting Rating: 35kA at 480V
- Mounting: Plug-In Unit for Busway
Specifications
- Part Number: PHG36080GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PHG
- Voltage : 600
- Amperage : 80
- Phase : 3
- AIC rating : 35kA@480V
- Wire : 4
- Compatible Frames : HGP
Product Data
- Dimensions : Depth 17 in (431.80 mm) Width 36 in (914.40 mm) Height 90 in (2286.00 mm)
- Weight : 32
