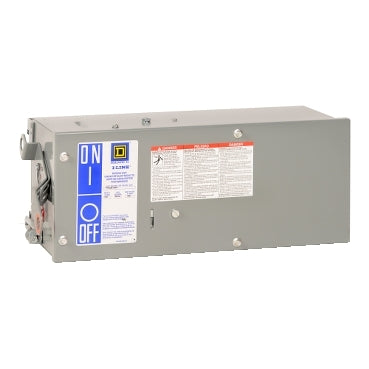

PHG36030GN - Square D 30A 600V 3-Pole 4-Wire I-Line Bus Plug

PHG36030GN

PHG36030GN is a Square D 30 Amp, 600 Volt, 3-pole, 4-wire I-Line bus plug designed for busway systems.This breaker-type bus plug is part of the Square D I-Line series, compatible with H-frame circuit breakers, and rated for 30 Amps continuous current at 600 VAC. It features a D interrupting trip rating and includes ground and neutral connections. The unit is UL listed and CSA certified, suitable for 3-phase power distribution in industrial and commercial applications.

• Amperage: 30 Amps
• Voltage: 600 Volts AC
• Poles: 3
• Wires: 4 (3-phase plus neutral)
• Series: I-Line
• Interrupt Rating: D trip rating
• Mounting Type: Plug-in busway unit
• Includes ground and neutral
• Certifications: UL listed, CSA certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PHG36030GN
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Breaker Type
• Family : I-Line
• Type : PHG
• Voltage : 600
• Amperage : 30
• Phase : 3
• AIC rating : 35kA@480V
• Fuse Class : H
• Wire : 4
• Compatible Frames : HGP

Product Data

• Dimensions : Height 8.50 in (216 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 32
• Certification : CSA C22.2 No 27 - UL listed file E22182
