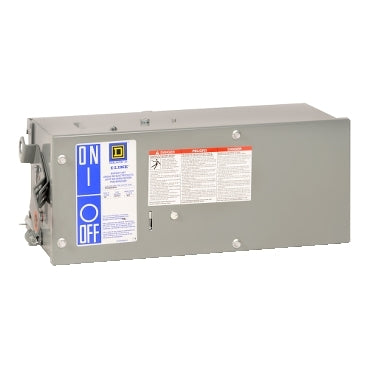

PHG36030G - Schneider Electric 30A 600V 3-Phase Bus Plug I-Line H-Frame

PHG36030G

PHG36030G is a Schneider Electric 30 Amp, 600 Volt, 3-Phase bus plug designed for I-Line busway systems with an H-frame breaker.

This plug-in unit features a thermal magnetic circuit breaker with a 3-pole configuration and a 3-wire system. It offers an 18kA interrupting rating at 600VAC, suitable for reliable protection in industrial and commercial power distribution applications. The unit is compatible with I-Line busway and includes a ground connection feature for safety. It meets UL and CSA certifications, ensuring compliance with industry standards.

• Amperage: 30 Amps
• Voltage: 600 VAC
• Phase: 3-Phase
• Poles: 3
• Mounting Type: Plug-in for I-Line Busway
• Interrupt Rating: 18kA at 600VAC
• Breaker Frame: H-Frame
• Trip Unit: Thermal Magnetic
• Wire Configuration: 3-Wire
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PHG36030G
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Bus Plug Part
• Family : I-Line
• Type : PHG
• Voltage : 600
• Amperage : 30
• Phase : 3
• AIC rating : 35kA@480V
• Fuse Class : H
• Wire : 3

Product Data

• Dimensions : Height 8.50 in (216 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 32.01
• Certification : CSA C22.2 No 27 - UL listed file E22182
