Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
PHF3616001386

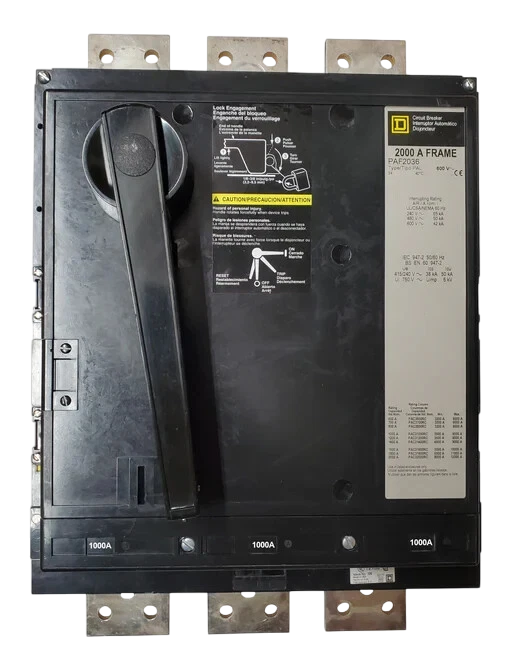

PHF3616001386 is a Square D PHF Series 1600A, 600V, 3 pole molded case circuit breaker with 24VDC shunt trip and auxiliary switch. This breaker features a 2000A frame, 1600A trip rating, and is manually operated with fixed mount. It is designed for high interrupting applications, rated at 100kA at 480V, and is suitable for industrial and commercial power distribution systems.
- Part Number: PHF3616001386
- Manufacturer: Square D
- Series/Frame: PHF Series
- Amperage: 1600A (2000A Frame)
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Fixed Mount (F/M)
- Interrupt Rating: 100kA @ 480V
- Shunt Trip: 24VDC
- Auxiliary Switch: Included
- Operation: Manual
- Application: Molded Case Circuit Breaker (MCCB)
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: PHF3616001386
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : PHF Series
- Type : PHF
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : P Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 762179022459
- Weight : 90
