Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PHD36150GN

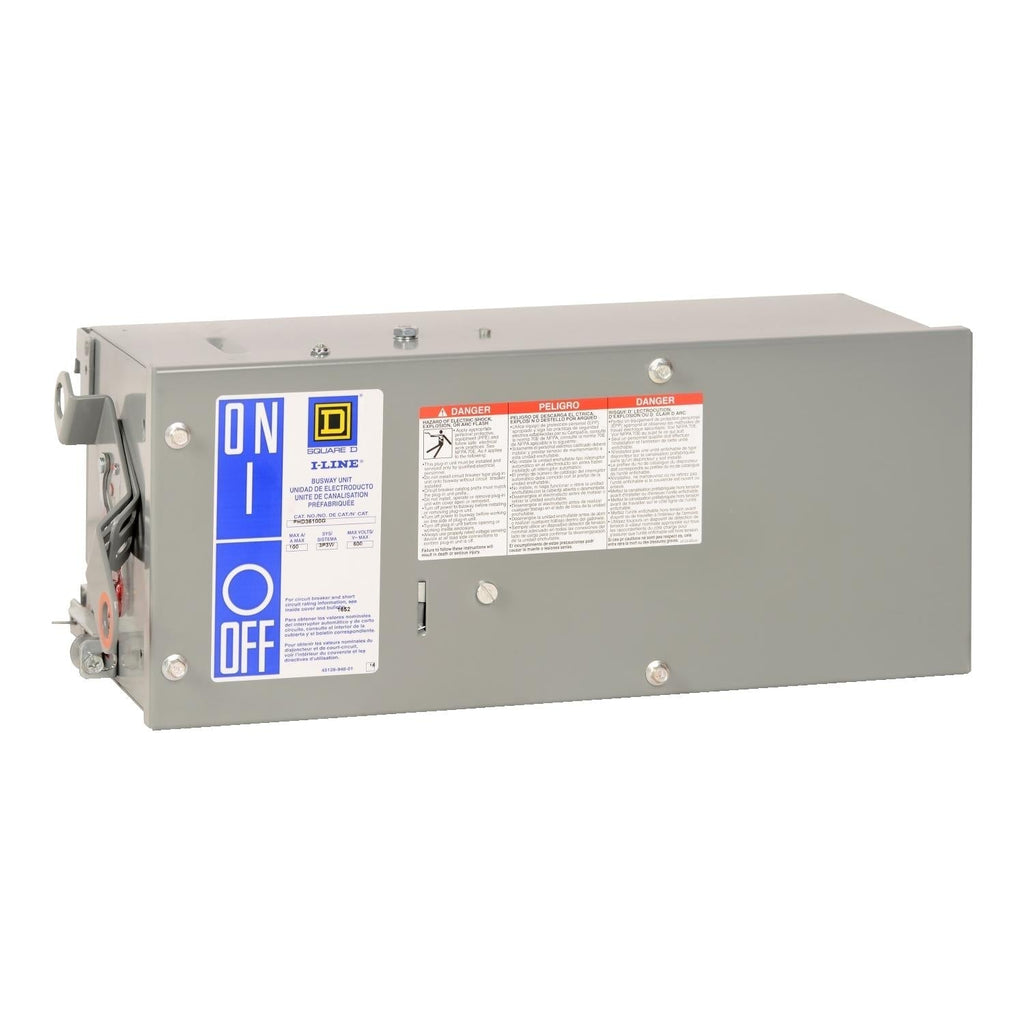

PHD36150GN is a Square D breaker type bus plug designed for 150 Amp, 600 Volt, 3 phase, 4 wire busway systems with ground and neutral.This I-Line H frame bus plug features a thermal magnetic circuit breaker with a 14kA interrupting rating, compatible with Square D I-Line busway systems.
- Amperage: 150 Amps
- Voltage: 277/480/600 VAC
- Poles: 3
- Wiring: 4 Wire with Ground and Neutral
- Frame Type: H Frame (I-Line)
- Interrupt Rating: 14kA
- Mounting Type: Plug-in Unit
- Breaker Type: Thermal Magnetic Circuit Breaker
- Compatible Busway: Square D I-Line
- Certifications: UL Listed, CSA Certified
- Dimensions: Approx. 20.3" H x 8.5" W x 8" D
- Country of Origin: USA
Specifications
- Part Number: PHD36150GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PHD
- Voltage : 277/480/600 AC
- Amperage : 150
- Phase : 3
- AIC rating : 18kA@480V
- Fuse Class : H
- Wire : 4
- Compatible Frames : HDP
Product Data
- UPC : 60648711587
- GTIN : 03606487115878
- Country of Origin : United States
- Dimensions : 8-1/2 in x 20-21/64 in
- Weight : 32.01 lb
- Certification : CSA Certified, UL Listed
