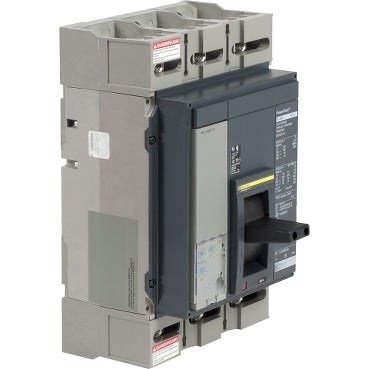

PGL36080U31A - Square D PowerPact P Frame 800A 3 Pole Circuit Breaker 600VAC Micrologic 3.0

PGL36080U31A

PGL36080U31A is a Square D PowerPact P Frame 3 Pole molded case circuit breaker with 800A current rating and 600VAC voltage rating, featuring Micrologic 3.0 trip unit and unit mount design. This circuit breaker is designed for reliable protection in industrial and commercial power distribution systems. It offers a robust 18kA interrupt rating at 600VAC, UL 489 and CSA certification, and compatibility with both aluminum and copper wiring. The unit is suitable for use as a main panel disconnect in control panels and provides consistent performance with a solid-state electronic trip unit.

• Part Number: PGL36080U31A
• Manufacturer: Square D
• Series/Frame: PowerPact P Frame
• Poles: 3 Pole
• Amperage: 800A
• Voltage: 600VAC
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA @ 600VAC
• Breaker Type: Molded Case
• Tripping Unit: Micrologic 3.0
• Certifications: UL 489, CSA
• Wire Compatibility: Aluminum/Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs included AL800M23K

Specifications

• Part Number: PGL36080U31A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901502036
• GTIN : 00785901502036
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32.01 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
