PGL36080CU44A - Square D PowerPact P-Frame Molded Case Circuit Breaker 800A 600V 3 Pole Electronic Trip Unit UL 489 Listed

PGL36080CU44A

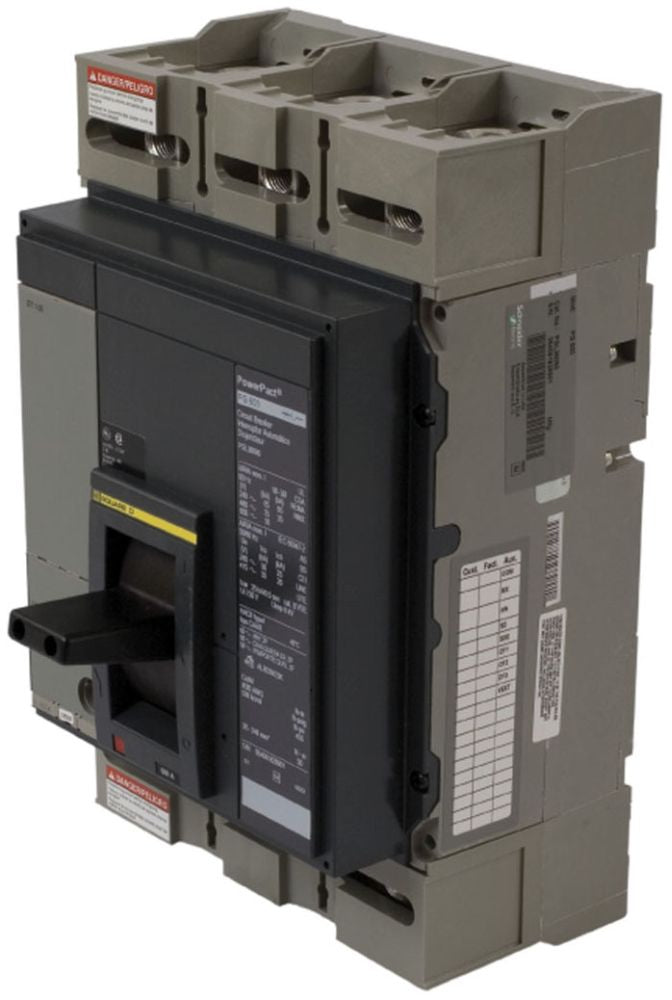

PGL36080CU44A is a Square D PowerPact P-Frame molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This three-pole circuit breaker features an 800A amperage rating, 600V maximum voltage, and is equipped with an electronic trip unit for precise protection. It is UL 489 listed, ensuring compliance with industry safety standards, and offers a high interrupting rating for reliable performance in demanding environments.

Key Specifications
• Amperage: 800A
• Voltage: 600V
• Poles: 3
• Mounting Type: Unit mount
• Interrupt Rating: 35 kA at 480V (18 kA at 600V per some listings; confirm for your application)
• Series/Frame: PowerPact P-Frame
• Trip Unit: Electronic (Micrologic)
• Certifications: UL 489 Listed
• Termination: Lugs both ends
• Continuous Rating: 100%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs included AL800M23K

Specifications

• Part Number: PGL36080CU44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : P Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901326304
• GTIN : 00785901326304
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
