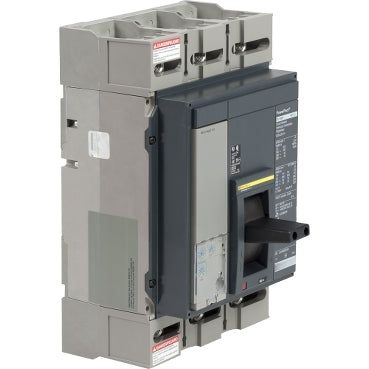

PGL36080CU33A - Square D 800A 600VAC 3 Pole PowerPact P Molded Case Circuit Breaker with Micrologic 5.0 Trip Unit

PGL36080CU33A

PGL36080CU33A is a Square D PowerPact P molded case circuit breaker designed for reliable overload and short circuit protection in industrial applications.This 3 pole circuit breaker features an 800 ampere rating and 600 VAC voltage rating. It includes an electronic Micrologic 5.0 LSI trip unit for precise trip settings and enhanced protection. The breaker has a P frame with a bolt-on/unit mount design and line/load lug connections supporting 3/0 AWG to 500 kcmil aluminum and 3 AWG copper wire. It meets UL 489, CSA, and IEC certifications and offers interrupt ratings of 65 kA at 240 VAC, 35 kA at 480 VAC, and 18 kA at 600 VAC. Dimensions are approximately 8.1 in L x 8.3 in W x 16.2 in H.

Key Specifications
• Amperage: 800 A
• Voltage: 600 VAC
• Poles: 3
• Frame/Series: PowerPact P
• Trip Unit: Electronic Micrologic 5.0 LSI
• Interrupt Rating: 65 kA @ 240 VAC, 35 kA @ 480 VAC, 18 kA @ 600 VAC
• Mounting Type: Bolt-On/Unit Mount
• Wire Size: 3/0 AWG to 500 kcmil Al, 3 AWG Cu
• Certifications: UL 489, CSA, IEC
• Dimensions: 8.1 in L x 8.3 in W x 16.2 in H
• Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Lugs included AL800M23K




Specifications

• Part Number: PGL36080CU33A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State



Product Data

• UPC : 785901852391
• GTIN : 00785901852391
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
