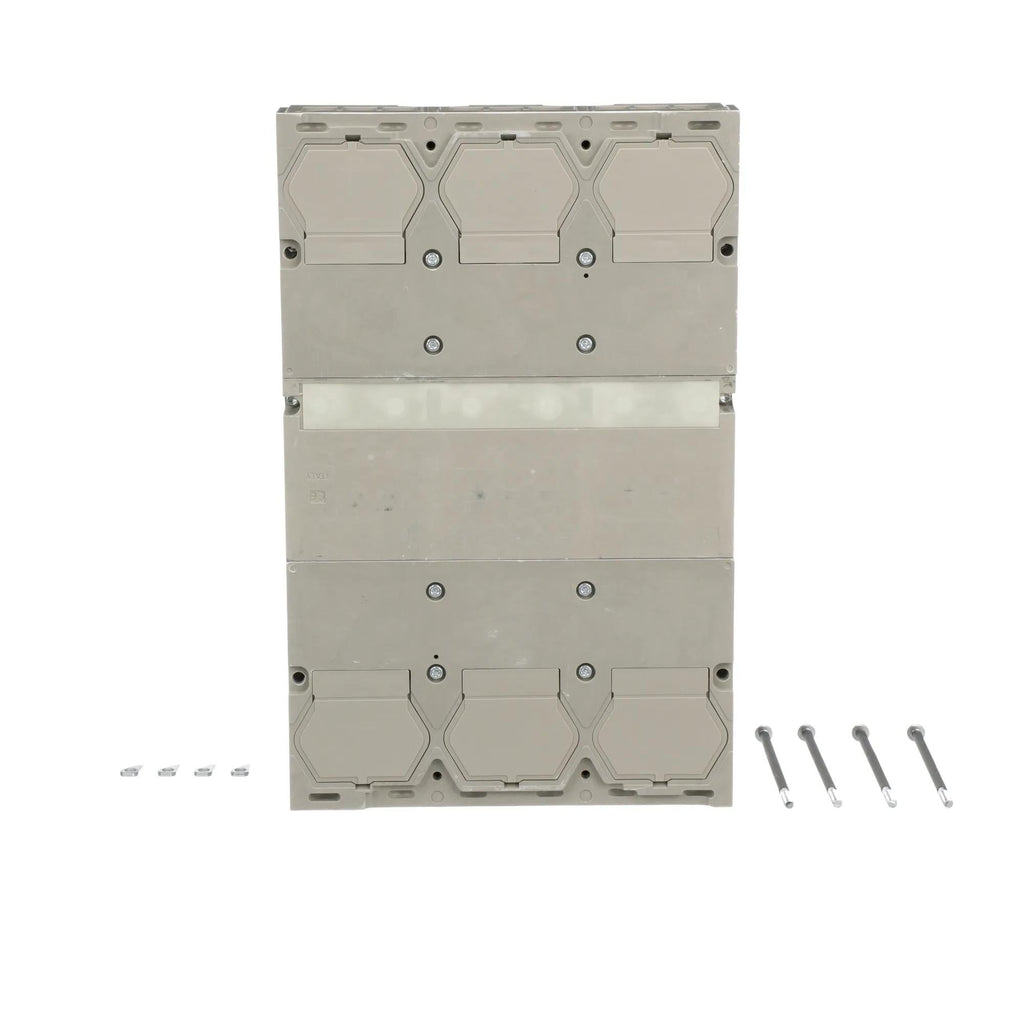

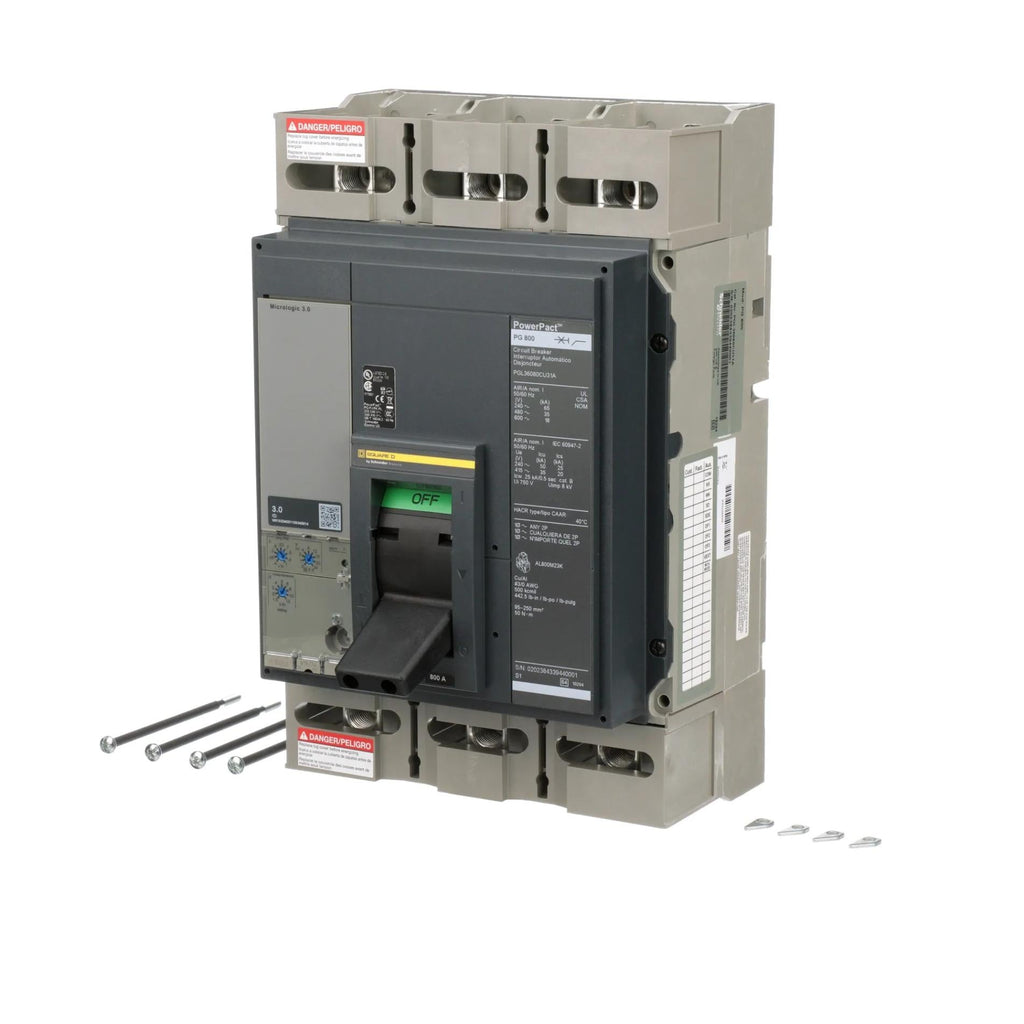

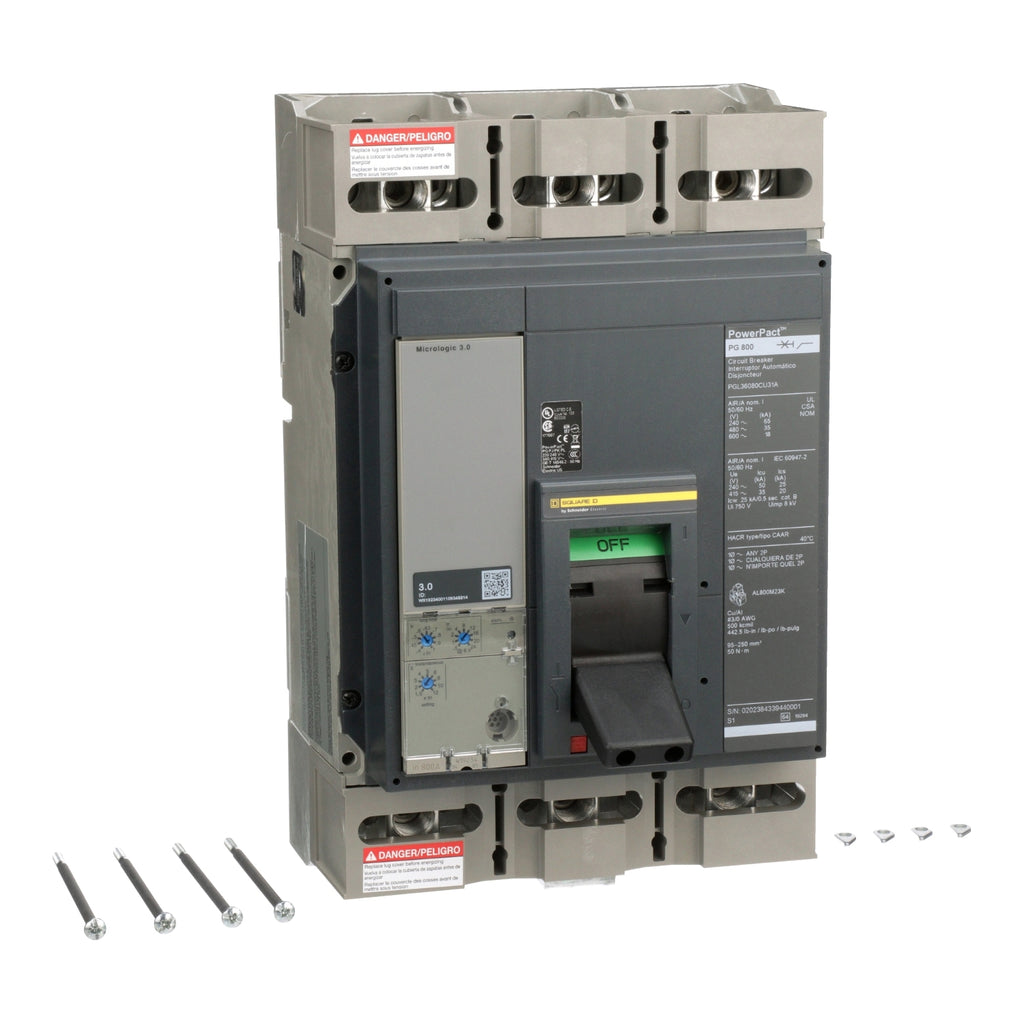

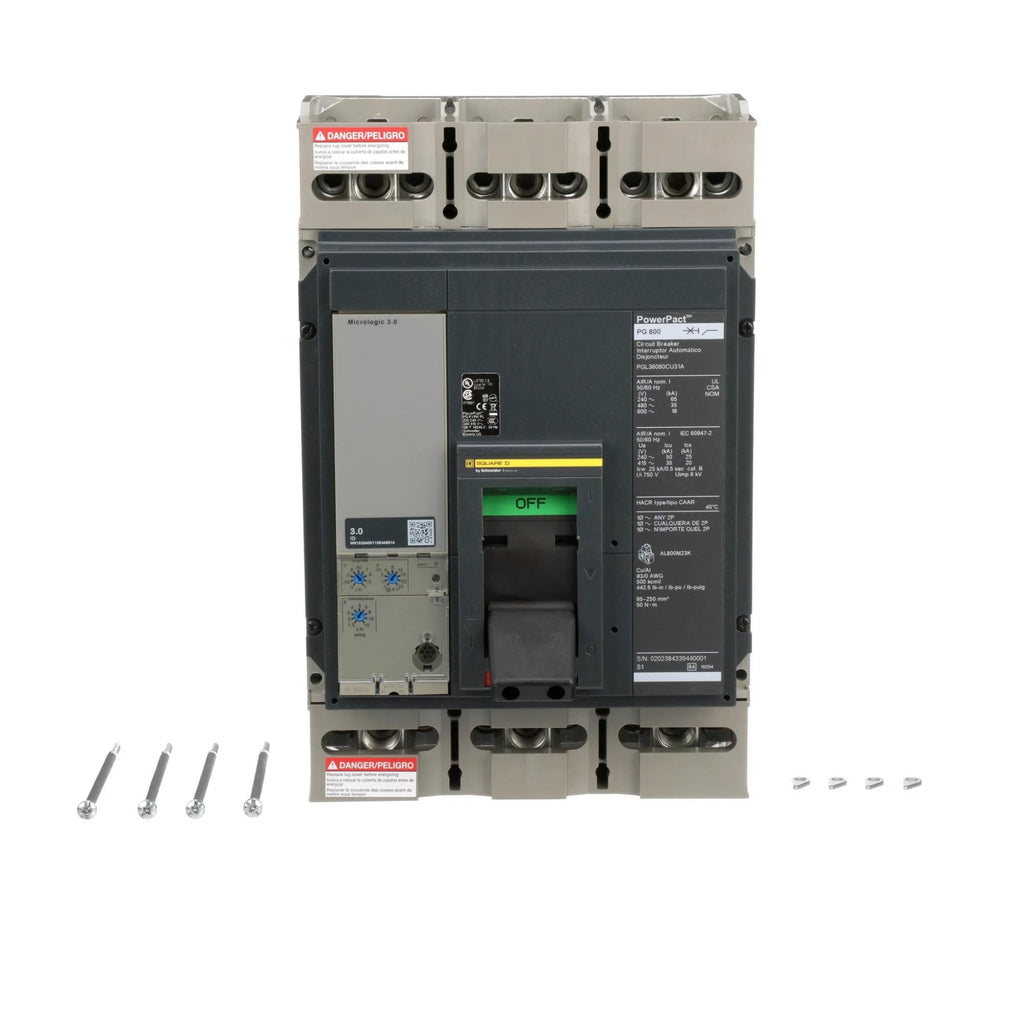

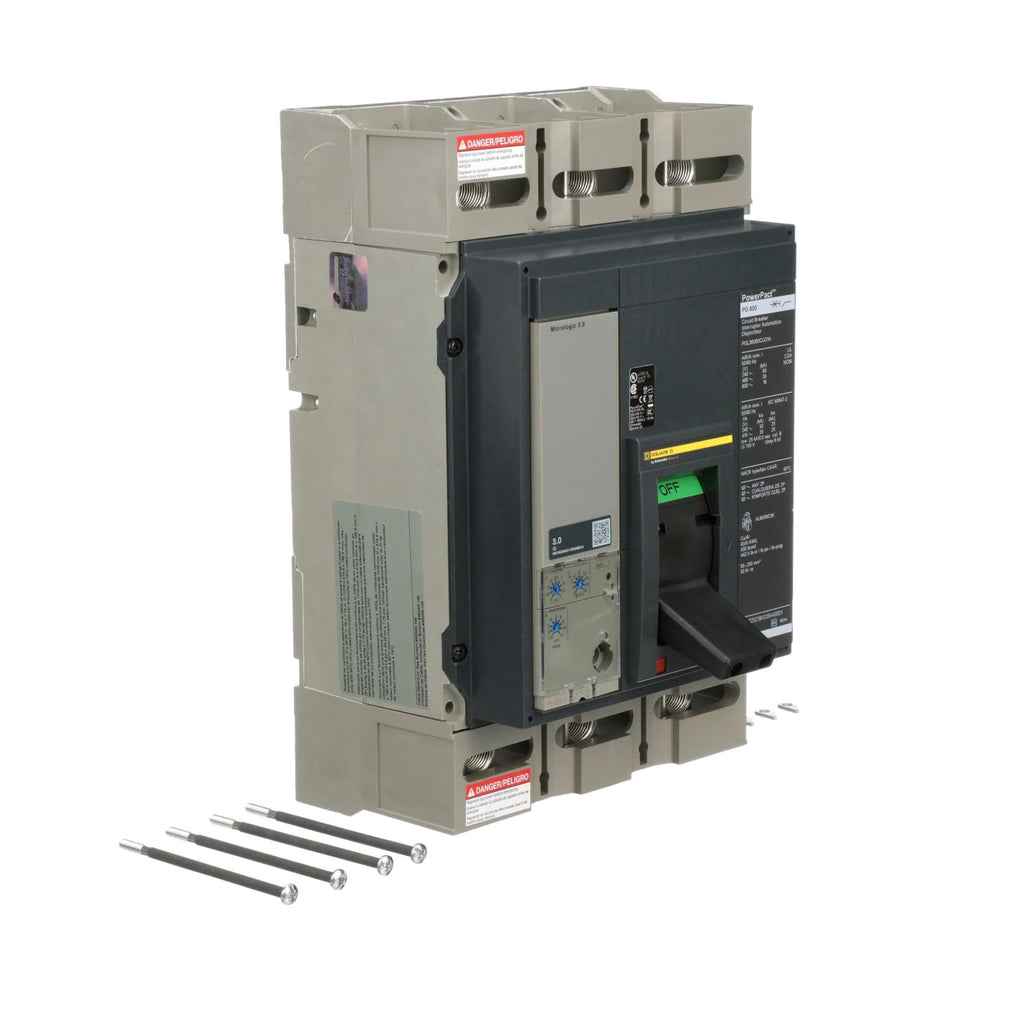

PGL36080CU31A - Square D 800 Amp 600 VAC 3 Pole P Frame Molded Case Circuit Breaker G Interrupt Rating

PGL36080CU31A

PGL36080CU31A is a Square D 800 Amp, 3 Pole molded case circuit breaker designed for reliable power distribution and protection.This circuit breaker features a P Frame design suitable for unit mount applications, with a maximum voltage rating of 600 VAC. It offers a G interrupt rating, ensuring high interrupting capacity for industrial and commercial electrical systems. The breaker is UL 489 listed and CSA certified, providing compliance with safety standards. It is engineered for continuous current rating at 100% and is part of the PowerPacT P series, known for robust performance and durability.

• Amperage: 800 Amp
• Voltage Rating: 600 VAC
• Poles: 3 Pole
• Frame Type: P Frame
• Interrupt Rating: G Interrupt Rating
• Mounting Type: Unit Mount
• UL 489 Listed
• CSA Certified
• Continuous Current Rating: 100%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs included AL800M23K

Specifications

• Part Number: PGL36080CU31A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901536567
• GTIN : 00785901536567
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 34.359
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
