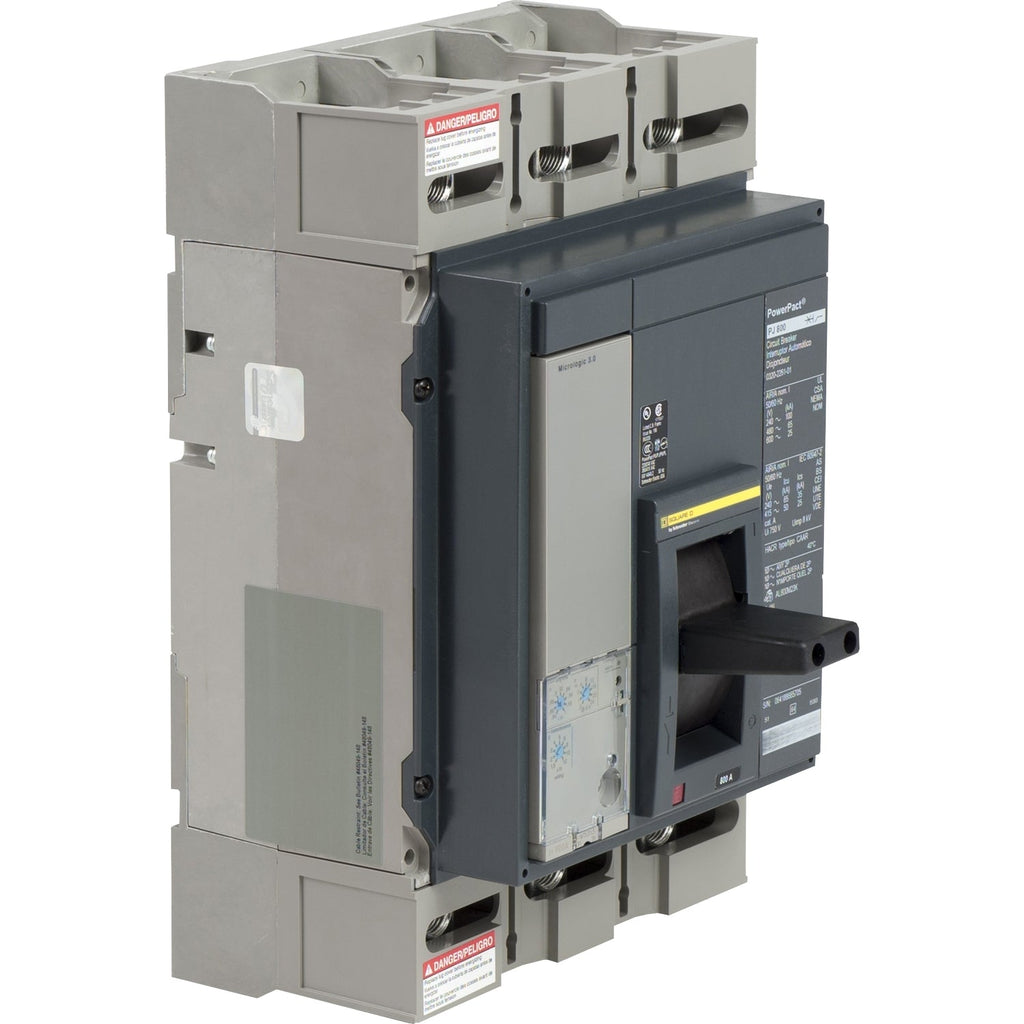

PGL36040U33A - Square D 400A 600V 3-Pole Powerpact Molded Case Circuit Breaker

PGL36040U33A

PGL36040U33A is a 400 Amp, 600 Volt, 3-pole molded case circuit breaker from Square D's Powerpact series.This circuit breaker features a solid state trip unit designed for reliable protection in industrial and commercial power distribution applications. It supports 3-phase systems and offers a 35kA interrupt rating at 480V, ensuring high fault current interruption capability. The breaker is UL, CSA, and NOM certified, meeting stringent safety and performance standards.

• Amperage: 400A
• Voltage: 600VAC
• Poles: 3
• Series/Frame: Powerpact
• Interrupt Rating: 35kA at 480V
• Trip Unit: Solid State
• Certifications: UL, CSA, NOM
• Mounting Type: Molded Case
• Phase: 3
• Weight: Approximately 32 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs included AL800M23K

Specifications

• Part Number: PGL36040U33A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901084853
• GTIN : 00785901084853
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
