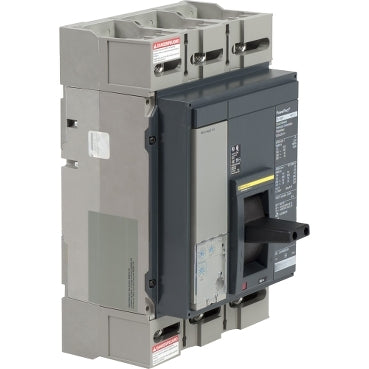

PGL36025U33A - Square D PowerPact P-Frame 250A 600V 3-Pole Molded Case Circuit Breaker

PGL36025U33A

PGL36025U33A is a Square D PowerPact P-Frame molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This unit features a 250A current rating, 600V AC maximum voltage, and three poles for versatile installation options. Engineered for durability and safety, the PGL36025U33A offers electronic trip technology and is suitable for unit mount applications. It is UL 489 and CSA listed, ensuring compliance with industry standards for circuit protection. The breaker is part of the PowerPact P-Frame series, known for robust performance and high interrupt ratings.

• Part Number: PGL36025U33A
• Manufacturer: Square D / Schneider Electric
• Series/Frame: PowerPact P-Frame
• Amperage: 250A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC
• Trip Unit: Electronic Trip
• Certifications: UL 489, CSA
• Product Type: Molded Case Circuit Breaker
• Application: Industrial & Commercial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs included AL800M23K

Specifications

• Part Number: PGL36025U33A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901622079
• GTIN : 00785901622079
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
