PGL36025U31A - Square D PowerPact P 250A 3-Pole 600V Circuit Breaker

PGL36025U31A

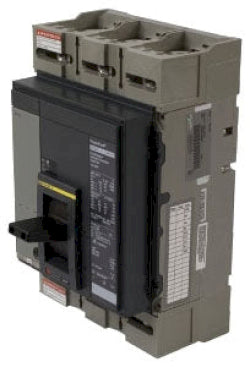

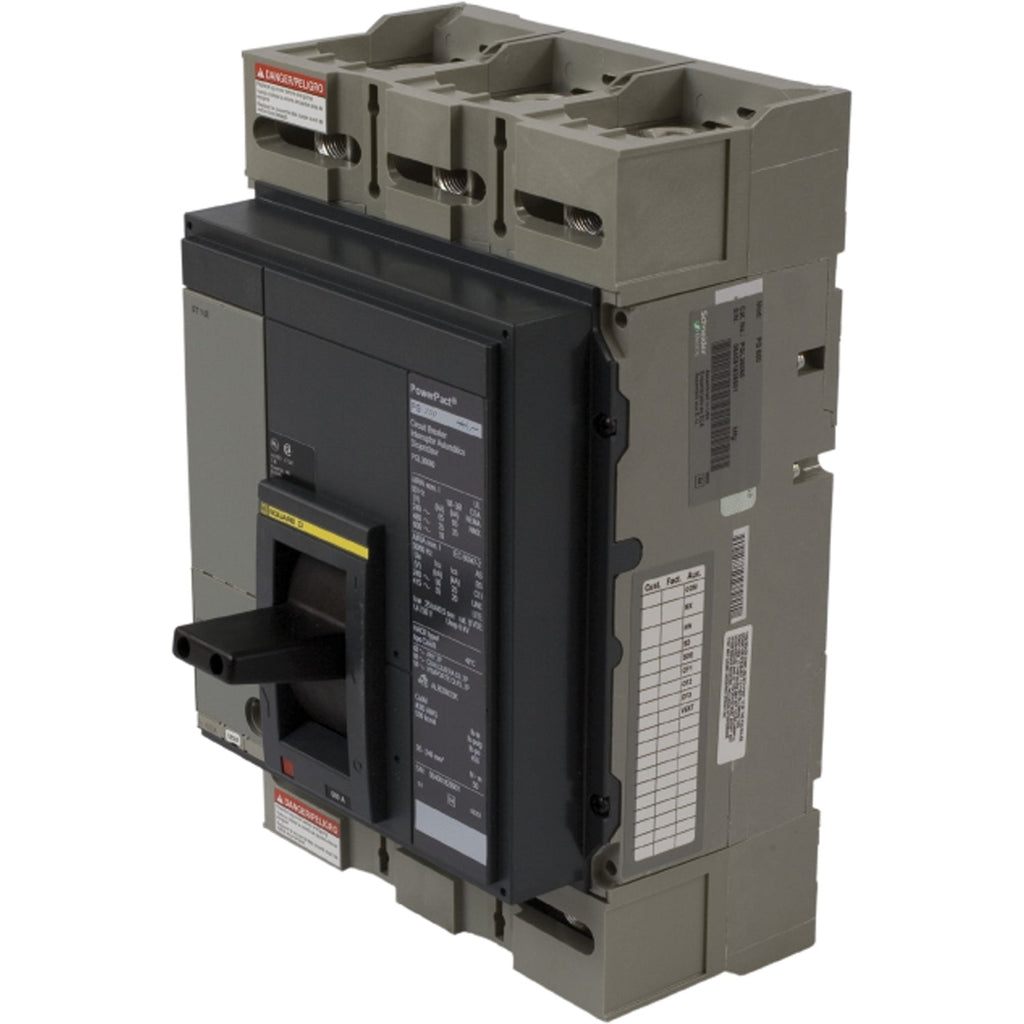

PGL36025U31A is a molded case circuit breaker from Square D, part of the PowerPact P family, designed for industrial and commercial power distribution applications.PGL36025U31A is a molded case circuit breaker from Square D, part of the PowerPact P family, designed for industrial and commercial power distribution applications. This three-pole breaker features electronic trip technology and is rated for 250 amperes at 600 volts AC maximum. The unit measures 8.27 inches wide by 8.05 inches deep by 16.16 inches high and includes feed-thru capability for streamlined panel integration. It carries UL and CSA approvals and is suitable for standard interrupting capacity applications.

• Amperage Rating: 250 Amp
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Amps: 1200
• Trip Type: Electronic
• Interrupt Rating: 35 kA at 480 VAC
• Interrupt Rating: 65 kA at 240 VAC
• Interrupt Rating: 18 kA at 600 VAC
• Mounting Type: Molded Case Feed-Thru
• Series: PowerPact P
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs included AL800M23K

Specifications

• Part Number: PGL36025U31A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : P Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 078590162195
• GTIN : 00785901621959
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
