Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
PGF36120U31A

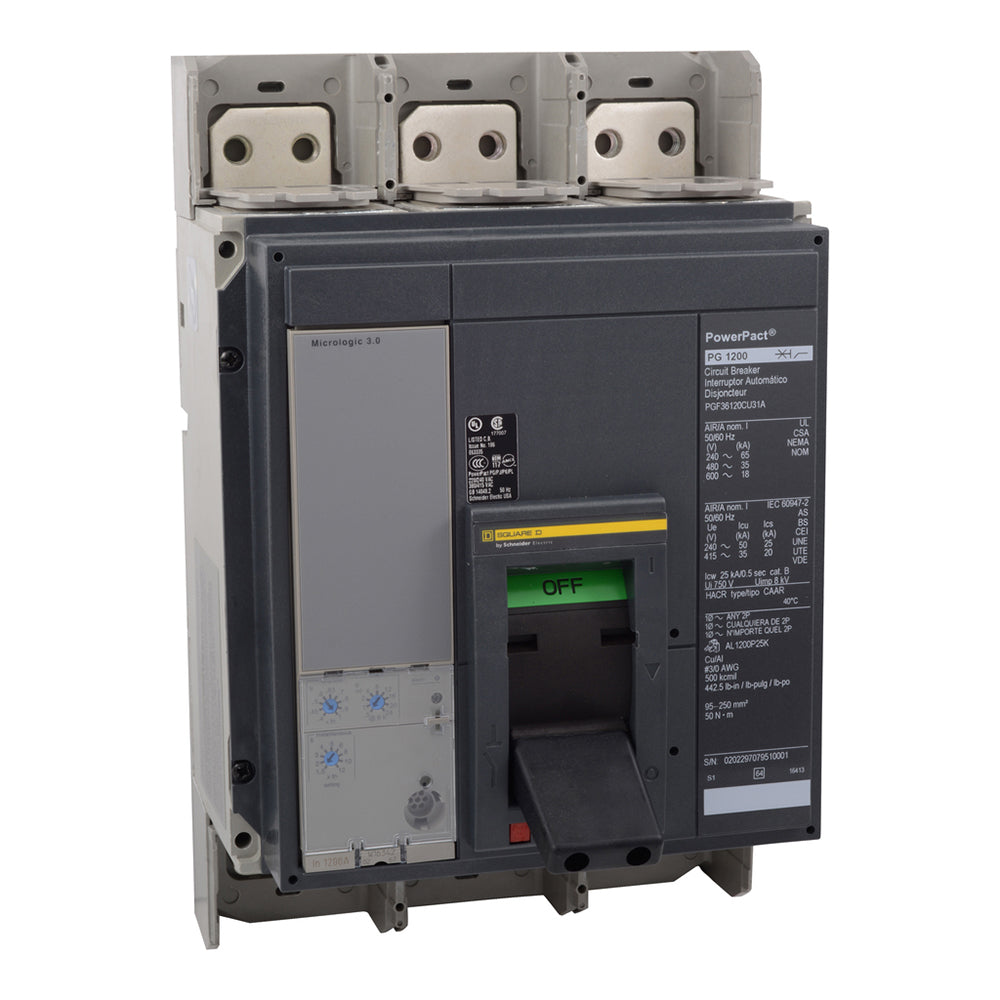

PGF36120U31A is a Square D PowerPact PGF series three pole, 1200 amp, 600 volt bolt-on molded case circuit breaker.
This circuit breaker features a Micrologic 3.0 interchangeable trip unit with Long-Time and Instantaneous trip functions, and is designed for reliable protection in demanding commercial and industrial applications.
-
Key Specifications
- Amperage: 1200A
- Voltage: 600V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 35kA at 480V
- Series/Frame: PowerPact PGF
- Trip Unit: Micrologic 3.0 (LI)
- Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: PGF36120U31A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 785901618744
- GTIN : 785901618744
- Country of Origin : United States
- Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
- Weight : 35.001
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
