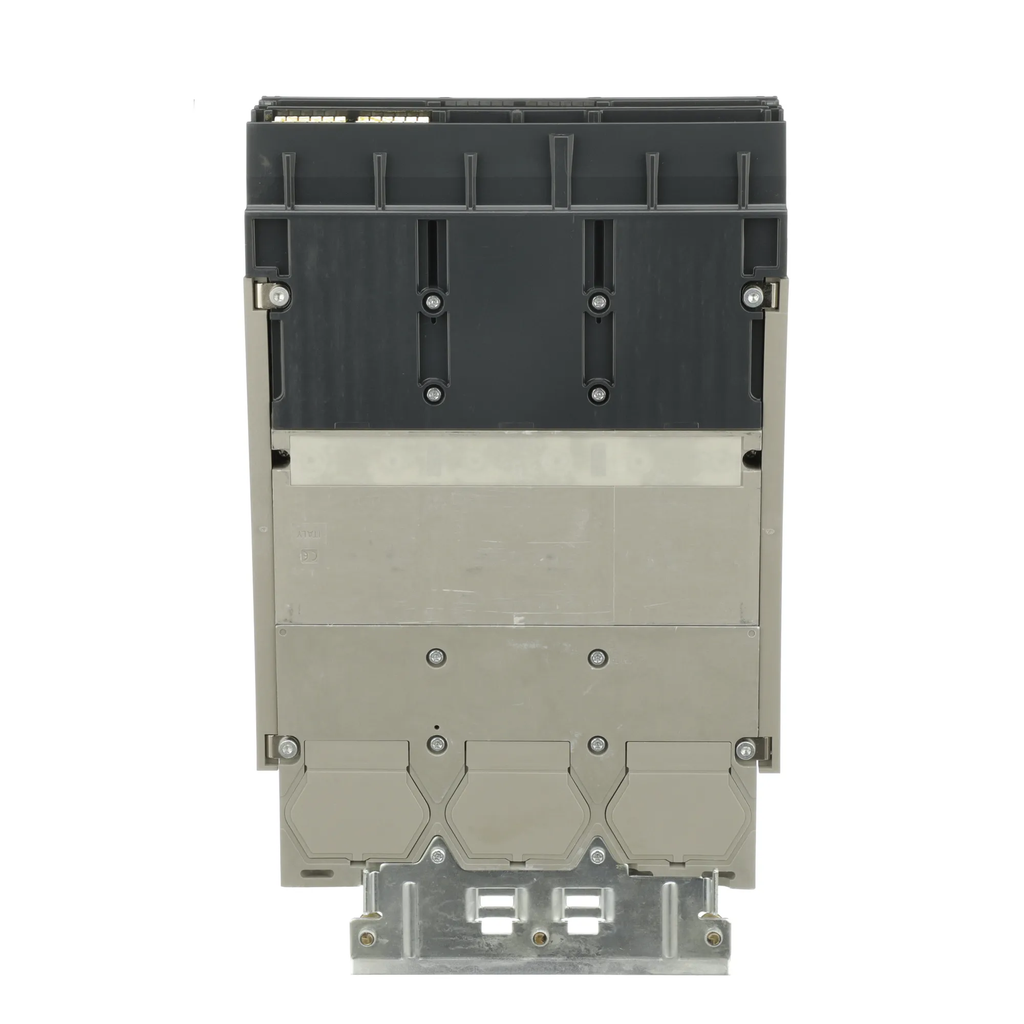

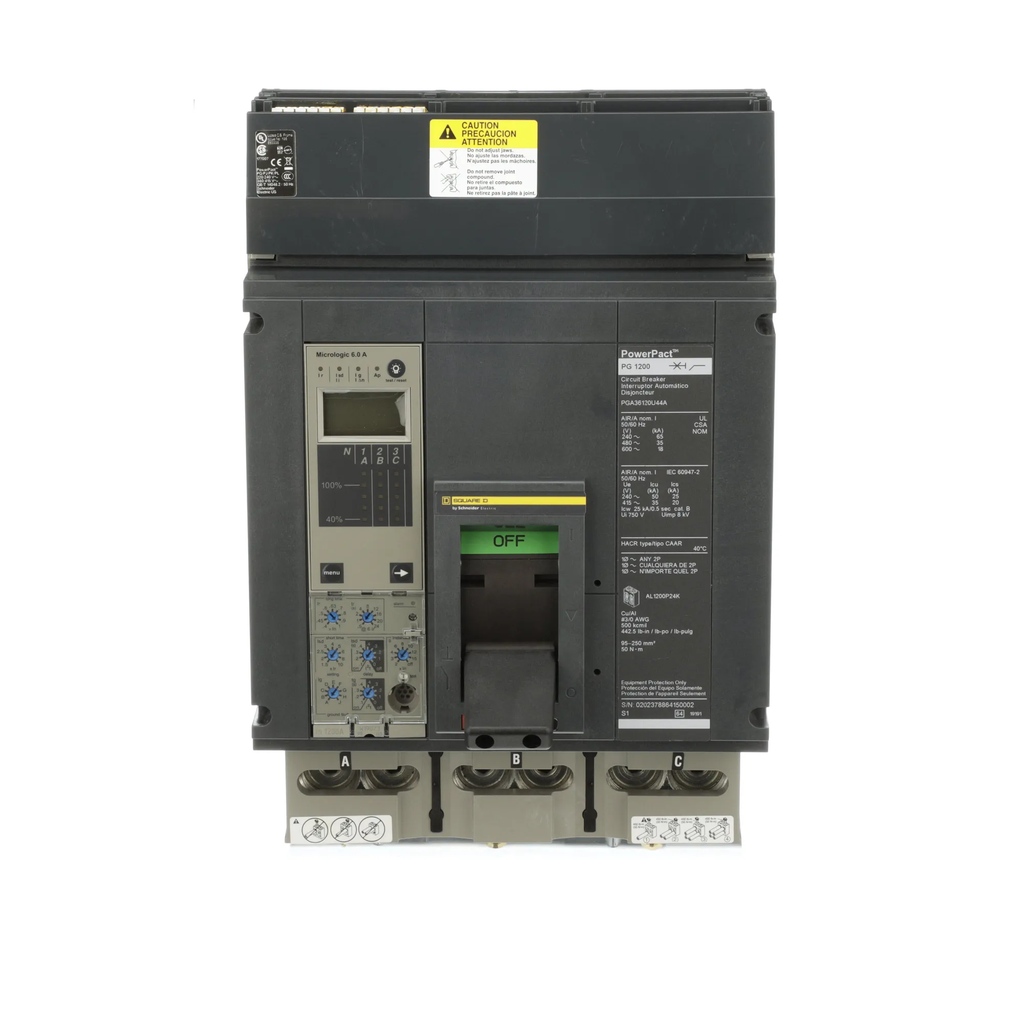

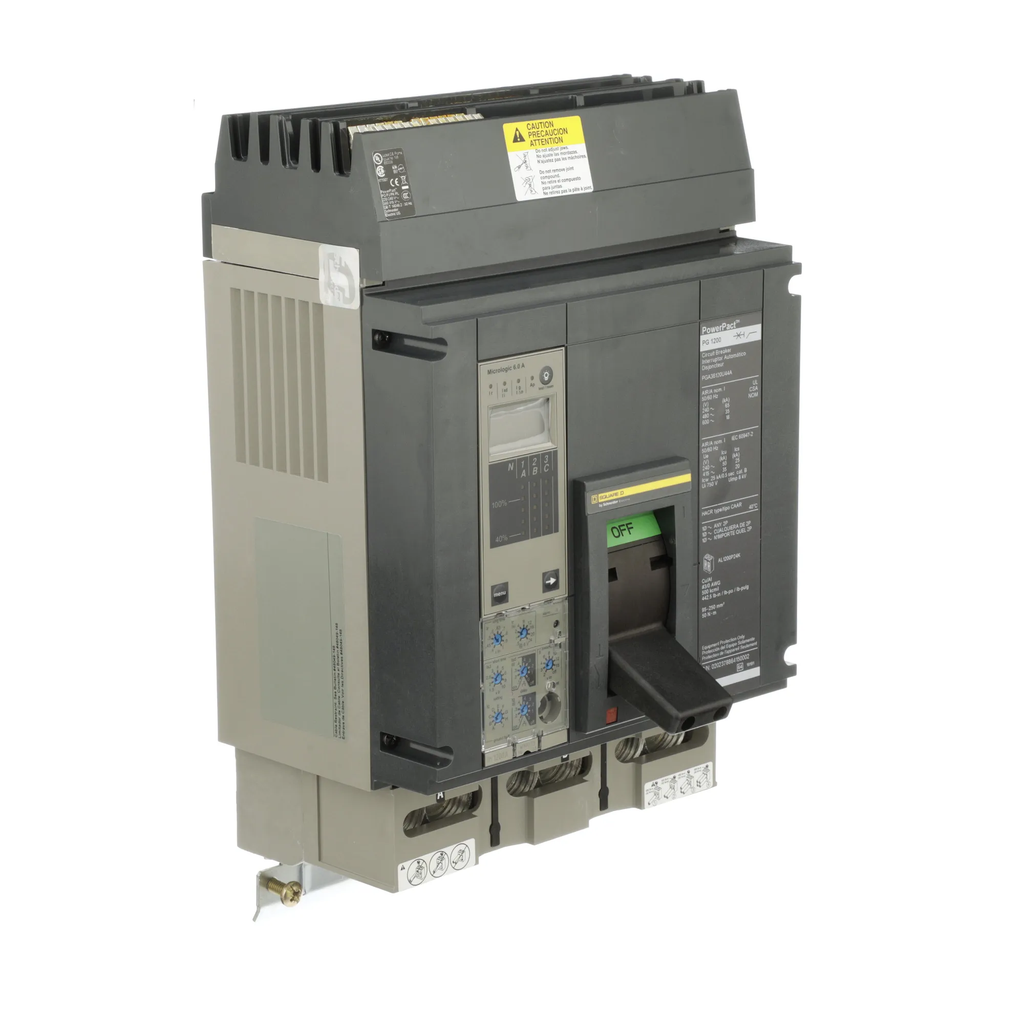

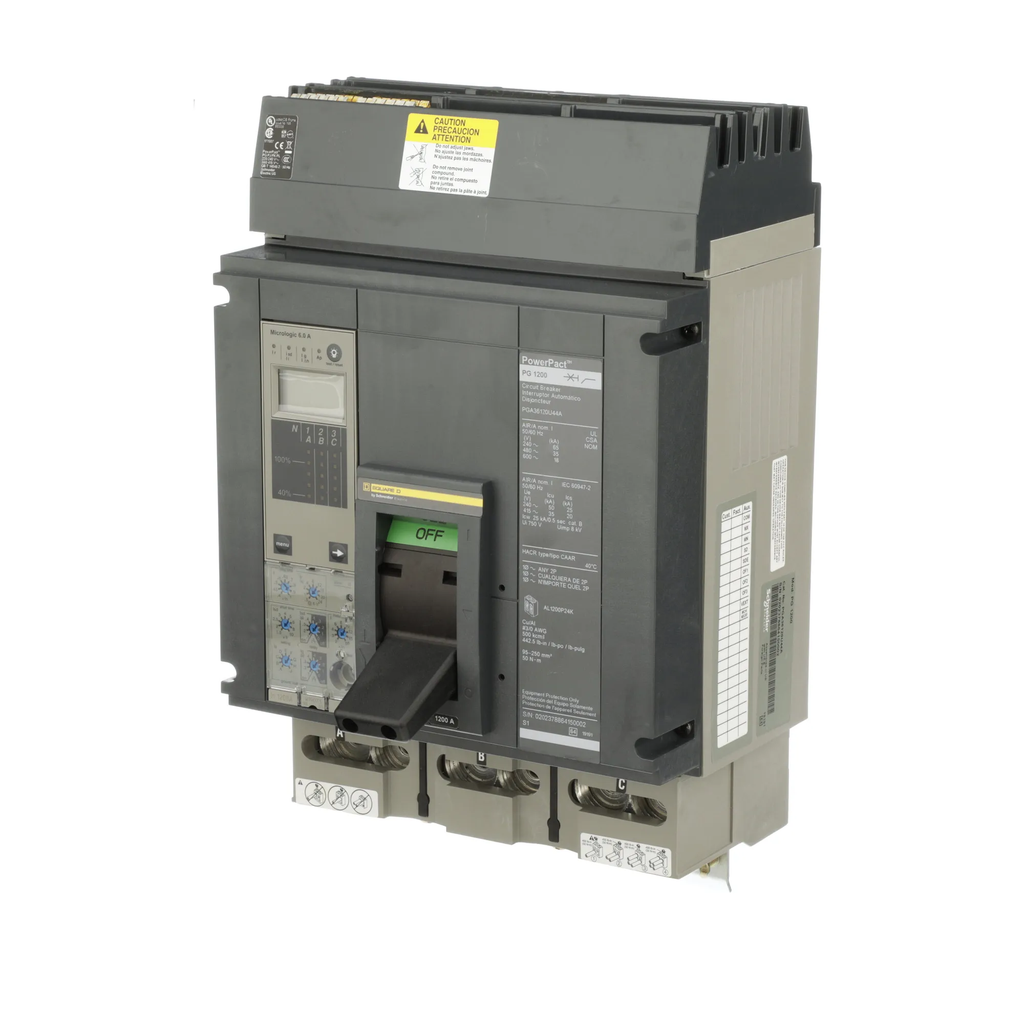

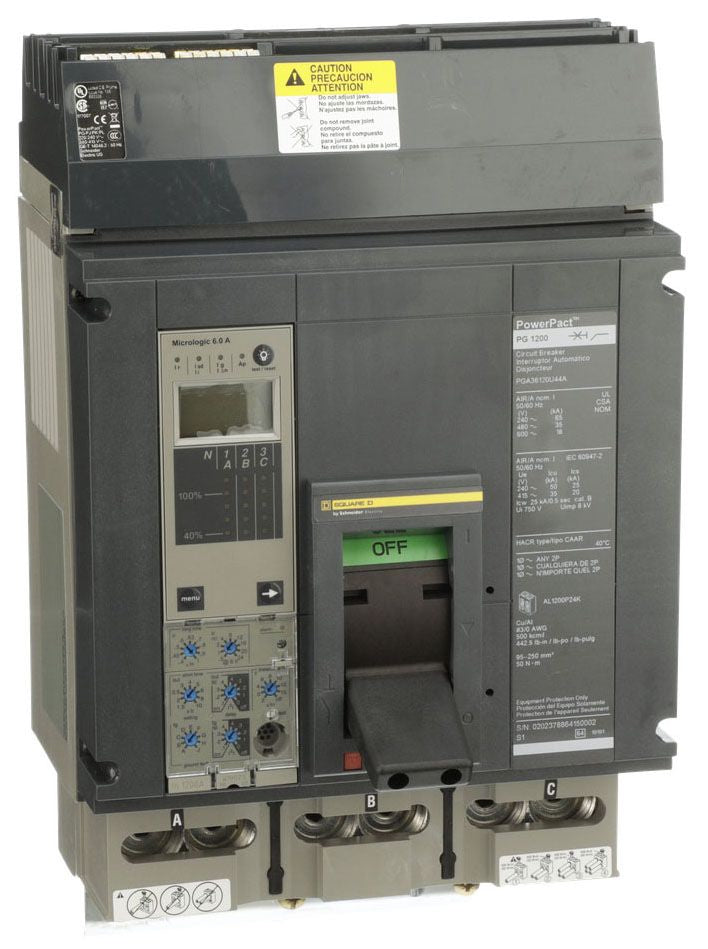

PGA36120U44A - Square D 1200A 600V 3-Pole I-Line PowerPact P Molded Case Circuit Breaker

PGA36120U44A

PGA36120U44A is a Square D I-Line PowerPact P molded case circuit breaker designed for 1200 amp, 600 volt AC applications with 3 poles.This circuit breaker features an electronic trip unit with Micrologic 6.0A LSIG protection, a 35 kA interrupt rating at 480V, and a busbar mounting type.

• Amperage Rating: 1200 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Mounting Type: Busbar (I-Line Plug-In)
• Interrupt Rating: 18/35/65 kA (depending on voltage)
• Frame/Series: PowerPact P (Type PGA)
• Trip Unit: Electronic Micrologic 6.0A LSIG
• Wire Size Range: 3/0 AWG to 500 kcmil Aluminum, 4 AWG Copper
• Certifications: UL 489 Listed, CSA, IEC Certified
• Frequency: 50/60 Hz
• Dimensions: Approx. 8.1" L x 8.3" W x 16.2" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PGA36120U44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGA
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : P Frame
• Protection : Solid State

Product Data

• UPC : 785901502449
• GTIN : 00785901502449
• Country of Origin : Mexico
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
