PGA36120U41A - Square D 1200A 600V 3 Pole I-Line Plug-In Molded Case Circuit Breaker, 35kAIC, PGA Frame, Solid State Trip Unit, UL/CSA/IEC

PGA36120U41A

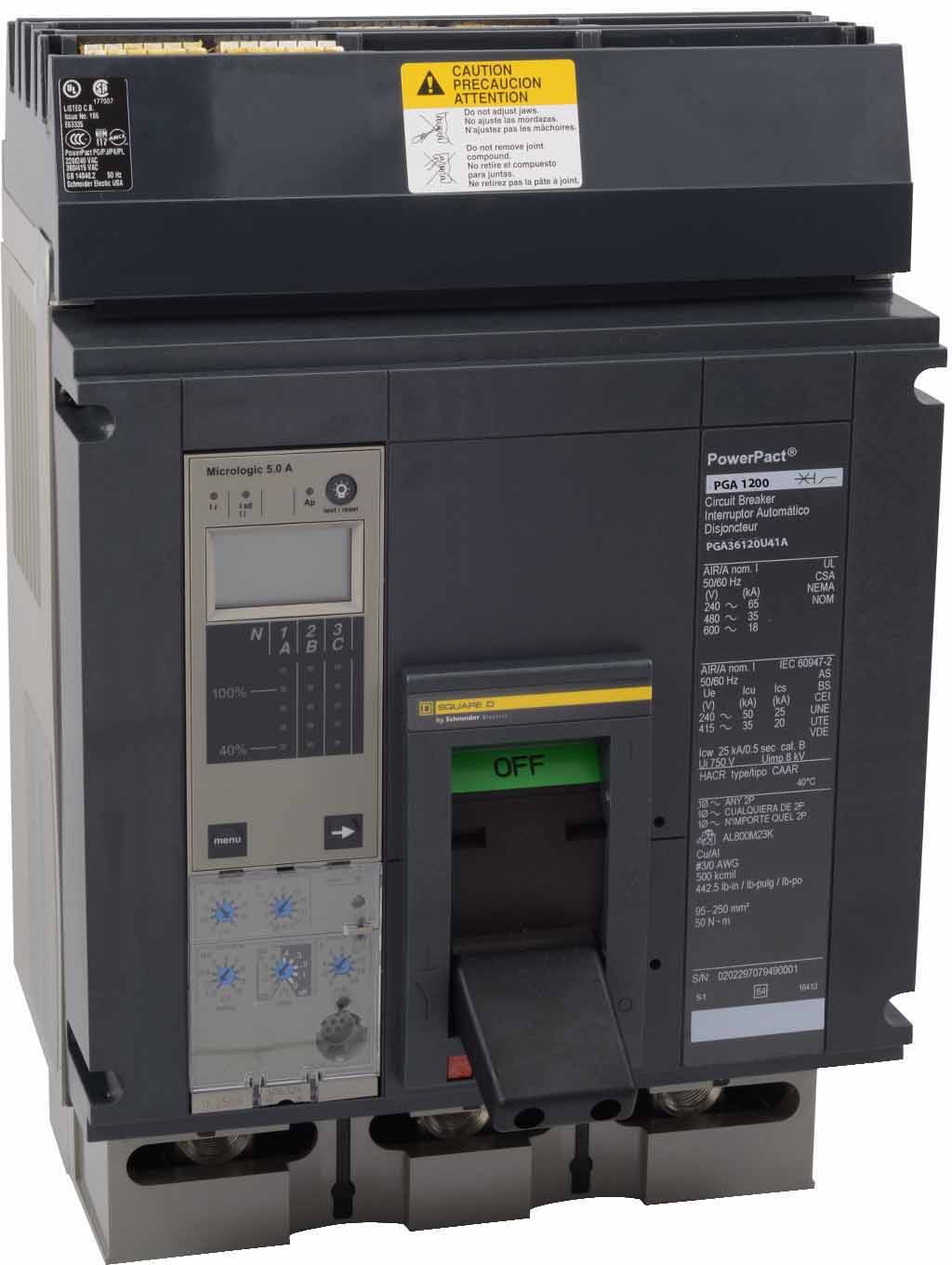

PGA36120U41A is a Square D 3 pole, 1200A, 600V molded case circuit breaker designed for high-capacity power distribution.

This I-Line style plug-in breaker features a solid state electronic trip unit with long-time and instantaneous protection, interchangeable ammeter, and is suitable for demanding commercial and industrial applications. It is UL, CSA, and IEC certified for safety and compliance.

Key Specifications
• Amperage: 1200A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 35kAIC @ 480V
• Series/Frame: PGA
• Trip Unit: Solid State, MicroLogic 3.0A, LI (Long-Time and Instantaneous)
• Certifications: UL, CSA, IEC
• Connection: I-Line Style Plug-In
• Phase: 3
• Protection: Electronic, ammeter included
• Approvals: UL Listed, CSA, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PGA36120U41A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGA
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : P Frame
• Protection : Solid State

Product Data

• UPC : 60648692358
• GTIN : 03606486923580
• Country of Origin : Mexico
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 35.739
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
