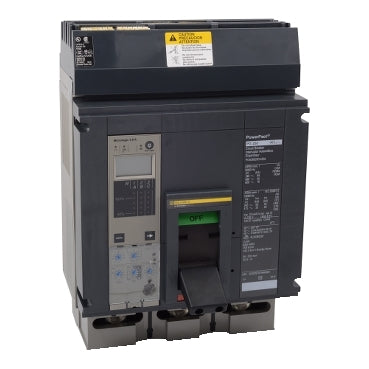

PGA36080U41A - Schneider Electric 800A 600V 3 Pole I-Line Style Plug-In Circuit Breaker 35kA@480V AIC

PGA36080U41A

PGA36080U41A is a Schneider Electric 3 pole, 800 amp, 600 volt I-Line style plug-in circuit breaker with a 35kA interrupt rating at 480V.This molded case circuit breaker features a Powerpact PGA type frame designed for reliable protection in commercial and industrial power distribution systems. It supports 3-phase applications and offers a 35,000 amp interrupting capacity at 480 volts, ensuring high fault current protection. The breaker is plug-in mounted for easy installation and maintenance.

• Amperage: 800 Amps
• Voltage Rating: 600 Volts AC
• Poles: 3 Pole
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 35kA at 480V
• Series/Frame: Powerpact PGA
• Trip Unit: Solid State Electronic
• Certifications: UL 489, ANSI C37, NETA Compliant
• Application: Commercial and Industrial Power Distribution
• Manufacturer: Schneider Electric

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PGA36080U41A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• GTIN : 3606486285565
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
