Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
PGA36080U33A

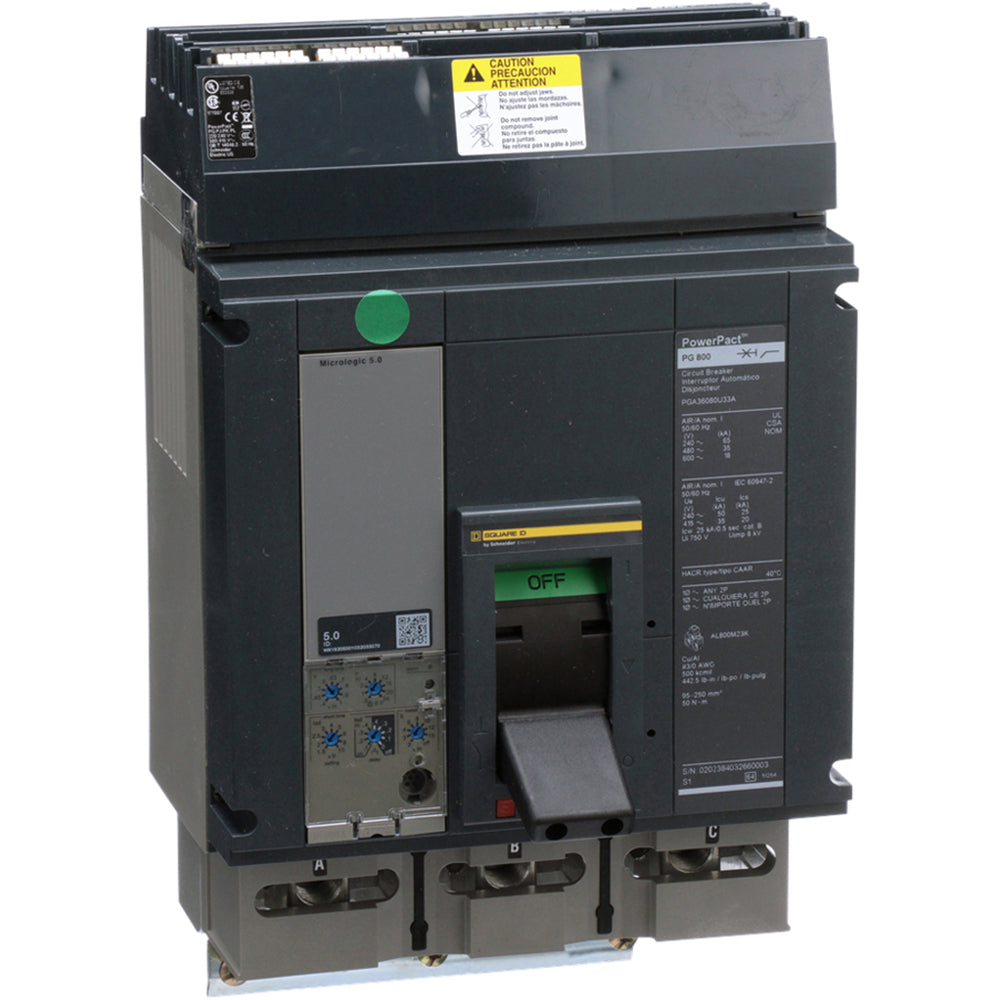

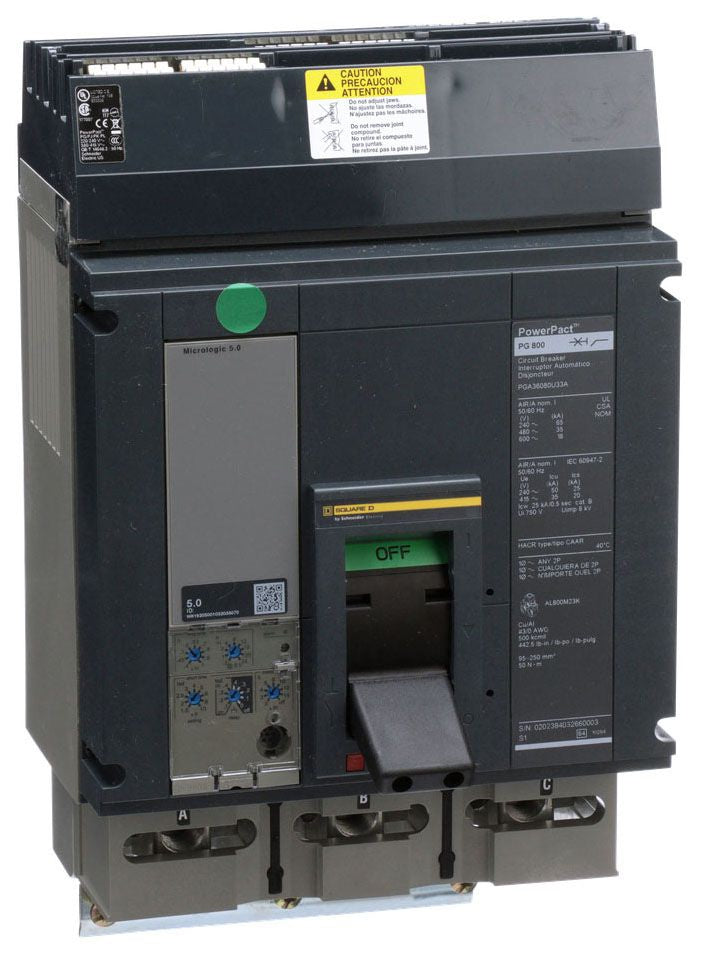

PGA36080U33A is a Square D PowerPact P-frame molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This breaker features a 3-pole configuration, 800A continuous current rating, and 600V AC maximum voltage, making it suitable for main panel disconnect and branch circuit protection applications. The breaker is equipped with an electronic Micrologic 5.0 trip unit for precise overload and short-circuit protection, and is rated for I-Line busbar mounting. It is UL 489 listed and CSA certified for use in North America and worldwide installations. This circuit breaker is engineered for use in I-Line panelboards and switchboards, offering a standard LSI (Long-time, Short-time, Instantaneous) protection curve. The breaker is designed for easy installation and compatibility with common accessories across the PowerPact P-frame series. Its robust construction and advanced trip technology ensure reliable performance in demanding environments.
- Part Number: PGA36080U33A
- Manufacturer: Square D
- Series/Frame: PowerPact P
- Amperage: 800A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: I-Line Busbar
- Interrupt Rating: 18kA @ 600V AC
- Interrupt Rating: 35kA @ 480V AC
- Interrupt Rating: 65kA @ 240V AC
- Trip Unit: Micrologic 5.0, LSI
- Certifications: UL 489, CSA
Specifications
- Part Number: PGA36080U33A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : PGA
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : I-Line Style Plug-In
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Frame Size : P Frame
- Protection : Solid State
Product Data
- UPC : 785901854951
- GTIN : 00785901854951
- Country of Origin : United States
- Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
- Weight : 35.999
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
