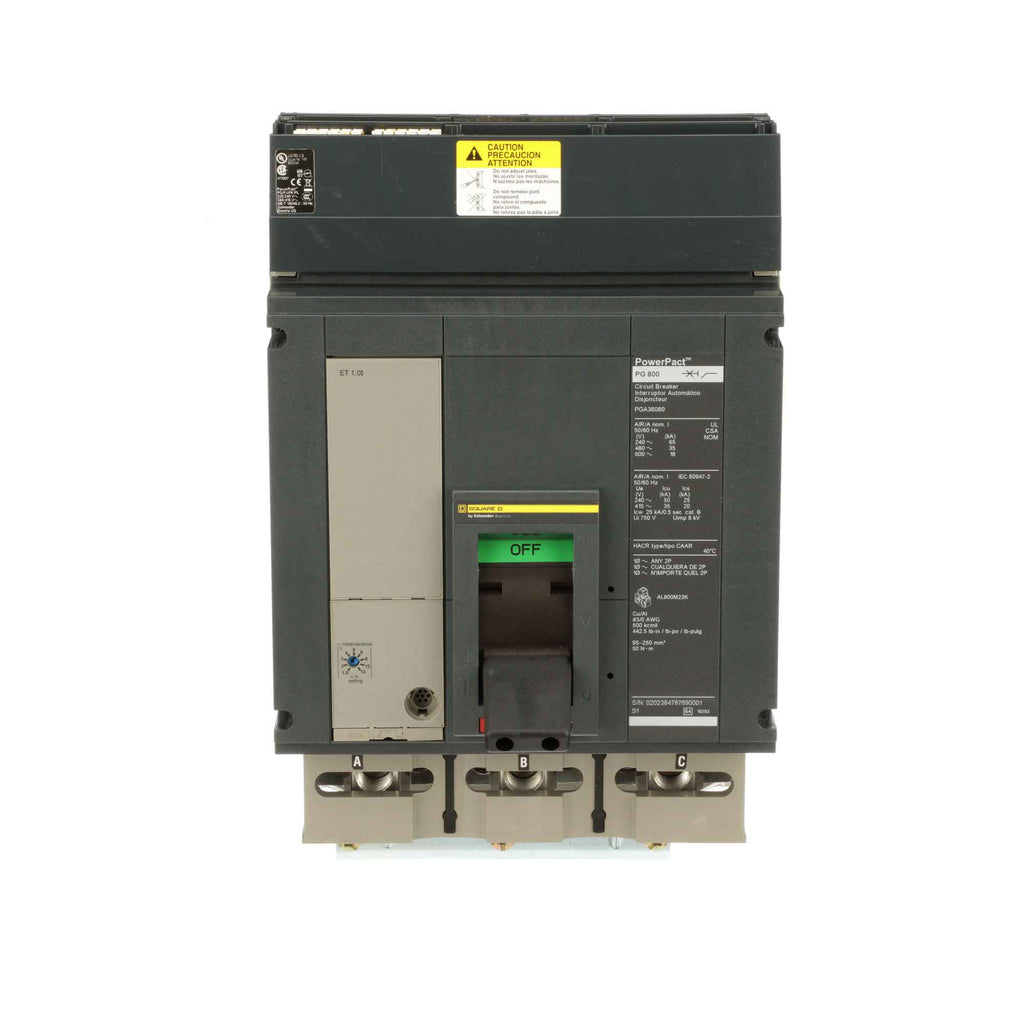

PGA36080 - Square D 800A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact PGA Series

PGA36080

PGA36080 is a Square D 3-pole molded case circuit breaker rated for 800 amps and 600 volts, designed for reliable power distribution.This circuit breaker features a PowerPact PGA series frame with I-Line style plug-in mounting, solid state protection, and LI (long-time and instantaneous) trip functions. It has an interrupting rating of 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC, making it suitable for demanding industrial applications. The breaker is UL, CSA, and IEC certified and supports wire gauges from AWG 3/0 to 500 kcmil aluminum or copper.

Key Specifications
• Amperage: 800A
• Voltage Rating: 600V AC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupting Rating: 65kA@240VAC, 35kA@480VAC, 18kA@600VAC
• Series/Frame: PowerPact PGA
• Trip Unit: LI - Long-Time and Instantaneous
• Protection Type: Solid State
• Certifications: UL, CSA, IEC
• Dimensions (HxWxD): 12.86 x 8.27 x 8.05 inches
• Wire Gauge: AWG 3/0 to 500 kcmil Aluminum/Copper
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: PGA36080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGA
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : P Frame
• Protection : Solid State



Product Data

• UPC : 785901496991
• GTIN : 00785901496991
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 35.289
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
