Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
PGA36060U44A

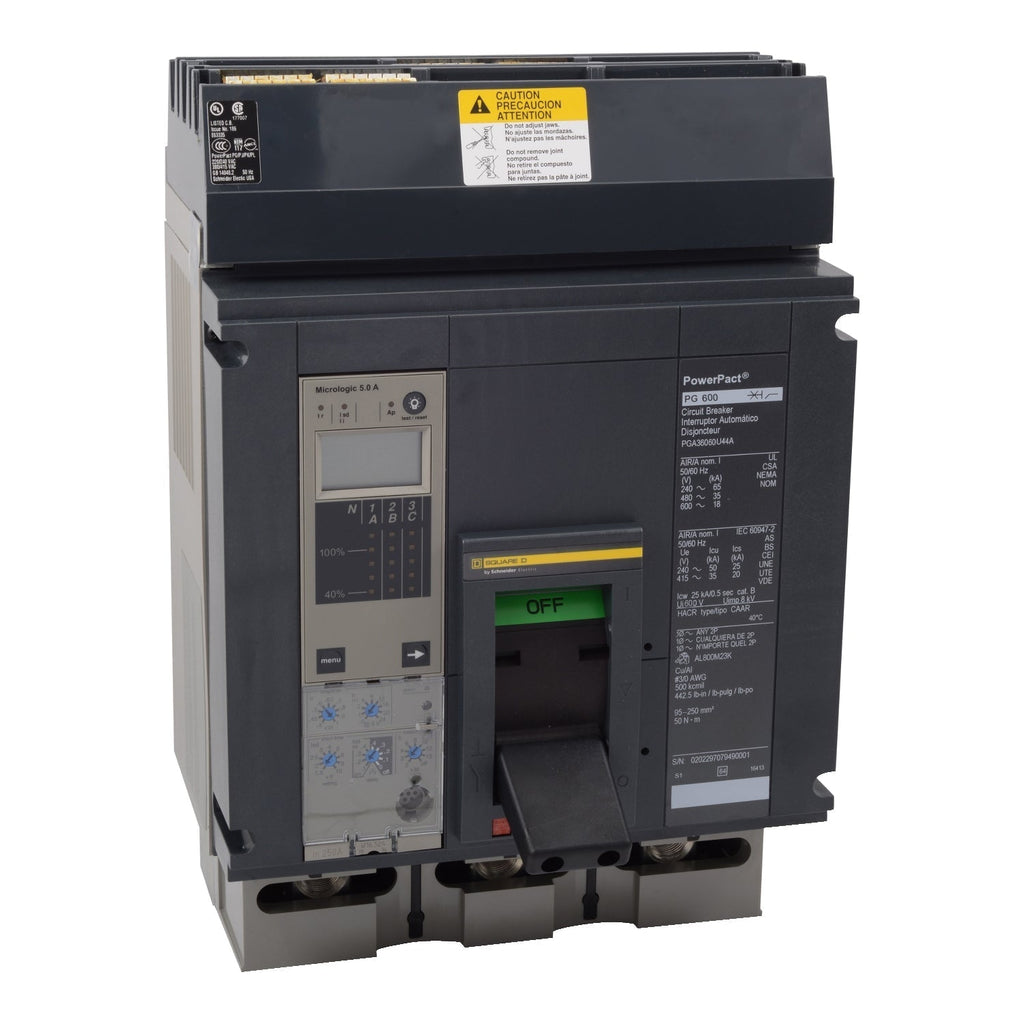

PGA36060U44A is a Square D molded case circuit breaker designed for high-performance power distribution applications.This circuit breaker features a 600 ampere rating, 600 volt maximum voltage, and 3 poles with an I-Line style plug-in mounting. It provides reliable protection with an interrupt rating of 18kA to 35kA depending on application, and is part of the PowerPact P series. The breaker includes a Micrologic 6.0A trip unit and meets industry certifications for safety and performance.
- Manufacturer: Square D
- Part Number: PGA36060U44A
- Amperage: 600A
- Voltage Rating: 600V AC
- Poles: 3
- Mounting Type: I-Line Plug-In
- Interrupt Rating: 18kA to 35kA @ 480V
- Series/Frame: PowerPact P
- Trip Unit: Micrologic 6.0A
- Certifications: UL Listed
Specifications
- Part Number: PGA36060U44A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : PGA
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : I-Line Style Plug-In
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Frame Size : P Frame
- Protection : Solid State
Product Data
- Country of Origin : United States
- Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
- Weight : 32
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
