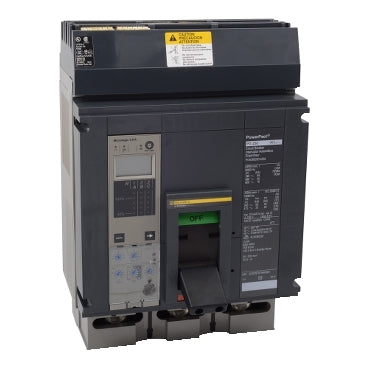

PGA36060U41A - Schneider Electric PowerPacT P 600A 600VAC 3-Pole Circuit Breaker 18kA Interrupt Rating I-Line Micrologic 3.0A

PGA36060U41A

PGA36060U41A is a Schneider Electric PowerPacT P molded case circuit breaker rated for 600 Amps and 600 Volts AC with 3 poles.This 3-pole circuit breaker features an 18kA interrupting rating at 600VAC, I-Line frame compatibility, and a Micrologic 3.0A electronic trip unit. It supports continuous current rating of 80% and is UL 489 listed, CSA NMX, and IEC certified for worldwide applications. The breaker uses common mounting holes and handle locations for easy installation and interchangeability.

• Manufacturer: Schneider Electric
• Part Number: PGA36060U41A
• Amperage: 600A
• Voltage: 600VAC
• Poles: 3
• Interrupt Rating: 18kA at 600VAC
• Frame/Series: PowerPacT P, I-Line
• Trip Unit: Micrologic 3.0A electronic
• Continuous Current Rating: 80%
• Certifications: UL 489, CSA NMX, IEC
• Mounting: Common I-Line mounting holes and handle locations

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PGA36060U41A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
