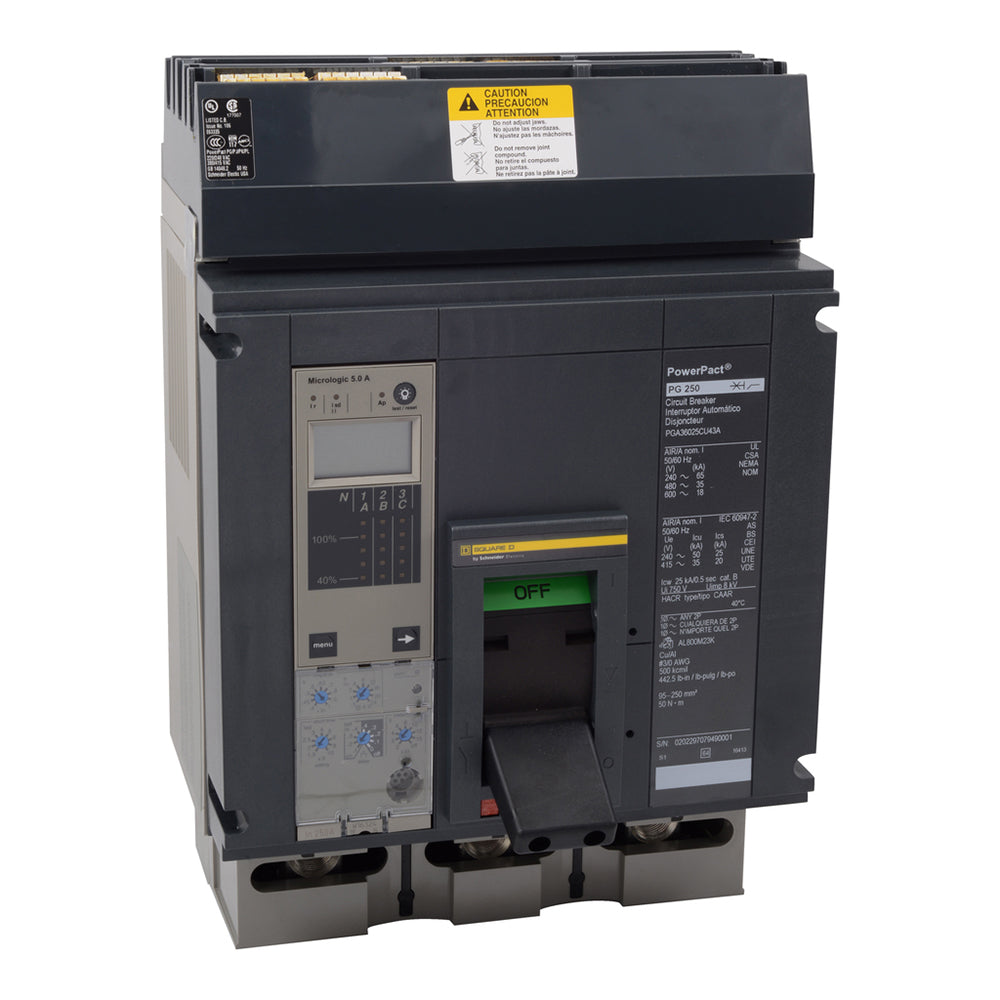

PGA36025U33A - Square D 250A 600V 3-Pole PowerPact P-Frame Molded Case Circuit Breaker

PGA36025U33A

PGA36025U33A is a Square D PowerPact P-frame molded case circuit breaker rated for 250 amps and 600 volts AC with 3 poles.This heavy-duty circuit breaker features a 3-pole configuration designed for industrial power distribution applications. It has a 600VAC voltage rating and a 250A amperage rating. The breaker supports an interrupt rating of 35kA at 480V and 18kA at 600V, suitable for high fault current protection. It is an I-Line type breaker compatible with PowerPact P-frame panels and switchboards. Certifications include UL and CSA listings, ensuring compliance with safety standards.

Key Specifications
• Amperage: 250A
• Voltage Rating: 600VAC
• Number of Poles: 3
• Interrupt Rating: 35kA @ 480V, 18kA @ 600V
• Frame/Series: PowerPact P-frame
• Mounting Type: I-Line
• Trip Unit: Standard electronic trip
• Certifications: UL Listed, CSA Certified
• Interrupt Code: G
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: PGA36025U33A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGA
• Voltage : 600
• Amperage : 250
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Protection : Solid State



Product Data

• UPC : 78590167760
• GTIN : 00785901677604
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 35.999 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
