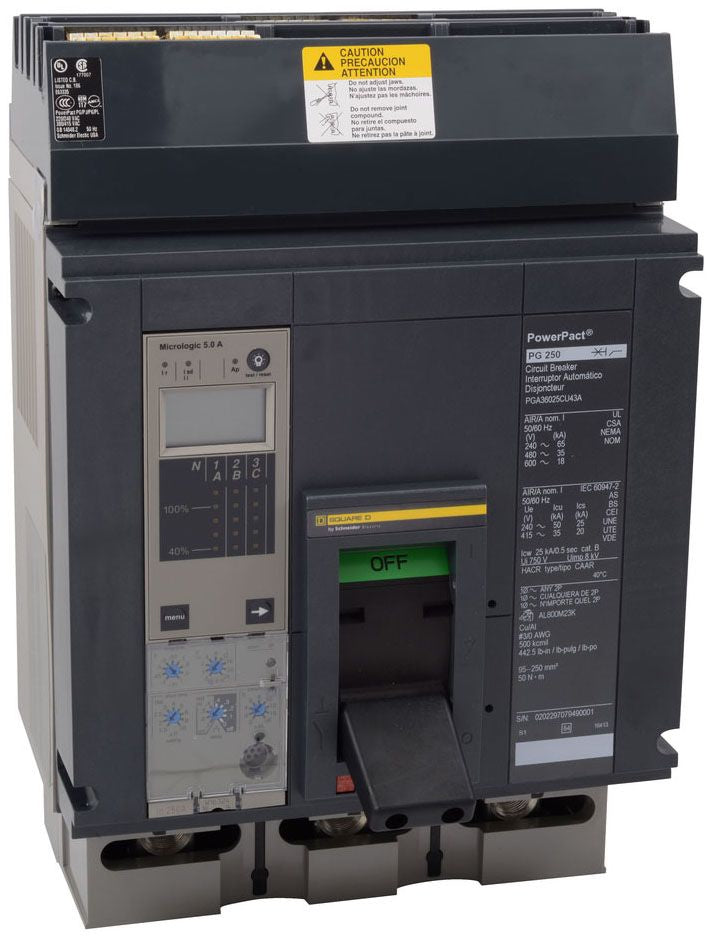

PGA36025CU63AE1 - Square D 250A 600V 3-Pole Powerpact P-Frame Circuit Breaker Plug-In Mount

PGA36025CU63AE1

PGA36025CU63AE1 is a 3-pole, 250 amp, 600 volt molded case circuit breaker from Square D's Powerpact P-frame series with plug-in mounting style.This circuit breaker features a 35kA interrupt rating at 480V, designed for three-phase power distribution. It is an I-Line style plug-in breaker suitable for industrial and commercial applications requiring reliable overcurrent protection. The breaker complies with UL 489 and ANSI C37 standards, ensuring safety and performance.

• Manufacturer: Square D
• Part Number: PGA36025CU63AE1
• Amperage Rating: 250A
• Voltage Rating: 600VAC
• Number of Poles: 3
• Frame Type: Powerpact P-Frame
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 35kA at 480V
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, ANSI C37

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PGA36025CU63AE1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : P Frame
• Protection : Solid State

Product Data

• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
