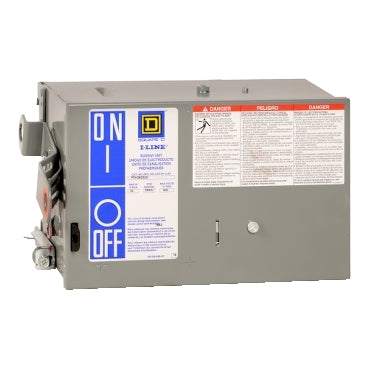

PFH36100G - Square D 100A 600V 3-Pole Breaker Type Bus Plug

PFH36100G

PFH36100G is a Square D breaker-style bus plug rated for 100 amps at 600 volts, designed for use in I-Line busway systems. This three-phase, three-wire bus plug features a thermal magnetic molded case circuit breaker and comes equipped with mechanical lugs for secure connections. The unit is suitable for industrial power distribution applications requiring reliable switching and protection in high-voltage environments. Key Specifications

• Part Number: PFH36100G
• Manufacturer: Square D / Schneider Electric
• Amperage Rating: 100 Amps
• Voltage Rating: 600 Volts AC
• Phase Configuration: 3 Phase, 3 Wire
• Interrupt Rating: 18 kAIC at 600 Volts
• Circuit Breaker Type: Thermal Magnetic Molded Case
• Bus Plug Style: Breaker Type
• Series: I-Line FH Frame
• Lugs: Mechanical Lugs Standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PFH36100G
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Breaker Type
• Family : I-Line
• Type : PFH
• Voltage : 600
• Amperage : 100
• Phase : 3
• AIC rating : 18kA@600V
• Wire : 3
• Compatible Frames : FHP

Product Data

• GTIN : 00785901086932
• Country of Origin : United States
• Dimensions : Depth 15 in (381.00 mm) Width 1.8 in (45.72 mm) Height 1.48 in (37.59 mm)
• Weight : 38
