Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FHP36100

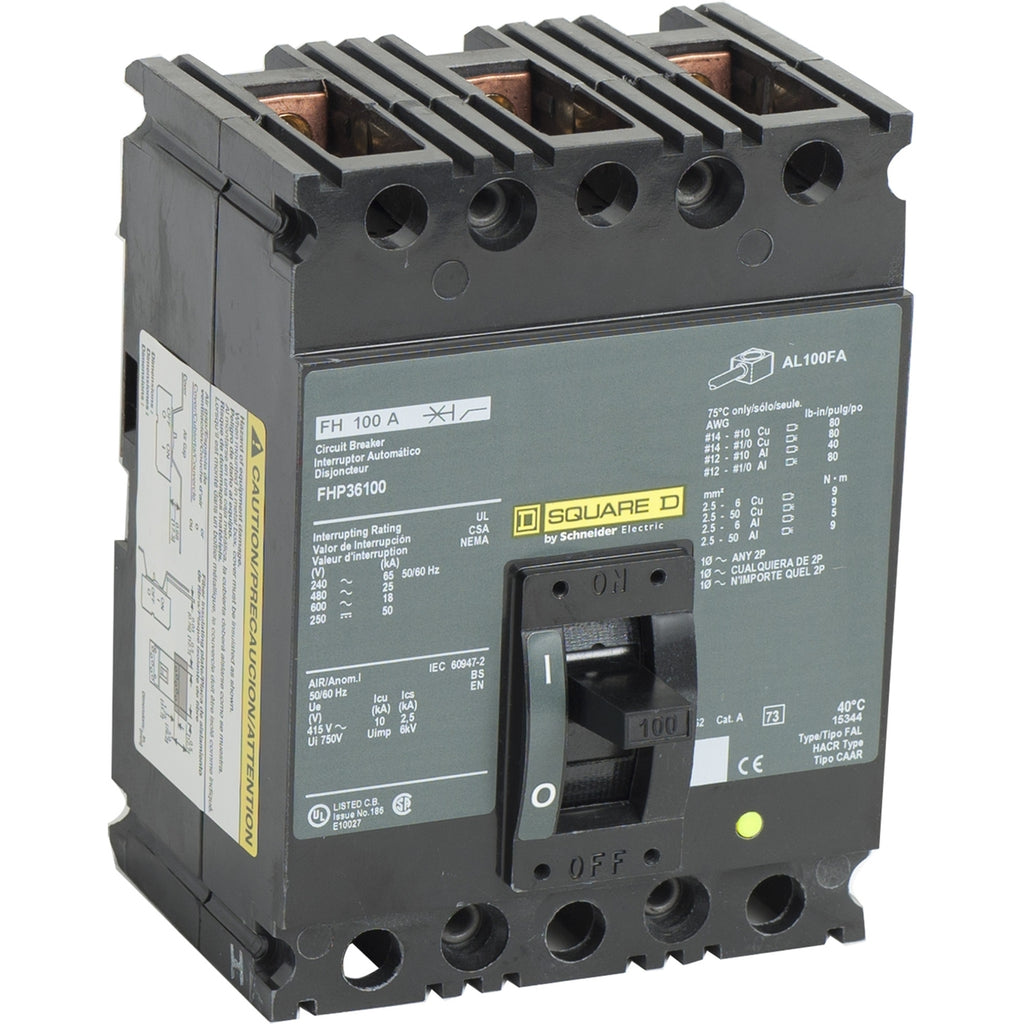

FHP36100 is a Square D 3 pole molded case circuit breaker rated for 100 amps and 600 volts AC, featuring thermal magnetic trip protection.This FHP series breaker is designed for panel mounting with bolted line end connections and load lugs at the off position. It supports 3-phase power systems and has an interrupt rating of 25kA at 480 volts, HACR rated for HVAC applications. The breaker accepts wire sizes from 14 to 4 AWG and is built to F frame specifications with adjustable trip settings.
- Amperage: 100 Amp
- Voltage Rating: 600 VAC
- Poles: 3 Pole / 3 Phase
- Mounting Type: Panel Mount
- Interrupt Rating: 25kA at 480V, 65kA at 240V, 18kA at 600V
- Trip Unit: Thermal Magnetic, Adjustable Trip
- Terminal Type: Aluminum/Copper Load Lugs
- Series/Frame: FHP Series, F Frame
- HACR Rated for HVAC Equipment
- Wire Size Range: 14 to 4 AWG
- Re-certified with 1 year warranty
Specifications
- Part Number: FHP36100
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FHP Series
- Type : FHP
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- GTIN : 00785901313755
- Country of Origin : Mexico
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 4
