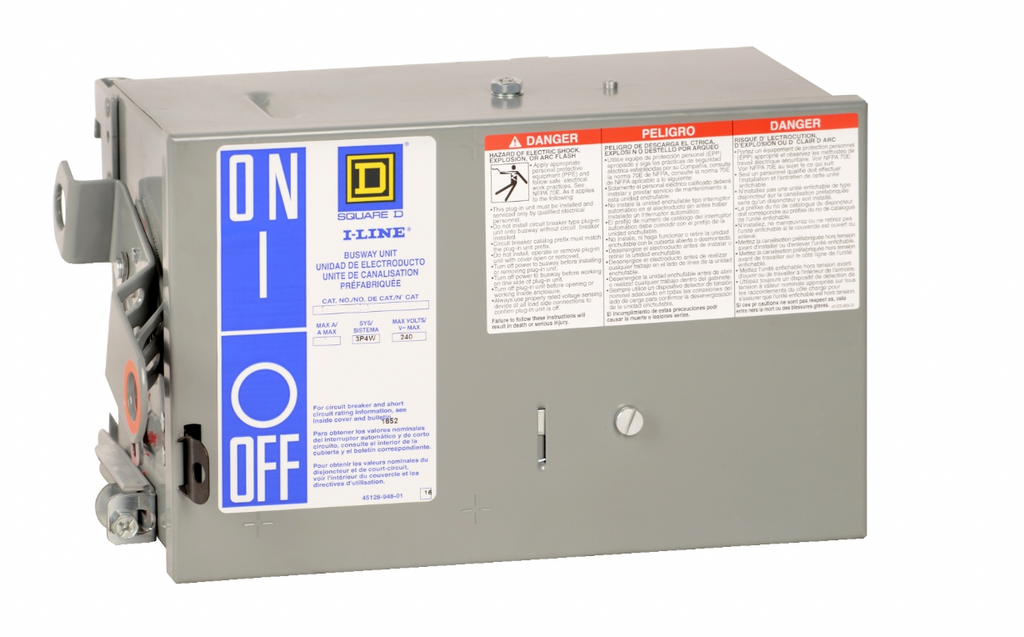

PFH36090G - Square D 90A 600V 3-Phase I-Line Breaker Bus Plug

PFH36090G

PFH36090G is a Square D I-Line breaker-style bus plug rated for 90 amperes at 600 volts AC, designed for three-phase, three-wire busway systems with ground.

This plug-in unit features an F-frame circuit breaker with an 18kA interrupting rating at 600V. The PFH36090G is engineered for industrial power distribution applications requiring reliable bus plug connectivity and thermal-magnetic trip protection. It integrates seamlessly with Square D I-Line busway systems and provides secure, plug-in installation for temporary or permanent branch circuit connections.

• Amperage Rating: 90A
• Voltage Rating: 600V AC
• Phase Configuration: 3-Phase, 3-Wire with Ground
• Series: I-Line
• Frame Type: F-Frame
• Breaker Style: Plug-In Unit
• Interrupting Rating: 18kA at 600V
• Trip Unit: Thermal-Magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PFH36090G
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Breaker Type
• Family : I-Line
• Type : PFH
• Voltage : 600
• Amperage : 90
• Phase : 3
• AIC rating : 18kA@600V
• Wire : 3
• Compatible Frames : FHP

Product Data

• Country of Origin : United States
• Dimensions : Depth 15 in (381.00 mm) Width 1.8 in (45.72 mm) Height 1.48 in (37.59 mm)
• Weight : 38
