Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PFA34100GN

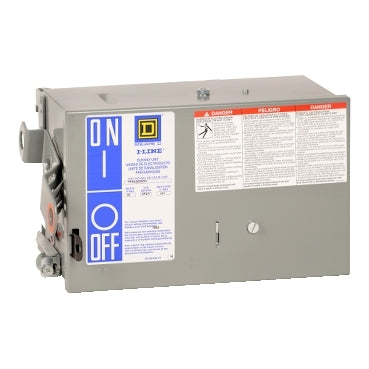

PFA34100GN is a Schneider Electric Square D busway circuit breaker plug-in unit designed for 3-phase 4-wire power distribution systems.
This I-Line breaker-type bus plug delivers reliable performance in industrial and commercial applications requiring secure connection to busway systems. The unit features a compact FA frame design and integrates a 100-amp circuit breaker for overcurrent protection. It accommodates ground conductors from AWG 10 to AWG 2/1 and phase conductors from AWG 14 to AWG 1/0, providing flexible installation options for various cable configurations.
- Amperage Rating: 100A
- Voltage Rating: 277/480V AC
- Phase Configuration: 3-Phase 4-Wire
- Frame Size: FA
- Interrupt Rating: 18kA at 480V AC
- Interrupt Rating: 25kA at 240V AC
- Type: Breaker Plug-In Unit
- Series: I-Line
- Ground Bus: Integral
- Cable Compatibility: AWG 10 to AWG 2/1 ground; AWG 14 to AWG 1/0 phase
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PFA34100GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PFA
- Voltage : 480
- Amperage : 100
- Phase : 3
- AIC rating : 18kA@480V
- Wire : 4
- Compatible Frames : FAP
Product Data
- GTIN : 00785901022251
- Country of Origin : United States
- Dimensions : 8.3 in (210 mm) x 14.4 in (365 mm) x 8.6 in (219 mm) (Height x Width x Depth)
- Weight : 18.501
