Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PFA34020GN

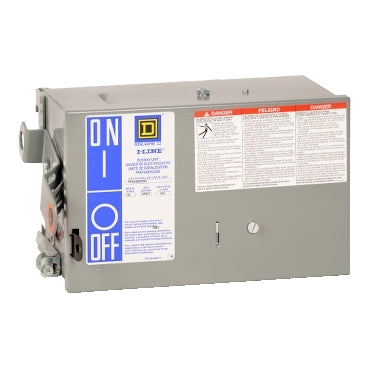

PFA34020GN is a Square D I-Line series breaker type bus plug designed for 3-phase, 4-wire busway systems operating at 480 volts and rated for 20 amps. This unit features an FA frame thermal magnetic molded case circuit breaker and is suitable for industrial and commercial power distribution applications. The PFA34020GN provides reliable circuit protection and easy plug-in installation for I-Line busway systems. It includes mechanical lugs and is rated for 18kA interrupt capacity at 480 volts. The unit is designed for 3-pole, 4-wire with integral ground bus configuration, making it ideal for a wide range of electrical installations.
- Part Number: PFA34020GN
- Manufacturer: Square D
- Series: I-Line
- Frame: FA
- Amperage: 20A
- Voltage: 480V
- Phases: 3
- Wires: 4 (with integral ground)
- Mounting Type: Plug-in Busway
- Interrupt Rating: 18kA @ 480V
- Trip Unit: Thermal Magnetic
- Lug Type: Mechanical
Specifications
- Part Number: PFA34020GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PFA
- Voltage : 480
- Amperage : 20
- Phase : 3
- AIC rating : 18kA@480V
- Wire : 4
- Compatible Frames : FAP
Product Data
- GTIN : 00785901022190
- Country of Origin : United States
- Dimensions : 8.3 in (210 mm) x 14.4 in (365 mm) x 8.6 in (219 mm) (Height x Width x Depth)
- Weight : 18.501
