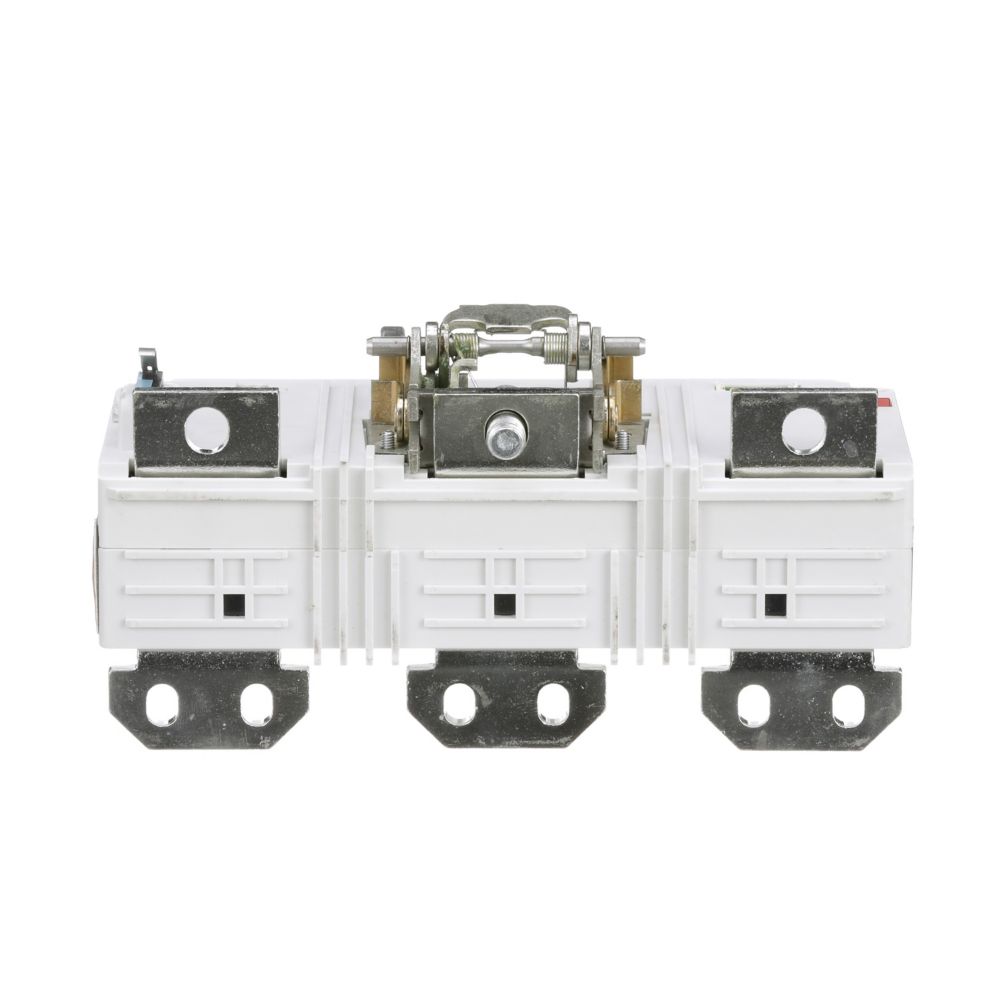

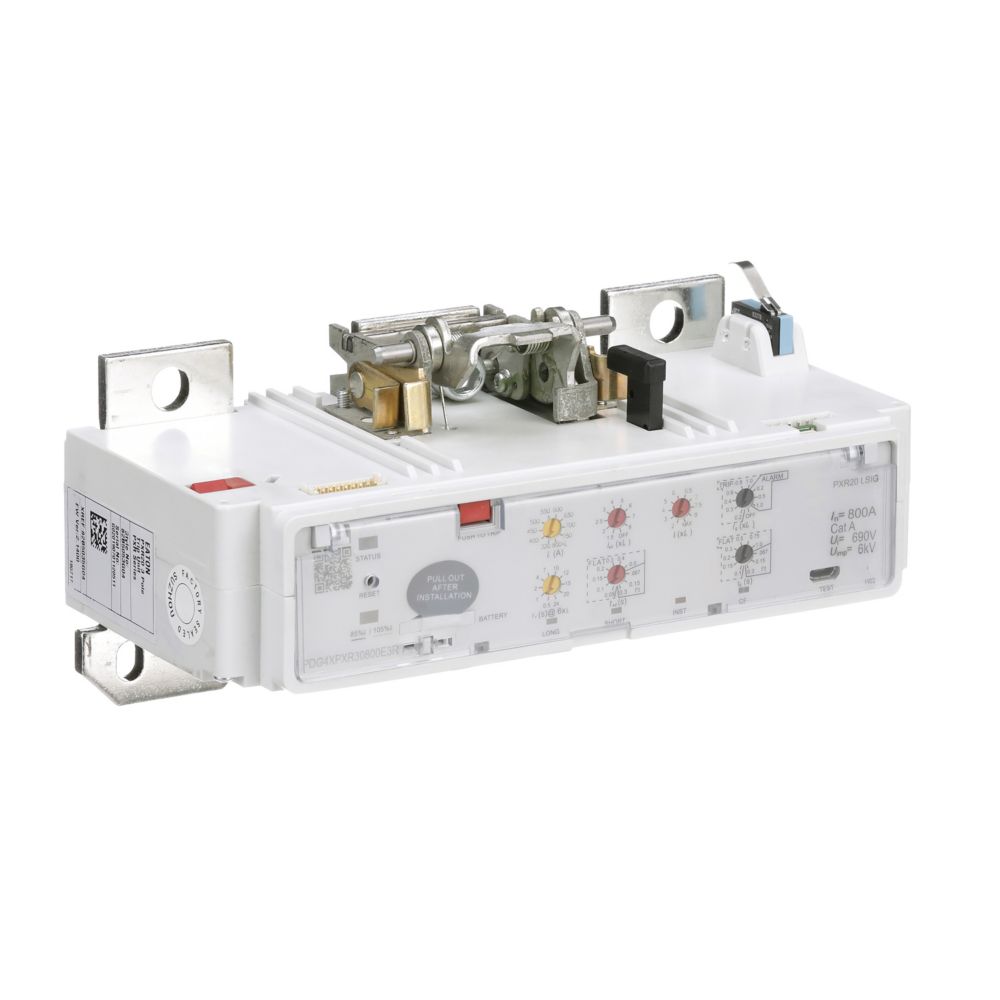

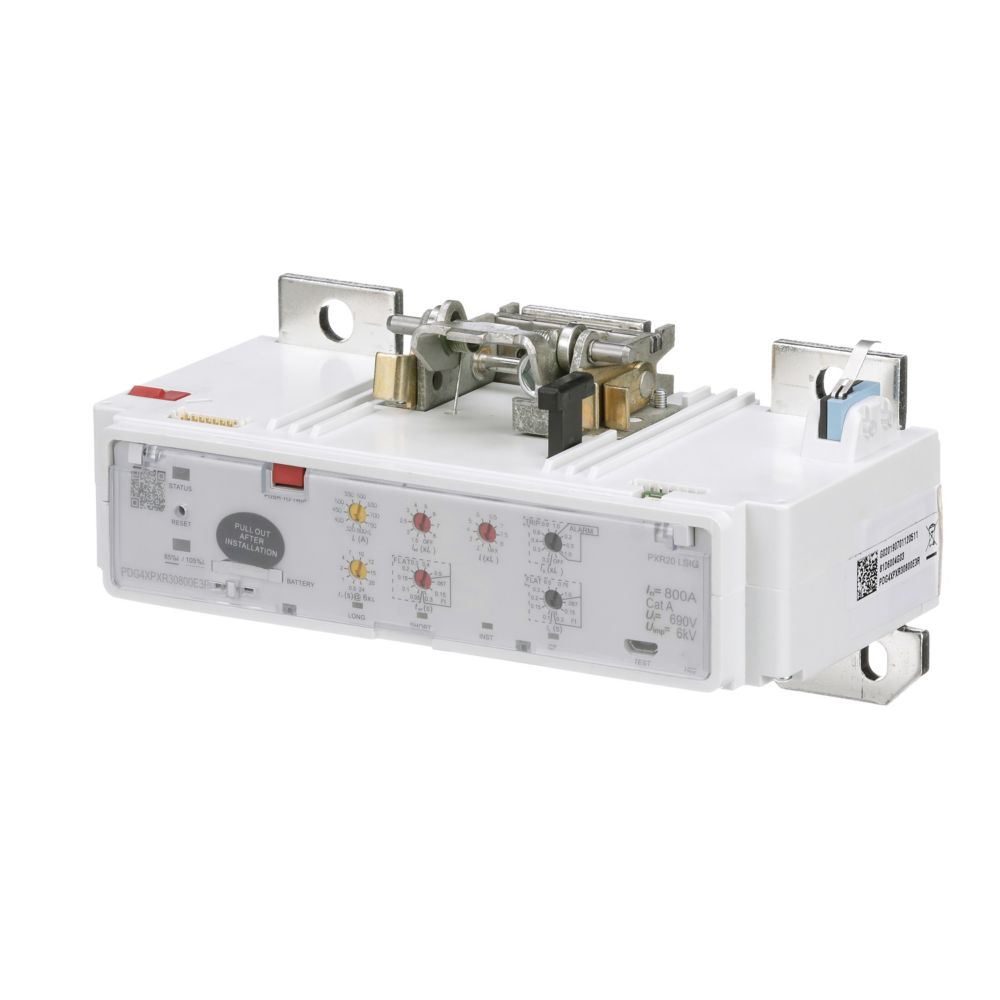

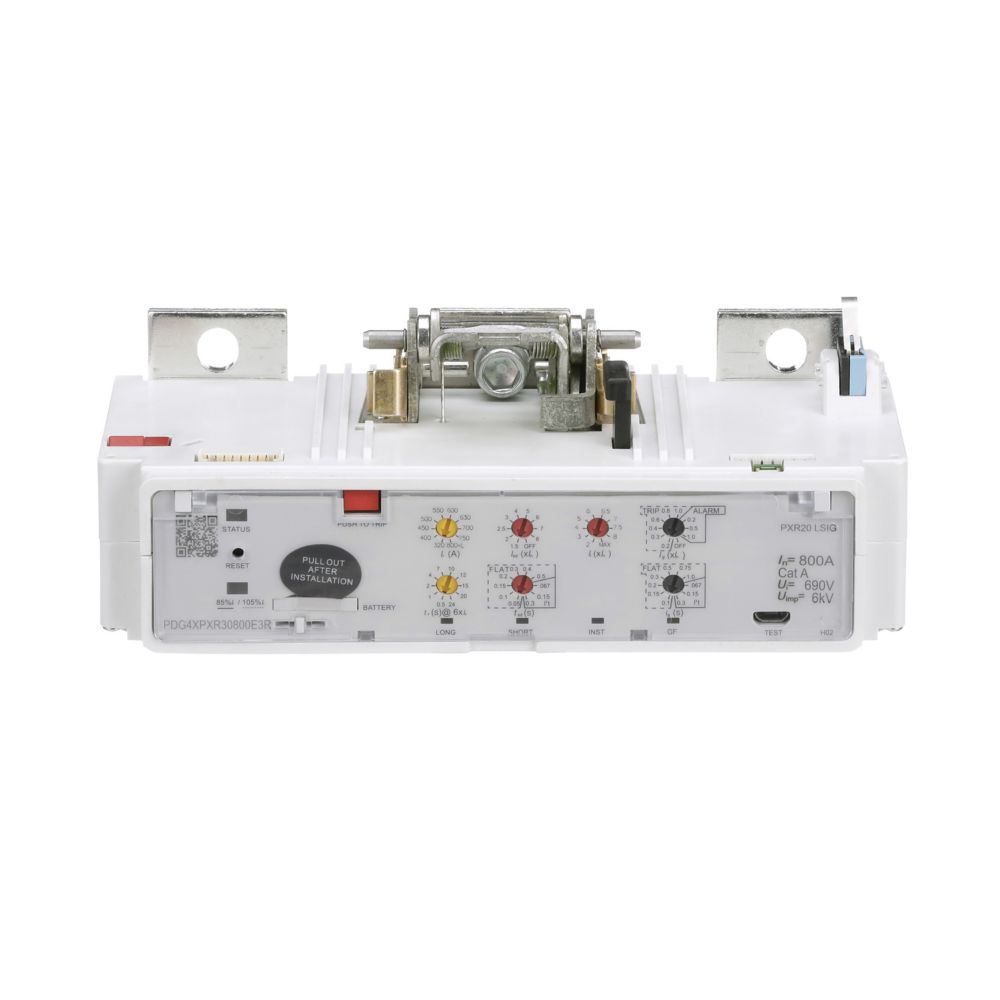

PDG4XPXR30800E3R - Eaton 800A 600V 3-Pole Power Defense PD4 Global Circuit Breaker Trip Unit PXR20 LSIG Frame J-K

PDG4XPXR30800E3R

PDG4XPXR30800E3R is an Eaton Power Defense molded case circuit breaker trip unit designed for high-performance electrical protection.This trip unit features an 800 ampere rating, three poles, and is compatible with the Power Defense PD4 Global series. It uses the PXR20 LSIG electronic trip type for long-time, short-time, instantaneous, and ground fault protection. The unit fits the J-K frame and is rated for 600 volts. It meets IEC 60947-2 certification standards.

Key Specifications
• Amperage Rating: 800 A
• Voltage Rating: 600 V
• Poles: 3
• Frame: J-K (Power Defense PD4 Global)
• Trip Unit Type: PXR20 LSIG (Long Time, Short Time, Instantaneous, Ground Fault)
• Circuit Breaker Type: Molded Case Trip Unit
• Certifications: IEC 60947-2
• Mounting: Compatible with Power Defense PD4 Global Circuit Breakers
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: PDG4XPXR30800E3R
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Poles : 3
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State
• Compatible Frames : PDG,PDG Frame 4



Product Data

• UPC : 786679603178
• GTIN : 00786679603178
• Dimensions : 9.1 in x 5.5 in x 5.4 in (Length/Depth x Height x Width)
• Weight : 4.45
• Certification : IEC 60947-2 CCC Marked UL 489 CSA
