PDG4XPXR30800E2N - Cutler Hammer Power Defense 800A 600V 3-Pole Circuit Breaker Frame J-K PXR20 LSI Trip Unit

PDG4XPXR30800E2N

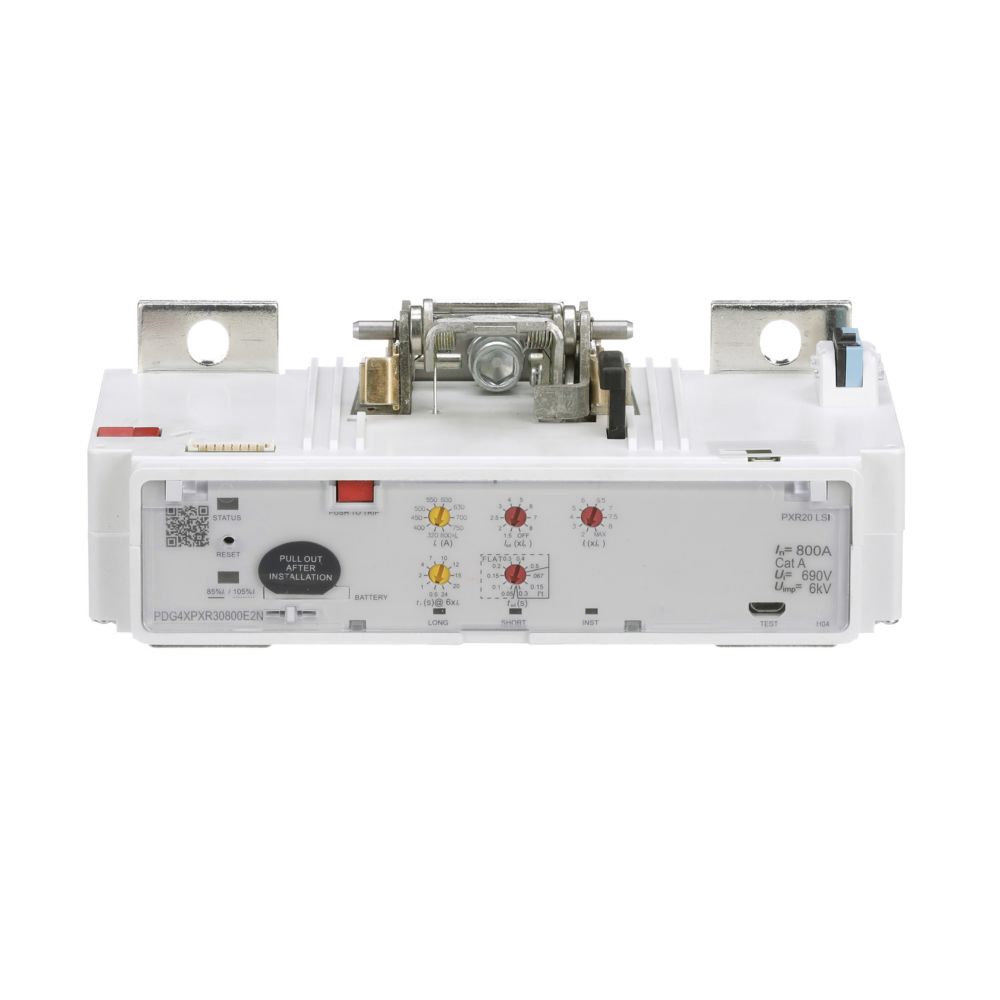

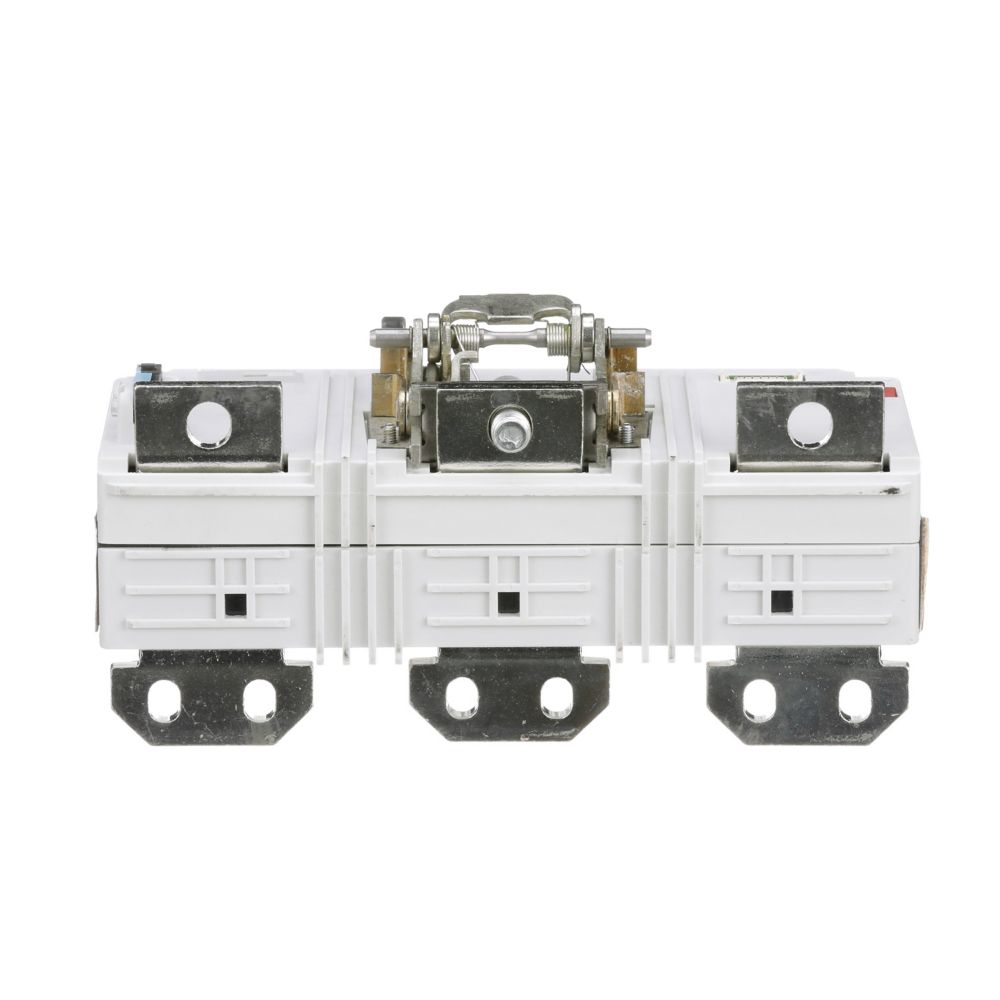

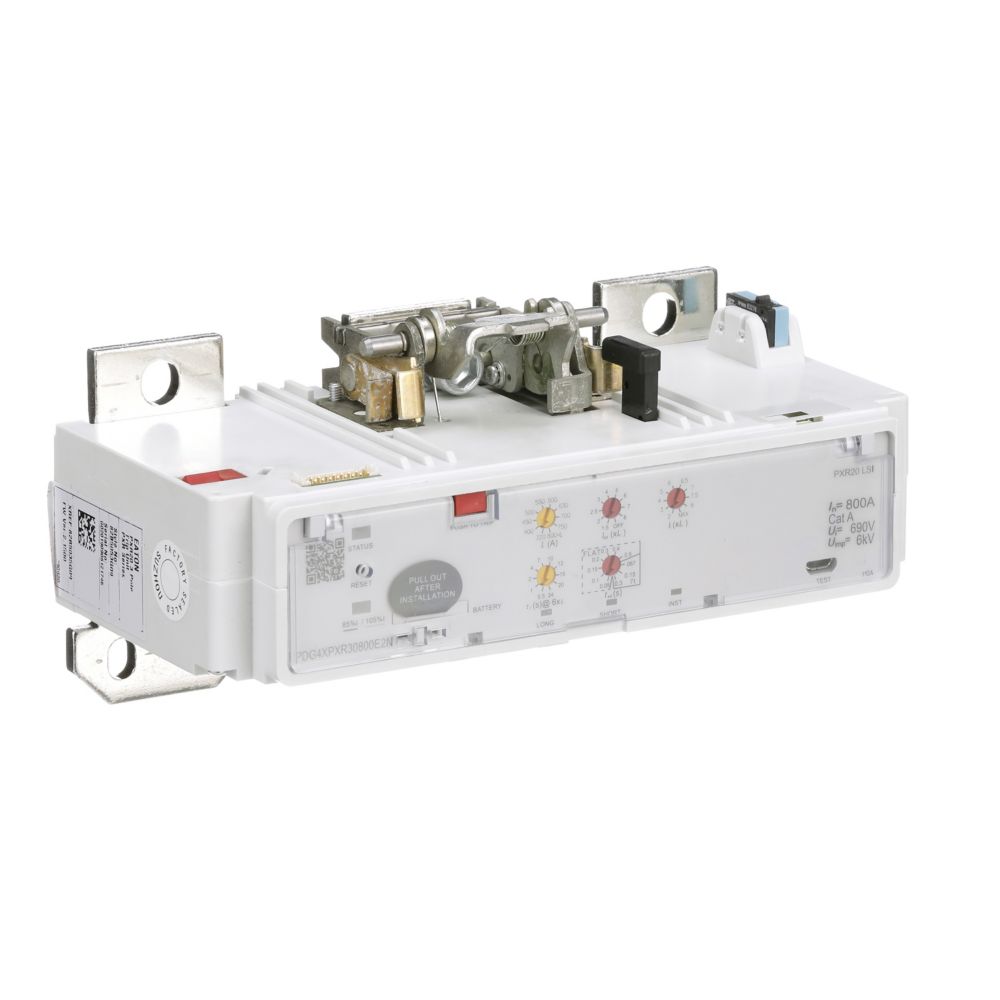

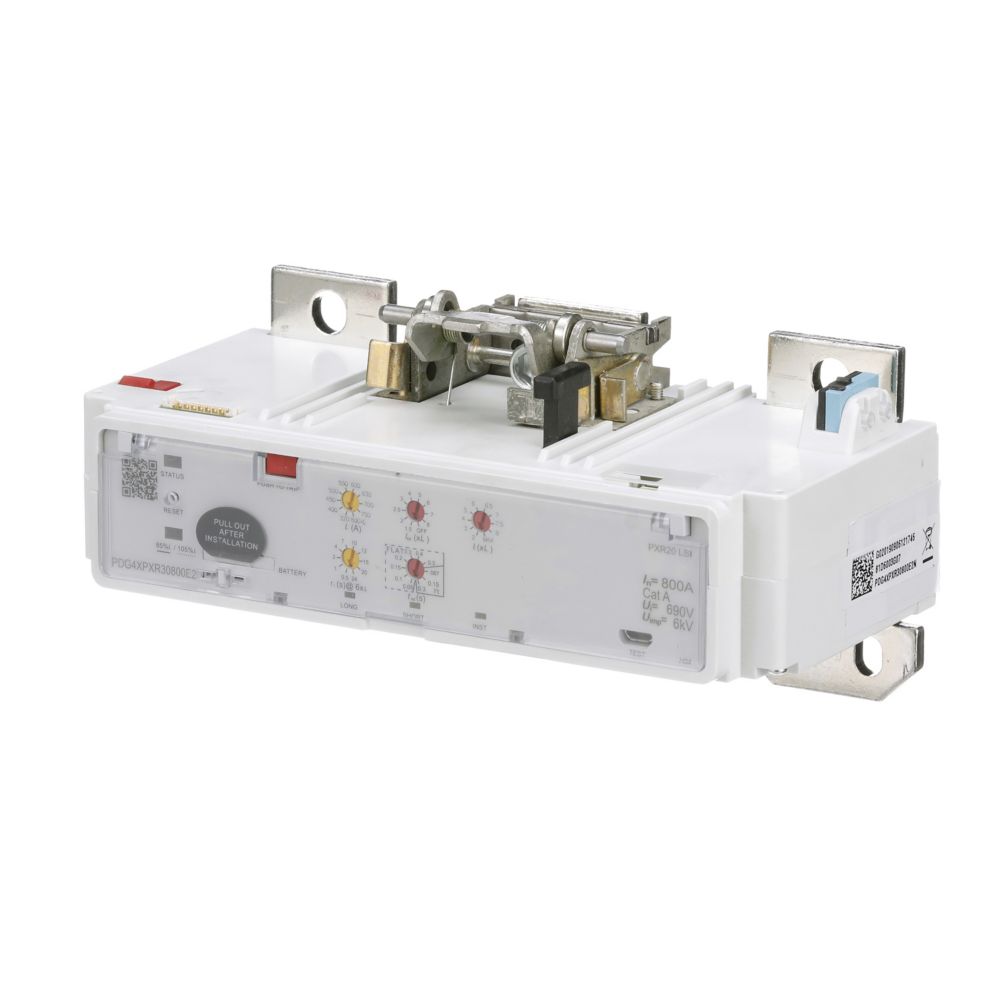

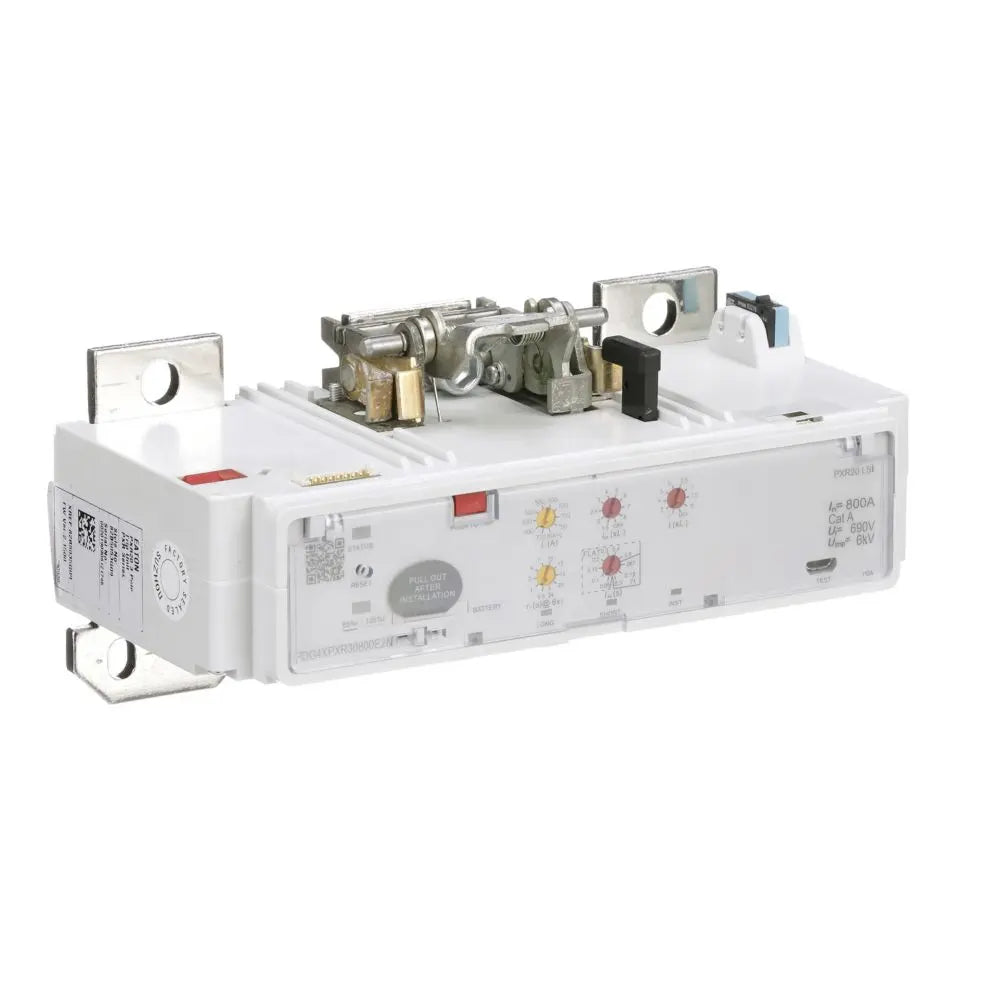

PDG4XPXR30800E2N is a Cutler Hammer Power Defense molded case circuit breaker accessory trip unit designed for high performance and reliability.This trip unit features an 800 ampere rating with a three-pole configuration, compatible with PDG and PDG Frame 4 breakers. It operates at 600 volts and includes the PXR20 LSI solid state trip unit technology within the Power Defense series Frame J-K. The unit is certified to IEC 60947-2, UL 489, CSA, and CCC standards, ensuring compliance with international safety requirements.

• Amperage Rating: 800 A
• Voltage Rating: 600 V
• Number of Poles: Three-pole
• Frame Size: J-K (Frame 4)
• Series: Power Defense
• Trip Unit Type: PXR20 LSI solid state
• Circuit Breaker Type: PD4 Global
• Certifications: IEC 60947-2, UL 489, CSA, CCC Marked
• Dimensions: 5.7 in H x 8.74 in L x 5.37 in W
• Weight: Approximately 2.2 lb
• RoHS Compliant
• Warranty: 1 year from installation or 18 months from shipment

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG4XPXR30800E2N
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Poles : 3
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Amperage Maximum : 800
• Protection : Solid State
• Compatible Frames : PDG,PDG Frame 4

Product Data

• UPC : 786679601280
• Dimensions : 8.74 in x 5.7 in x 5.37 in (Length/Depth x Height x Width)
• Weight : 2.2
• Certification : IEC 60947-2 UL 489 CSA CCC Marked
