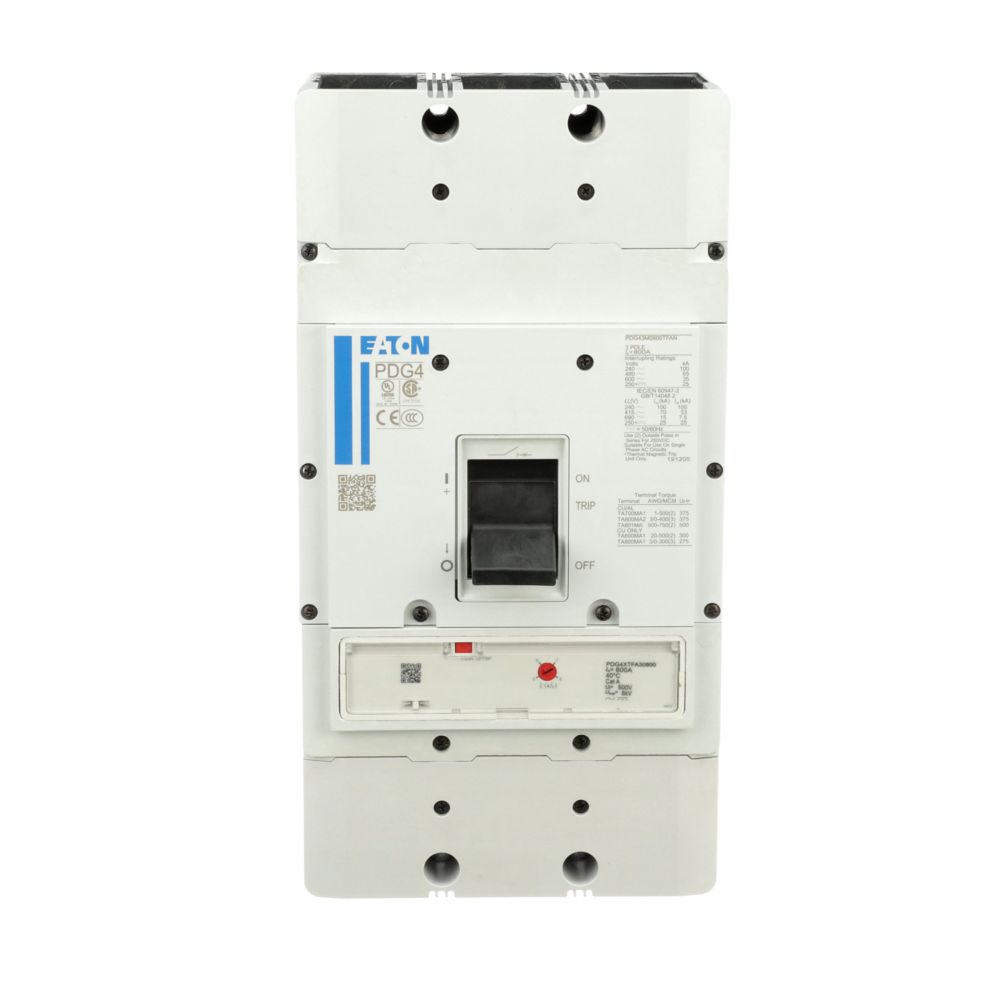

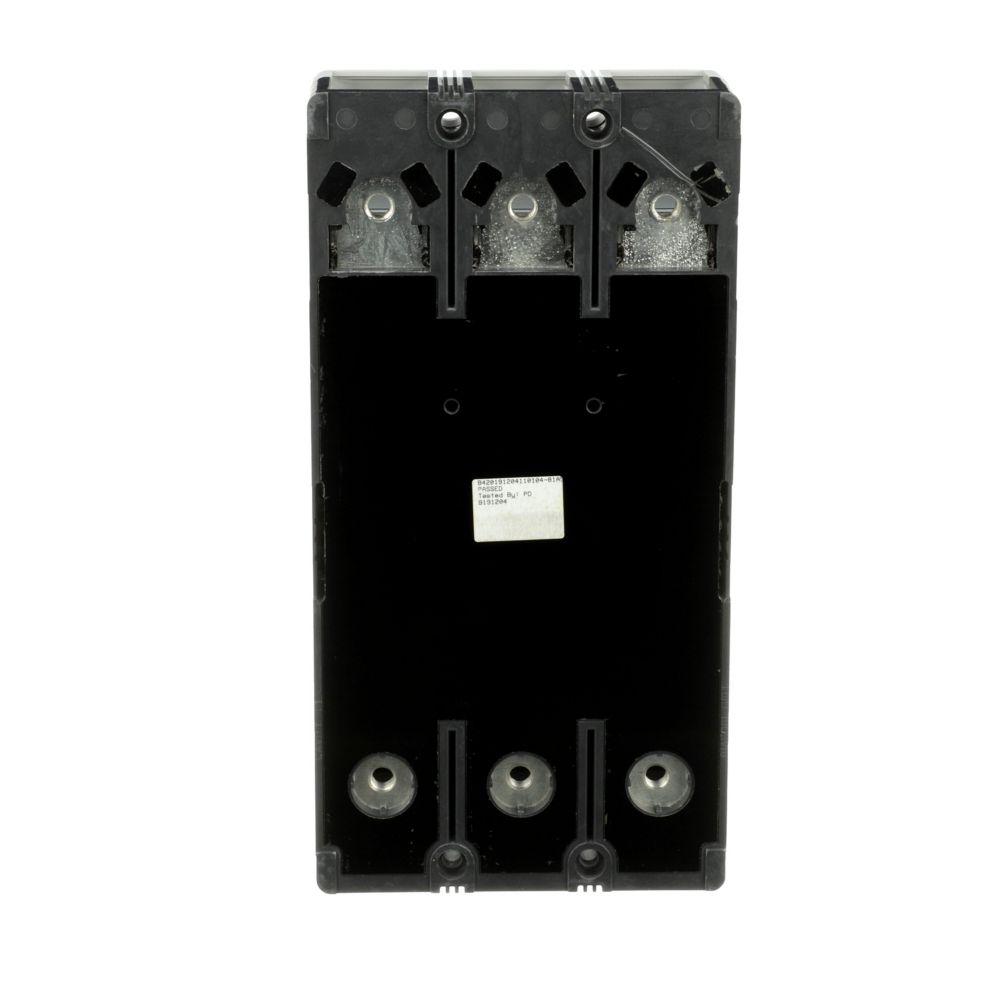

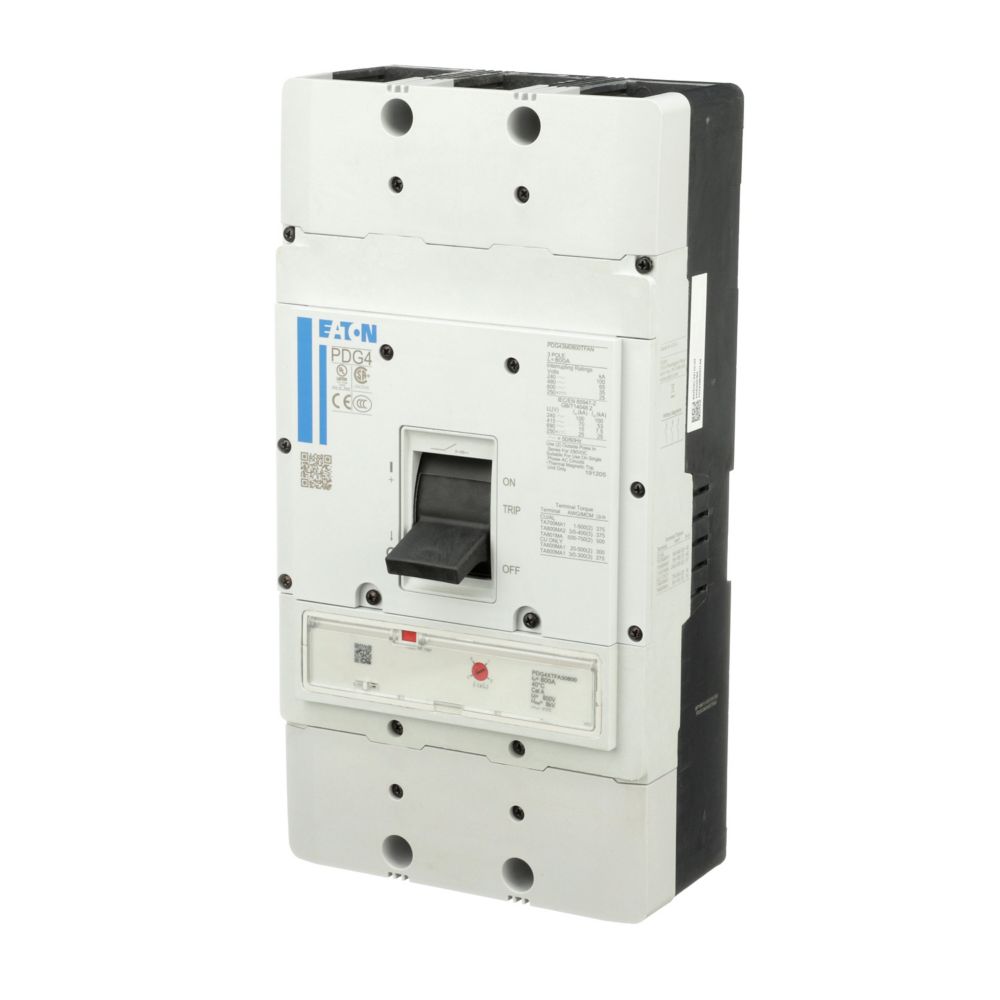

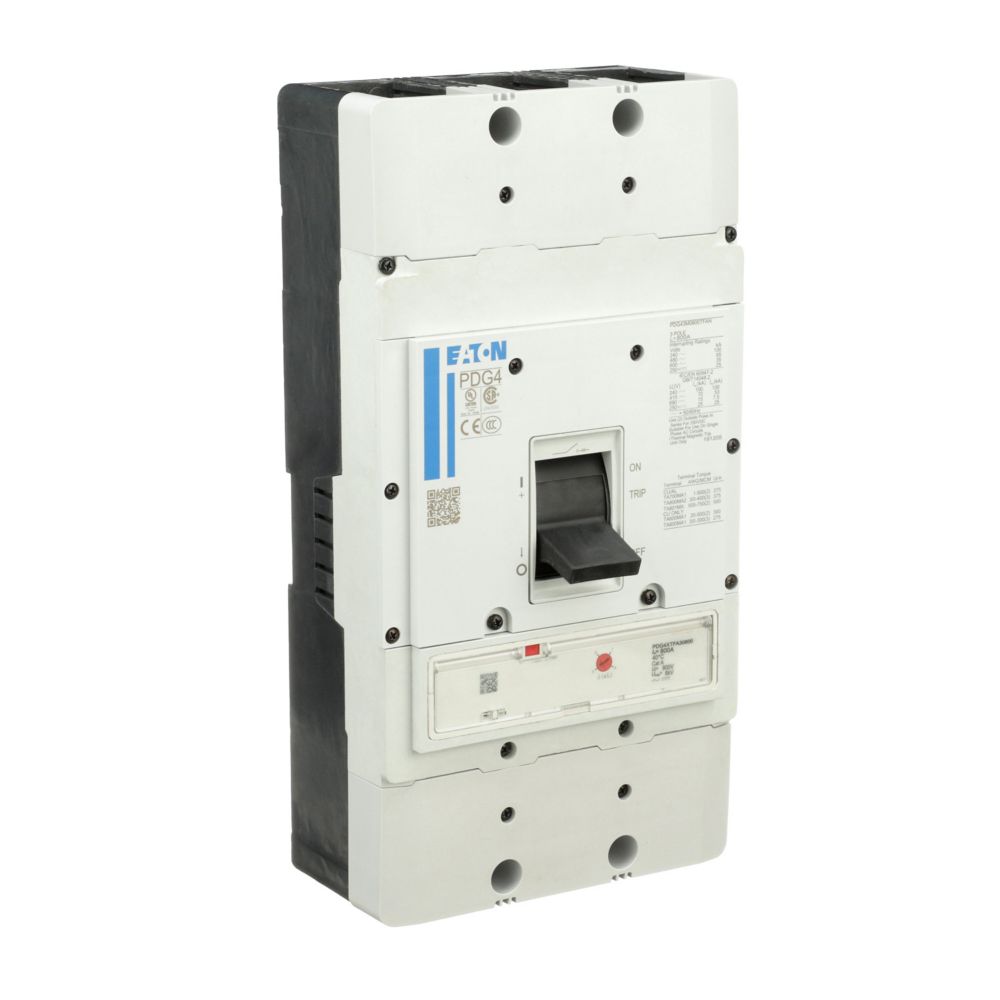

PDG43M0700TFAJ - Eaton Cutler Hammer 700A 600VAC 3-Pole Power Defense Circuit Breaker

PDG43M0700TFAJ

PDG43M0700TFAJ is a 3-pole molded case circuit breaker from Eaton Cutler Hammer's Power Defense series rated for 700 amps and 600 volts AC.This circuit breaker features a fixed thermal and adjustable magnetic trip unit, a 65 kA interrupt rating at 480 VAC, and is designed for heavy-duty power distribution applications. It uses a frame type 4 Power Defense design and supports wire sizes from 1 AWG to 500 kcmil.

• Amperage: 700 A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 65 kA at 480 VAC
• Frame/Series: Power Defense, Frame 4
• Trip Unit: Fixed Thermal / Adjustable Magnetic (T-M)
• Mounting Type: Molded Case
• Wire Size Range: (2) 1 AWG to 500 kcmil
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG43M0700TFAJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 700
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 786679402078
• Dimensions : 111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
• Weight : 29.436
