PDG43M0600TFAJ - Eaton Cutler Hammer 600A 600V 3 Pole Molded Case Circuit Breaker, Thermal Magnetic Trip

PDG43M0600TFAJ

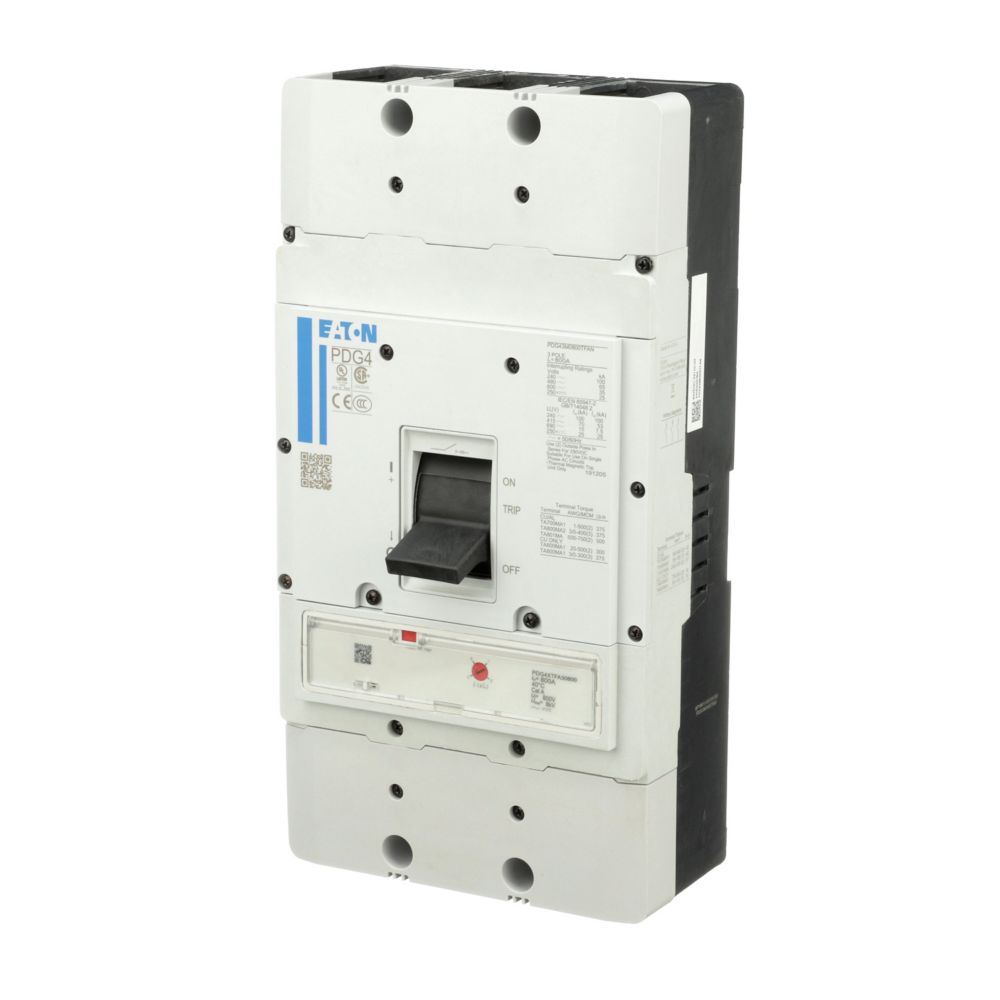

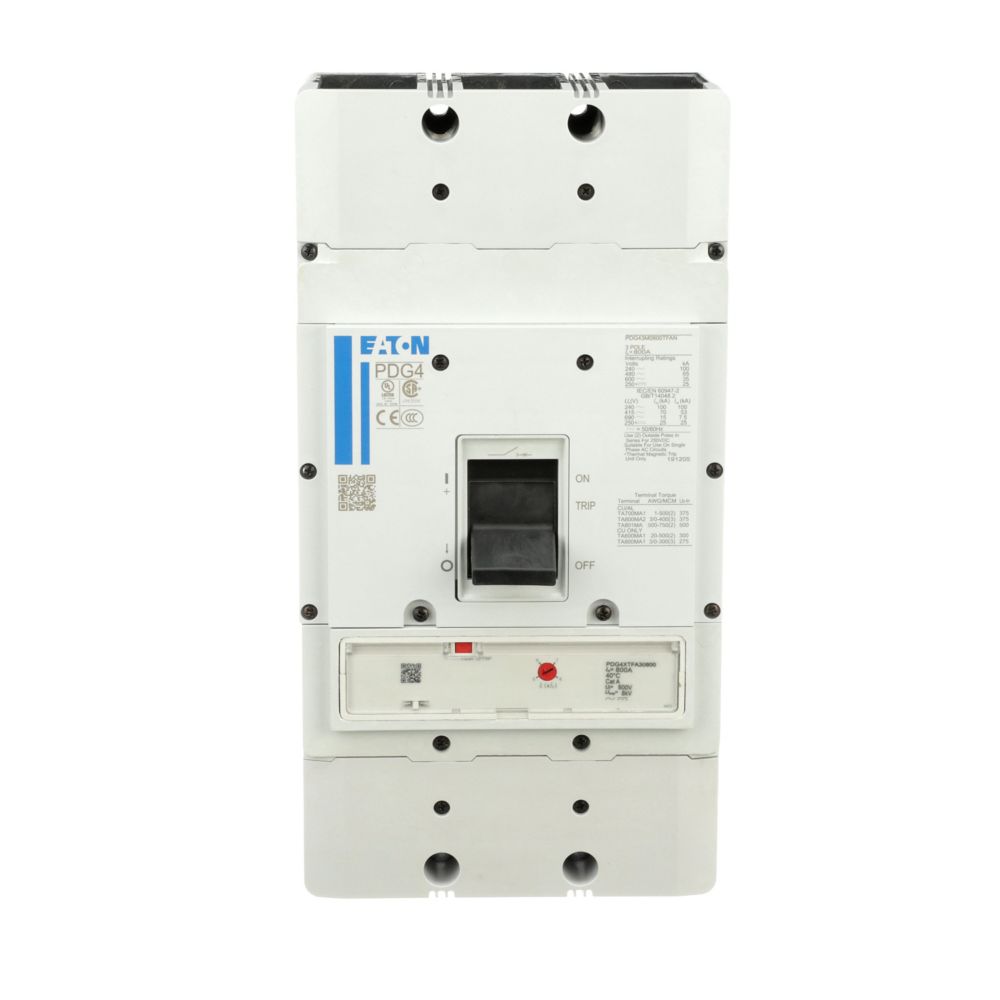

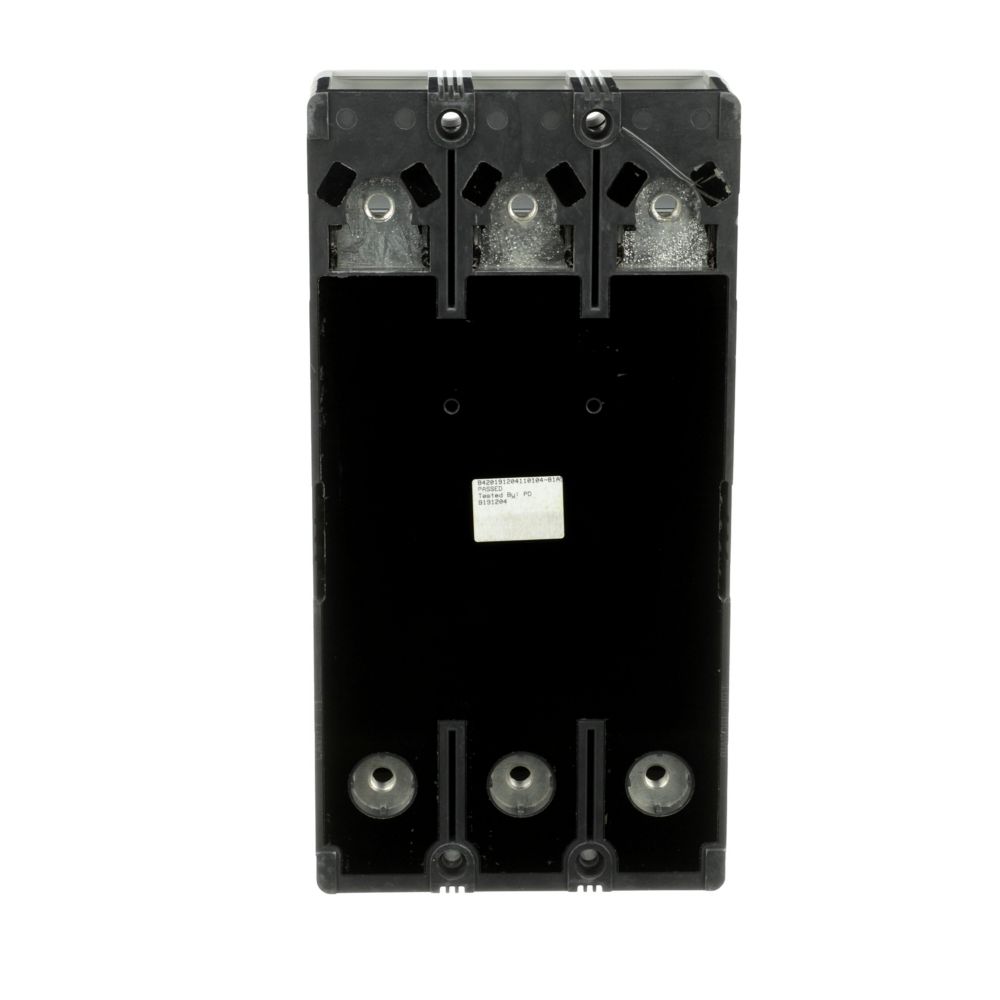

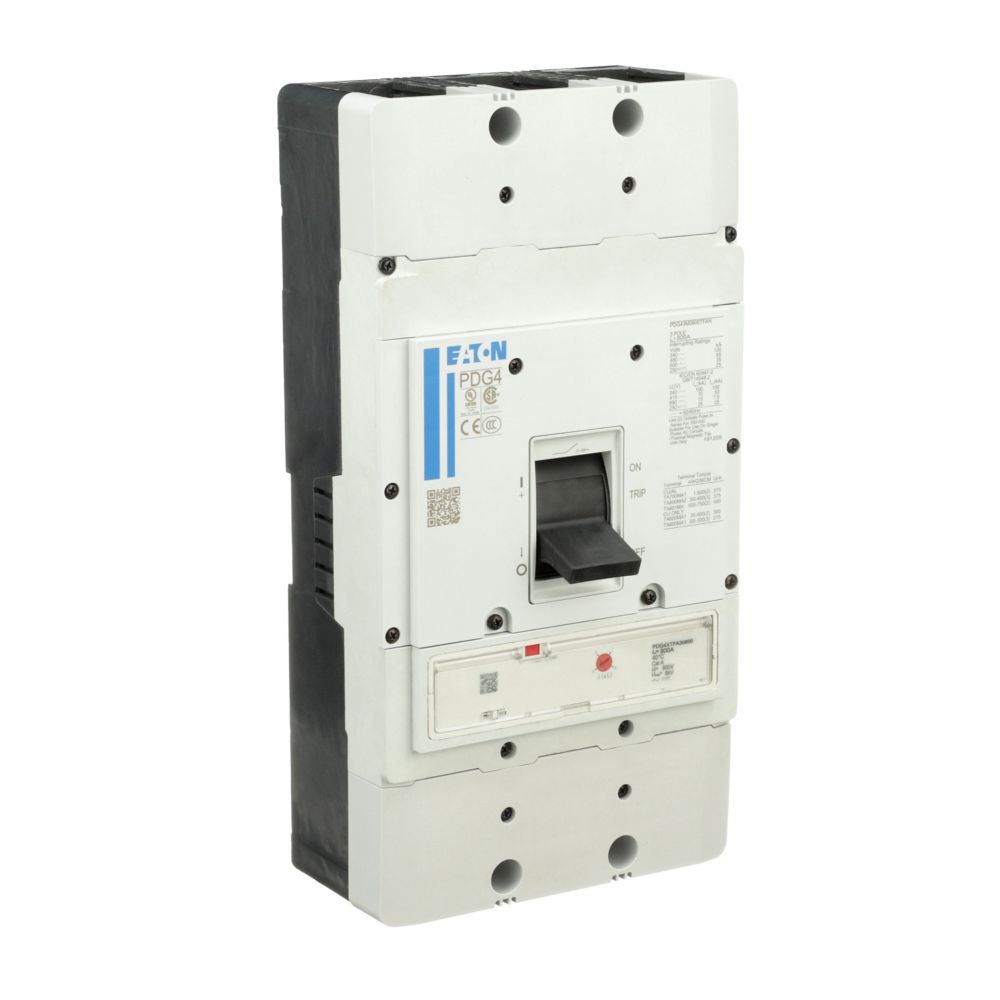

PDG43M0600TFAJ is a 3 pole, 600 amp, 600 volt molded case circuit breaker from Eaton Cutler Hammer designed for reliable industrial and commercial power protection.This circuit breaker features a thermal magnetic trip unit (T297), a 65 kA interrupt rating at 480 VAC, and is part of the PDG series frame 4. It mounts via DIN rail and complies with UL 489, CE, and CSA certifications, ensuring safety and performance.

• Amperage: 600 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Interrupt Rating: 65 kAIC at 480 VAC
• Trip Unit Type: Thermal Magnetic (T297)
• Mounting Type: DIN Rail
• Frame/Series: PDG Series, Frame 4
• Certifications: UL 489, CE, CSA
• Neutral Pole: No
• Neutral Protection: No
• RoHS Compliant: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG43M0600TFAJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679418499
• Dimensions : 111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
• Weight : 29.436
