- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG43K0800TFAJ

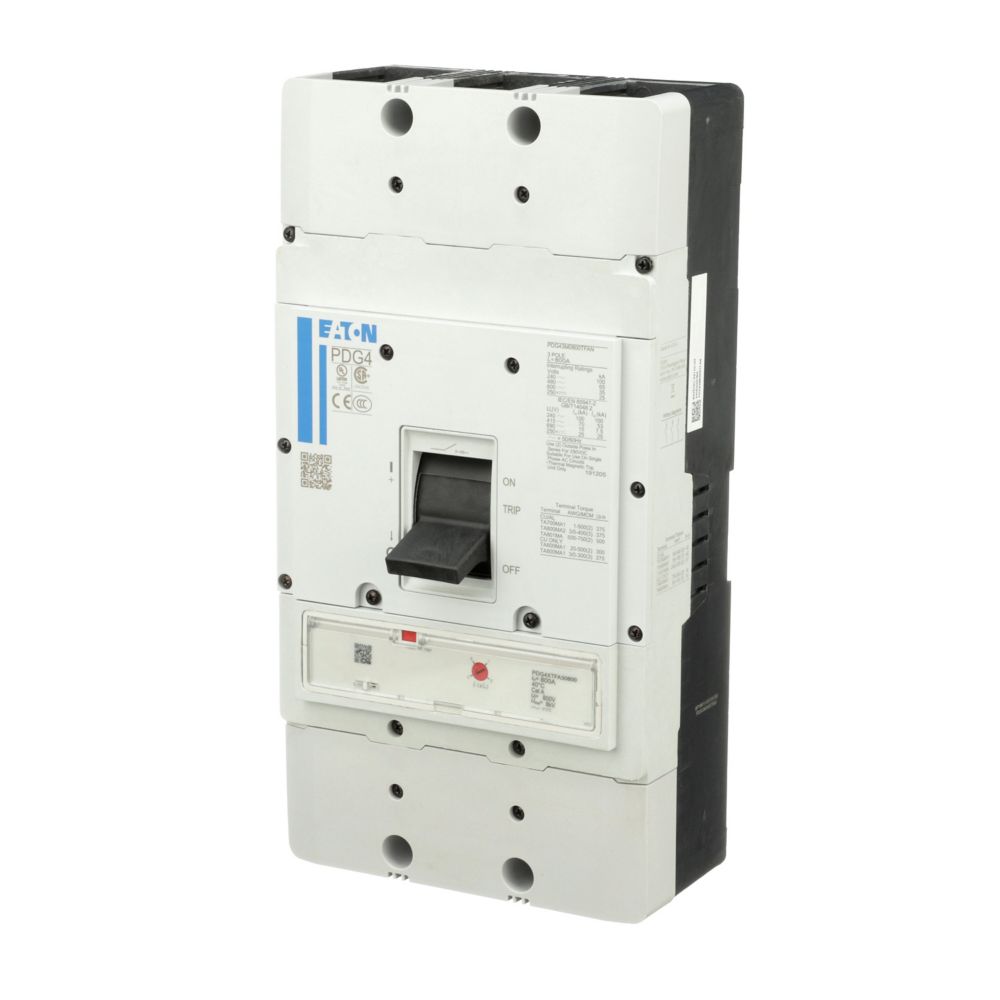

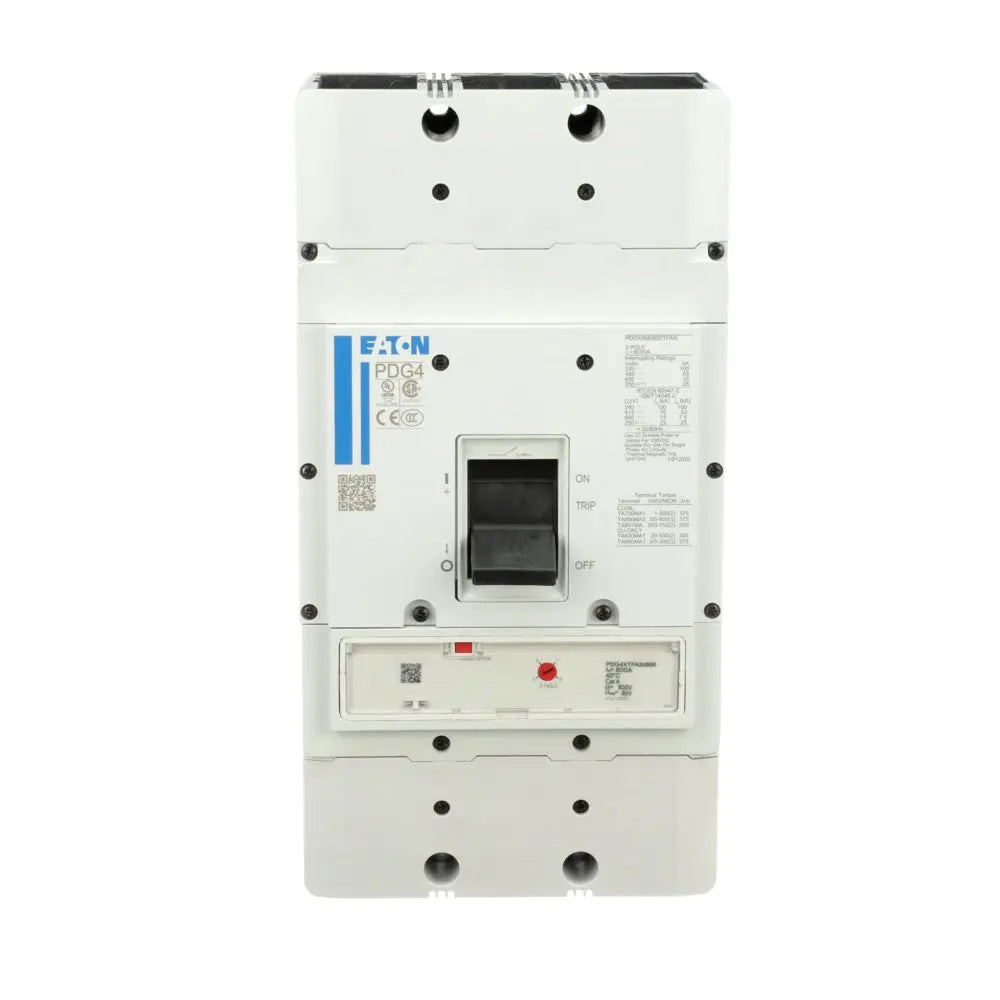

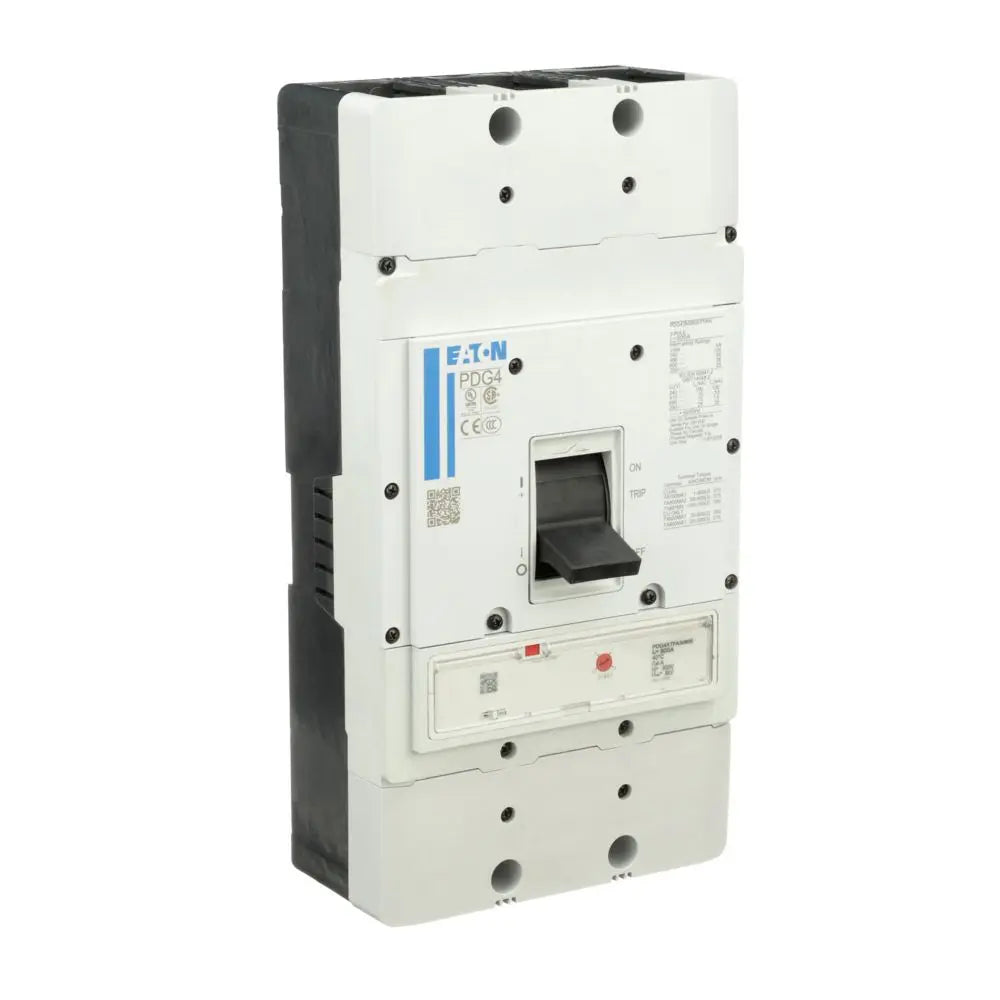

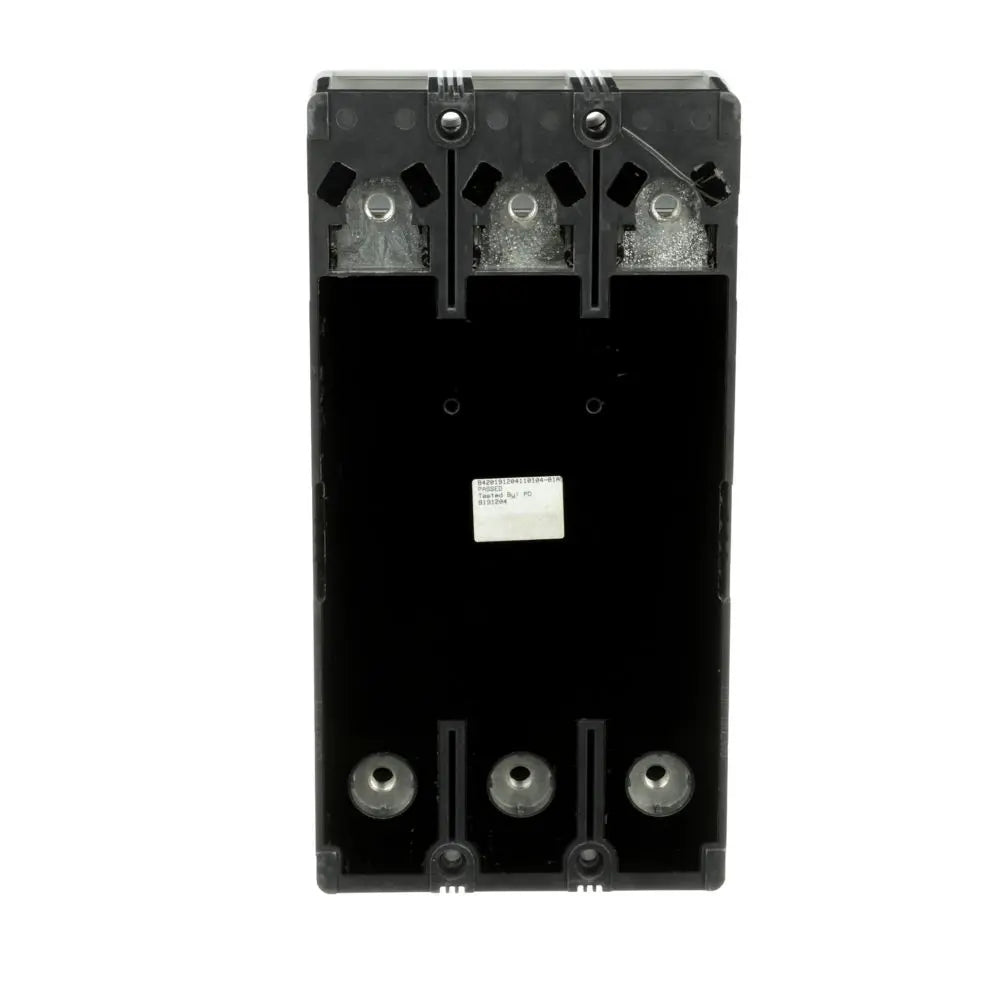

PDG43K0800TFAJ is a 3 pole, 800A, 600V molded case circuit breaker from Eaton's Power Defense series, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a frame size 4, fixed thermal and adjustable magnetic trip unit, and an interrupt rating of 50kAIC at 480V. It is suitable for fixed or drawout mounting and meets global safety standards for power distribution applications.
- Part Number: PDG43K0800TFAJ
- Manufacturer: Eaton
- Series: Power Defense
- Frame: 4
- Poles: 3
- Amperage Rating: 800A
- Voltage Rating: 600V AC
- Interrupt Rating: 50kAIC @ 480V
- Mounting Type: Fixed/Drawout
- Breaker Type: Thermal Magnetic
- Enclosure Type: IP2X
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: PDG43K0800TFAJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679389249
- Country of Origin : Dominican Republic
- Dimensions : 111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
- Weight : 29.436
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
