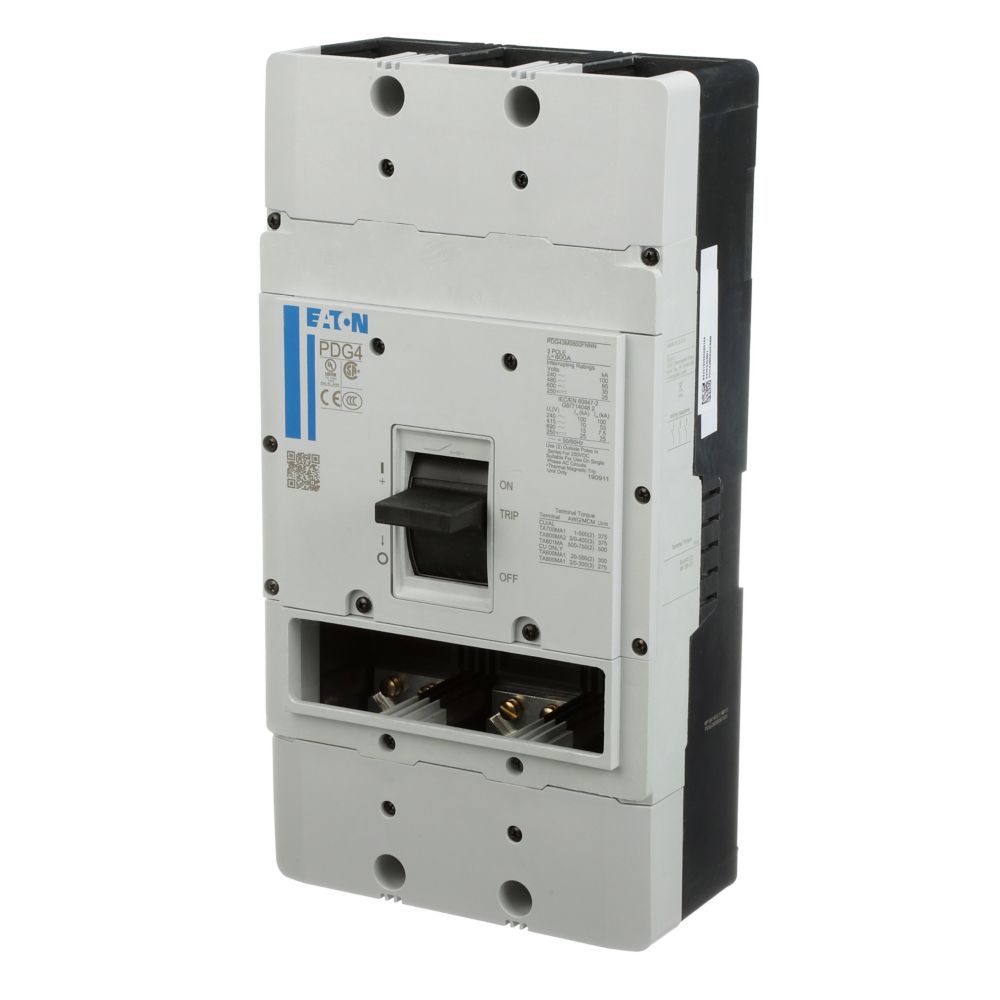

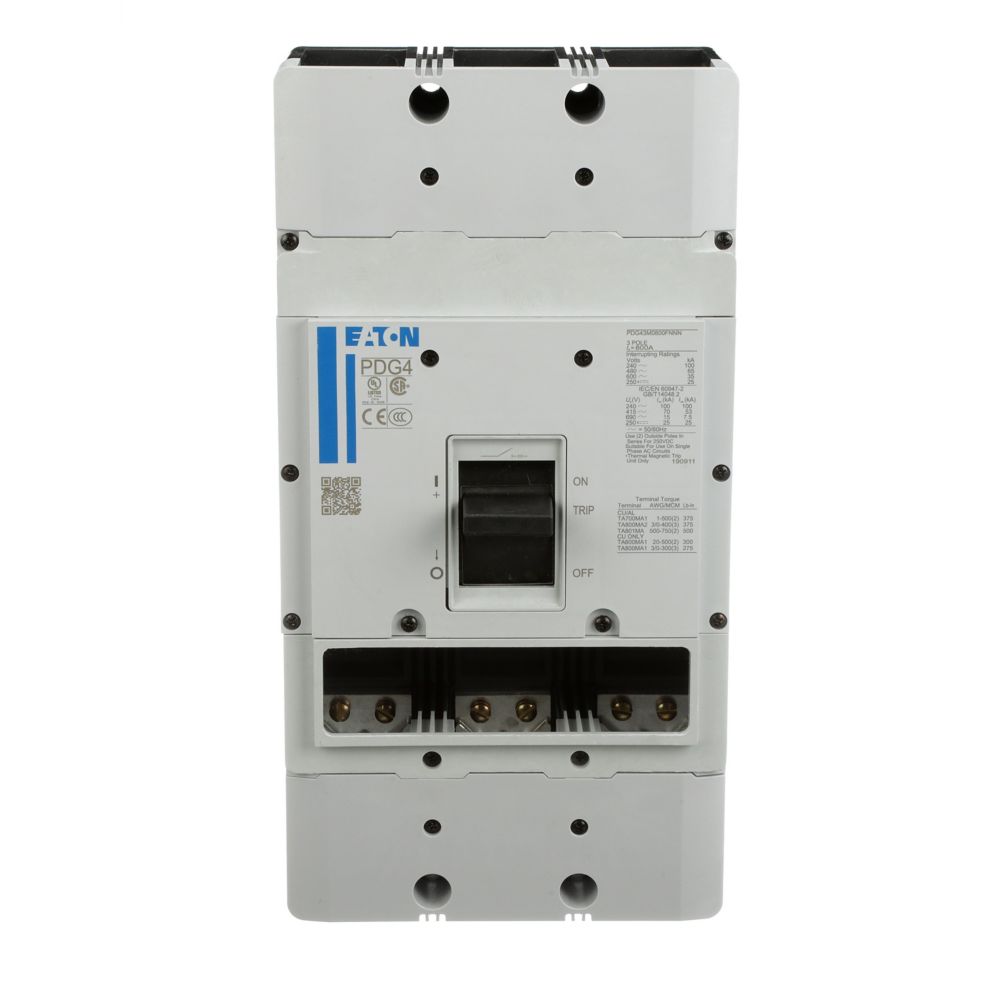

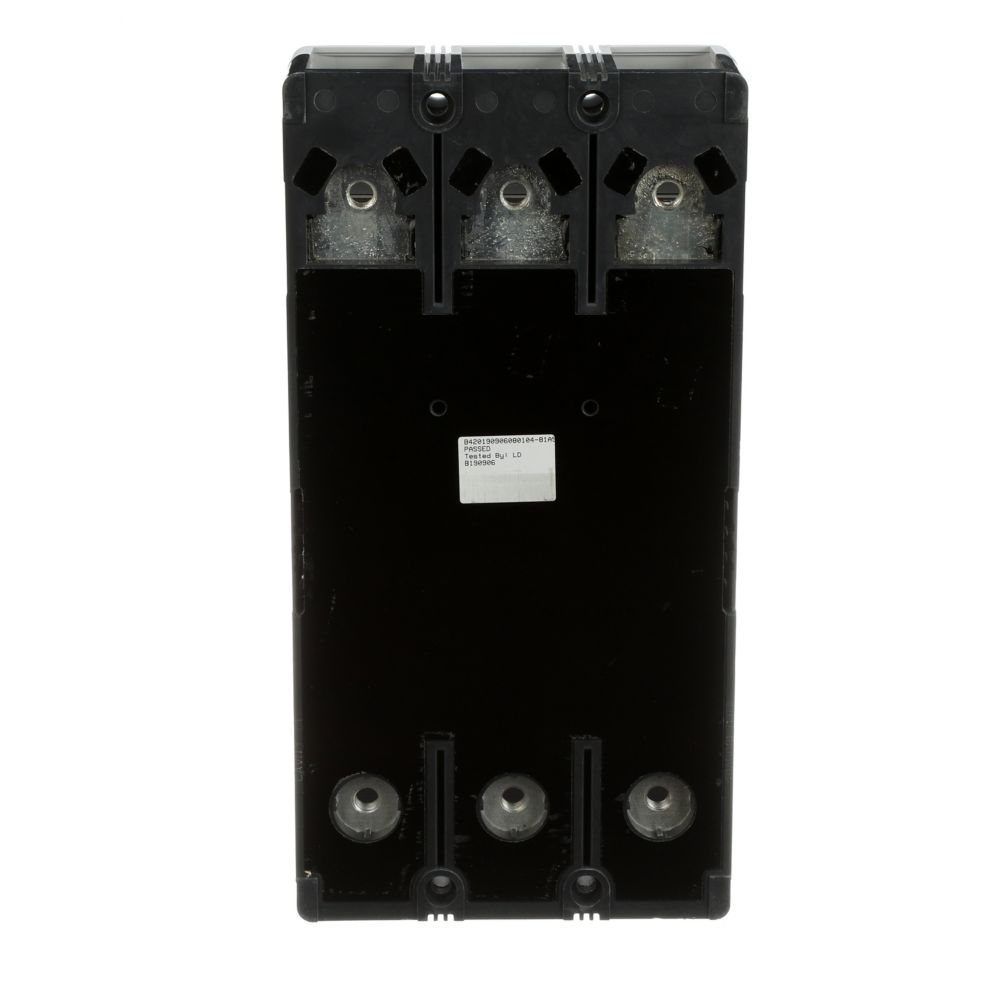

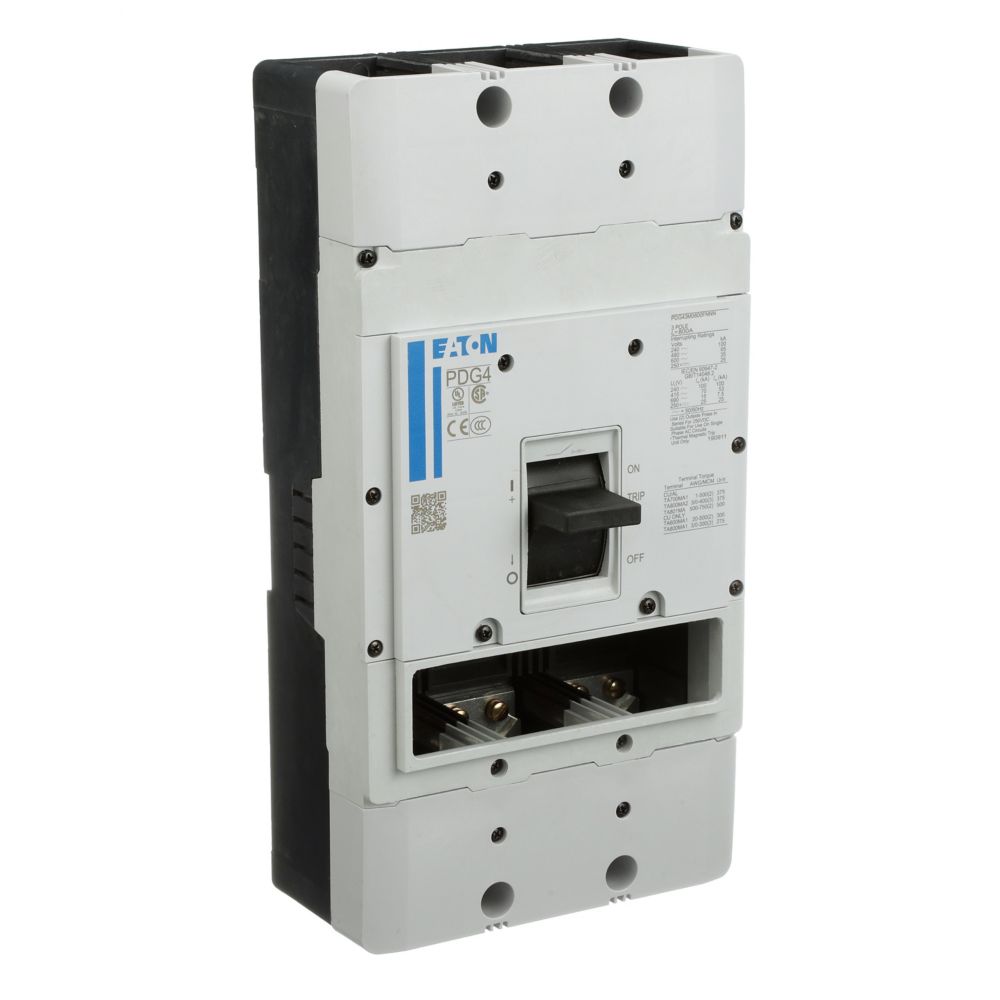

PDG43G0800FNNN - Eaton Power Defense Molded Case Circuit Breaker 800A 600VAC 3 Pole Frame Only 35kAIC

PDG43G0800FNNN

PDG43G0800FNNN is an Eaton Power Defense molded case circuit breaker designed for high-performance electrical protection.This circuit breaker features a 3-pole configuration with an amperage rating of 800 amps and a voltage rating of 600 VAC. It is a Frame 4 type breaker, supplied as frame only without terminals, and has an interrupt rating of 35 kAIC at 480 VAC. The breaker is part of Eaton's PD4 Global series and is suitable for demanding industrial and commercial applications.

Key Specifications
• Amperage: 800 A
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: Frame 4 (Frame Only)
• Interrupt Rating: 35 kAIC at 480 VAC
• Circuit Breaker Type: PD4 Global
• Terminals: No Terminals
• Mounting Type: Bolt-On Frame
• Enclosure Type: IP2X
• Certifications: UL Listed, IEC Compliant (implied by global rating)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.




Specifications

• Part Number: PDG43G0800FNNN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 1
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 78667937078
• GTIN : 00786679370780
• Country of Origin : Dominican Republic
• Dimensions : 4.38 in x 8.2 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 24.85
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 508
