Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG33P0400FNNN

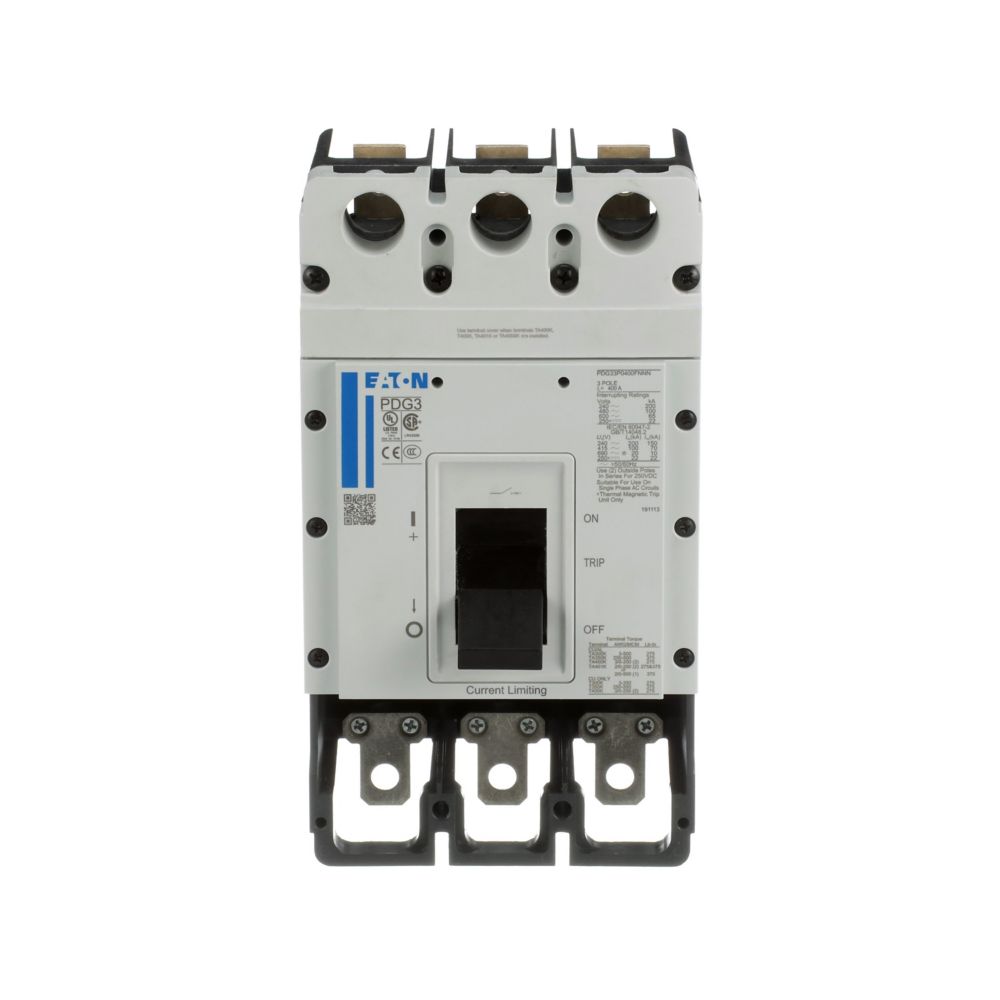

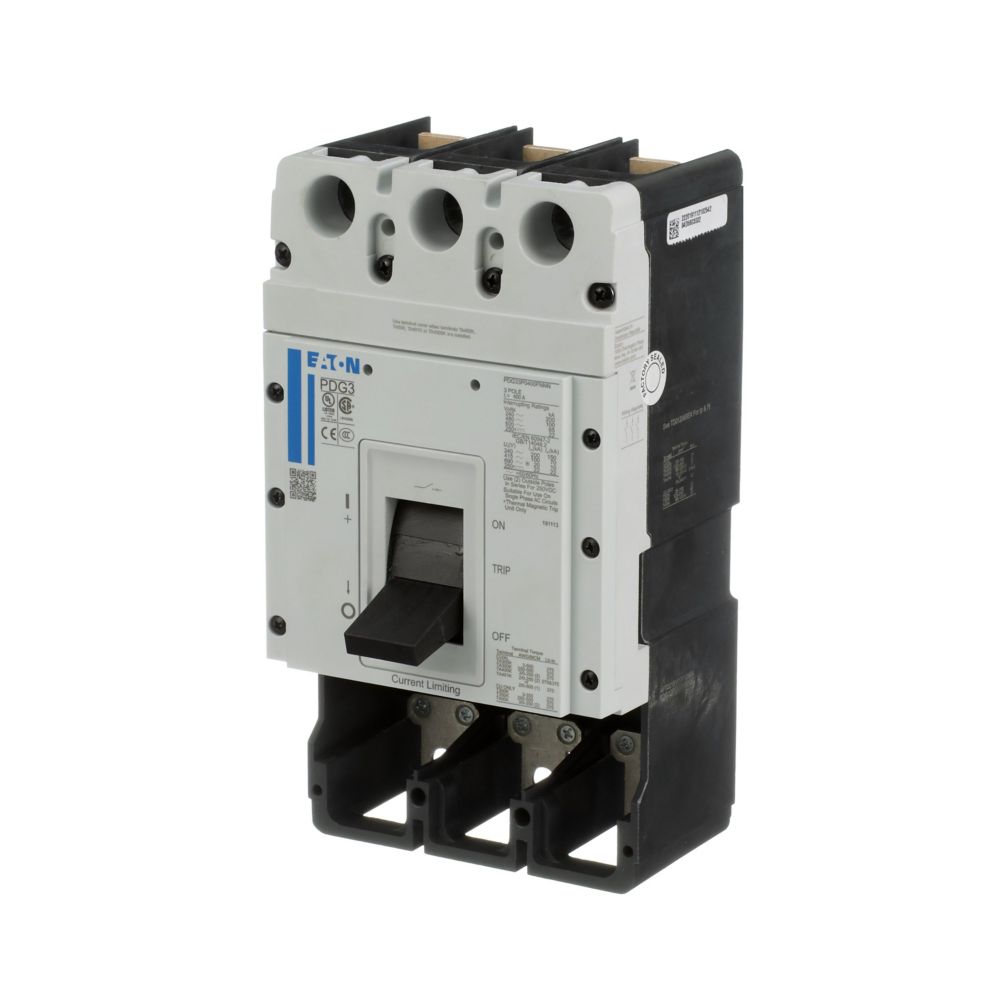

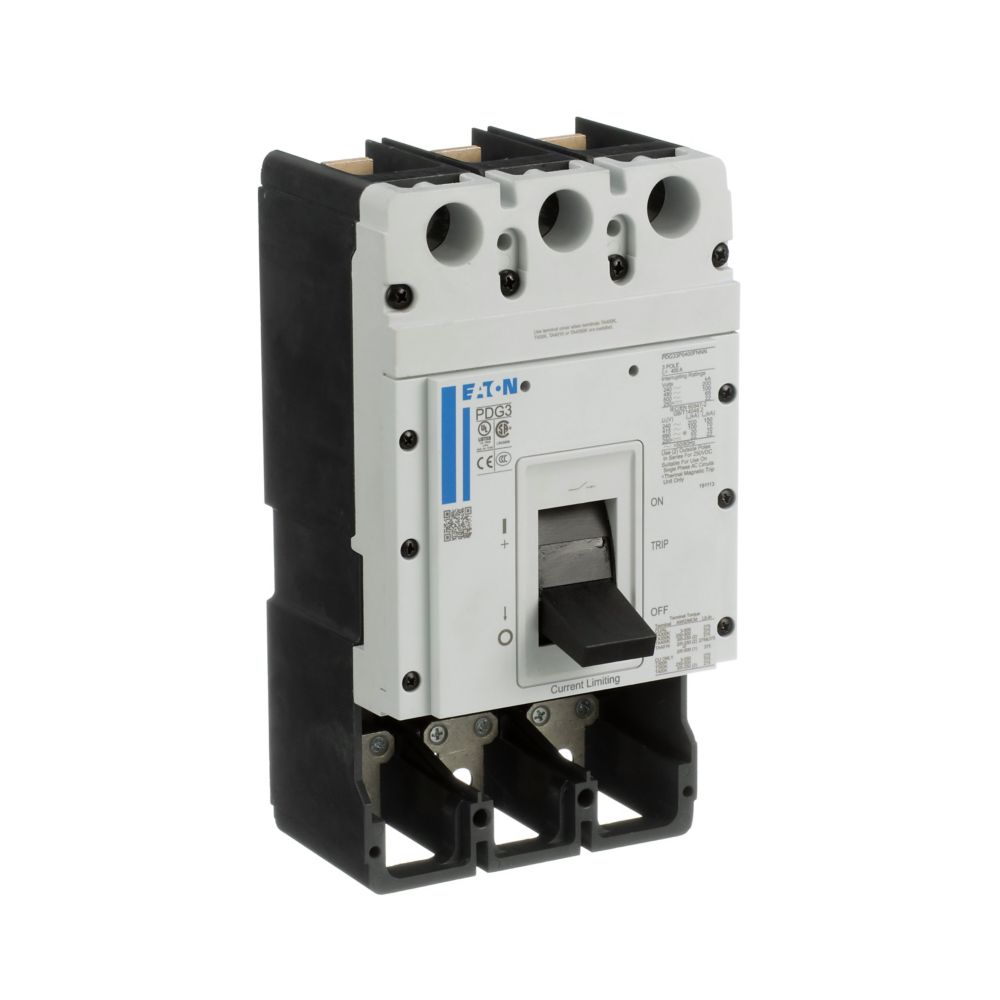

PDG33P0400FNNN is a frame-only molded case circuit breaker designed for Eaton Power Defense applications, rated for 400A, 3 pole, and 600VAC. This Eaton Cutler Hammer circuit breaker features a globally rated frame, 100kA interrupting capacity at 480V, and is suitable for industrial power distribution systems requiring robust protection and compatibility with PD3 Global series equipment.
- Part Number: PDG33P0400FNNN
- Manufacturer: Eaton - Cutler Hammer
- Series/Frame: PD3 Global, Frame 3
- Amperage Rating: 400A
- Poles: 3
- Voltage Rating: 600VAC
- Interrupt Rating: 100kAIC @ 480V
- Mounting Type: Frame Only (No Terminals)
- Trip Unit: Not Included
- Certifications: Globally Rated
- Application: Industrial Power Distribution
- Compliance: IEC 690V
Additional Information

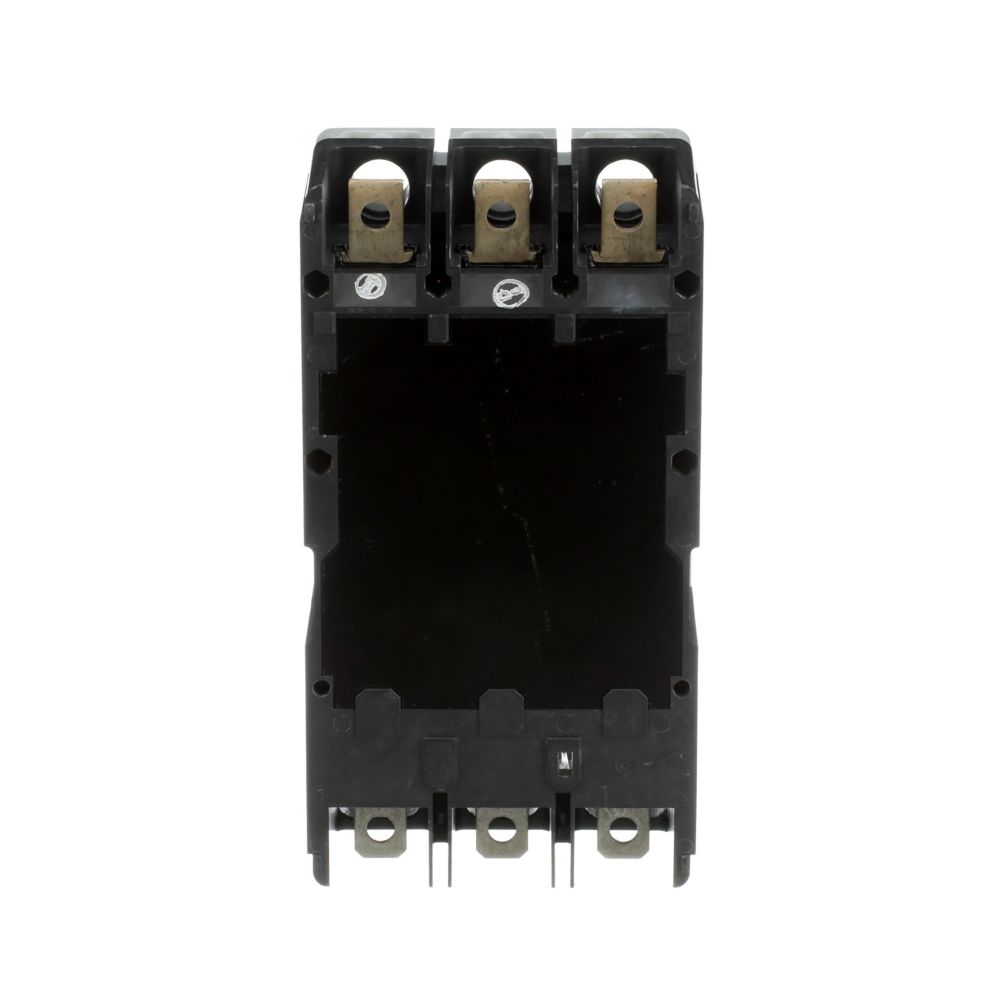

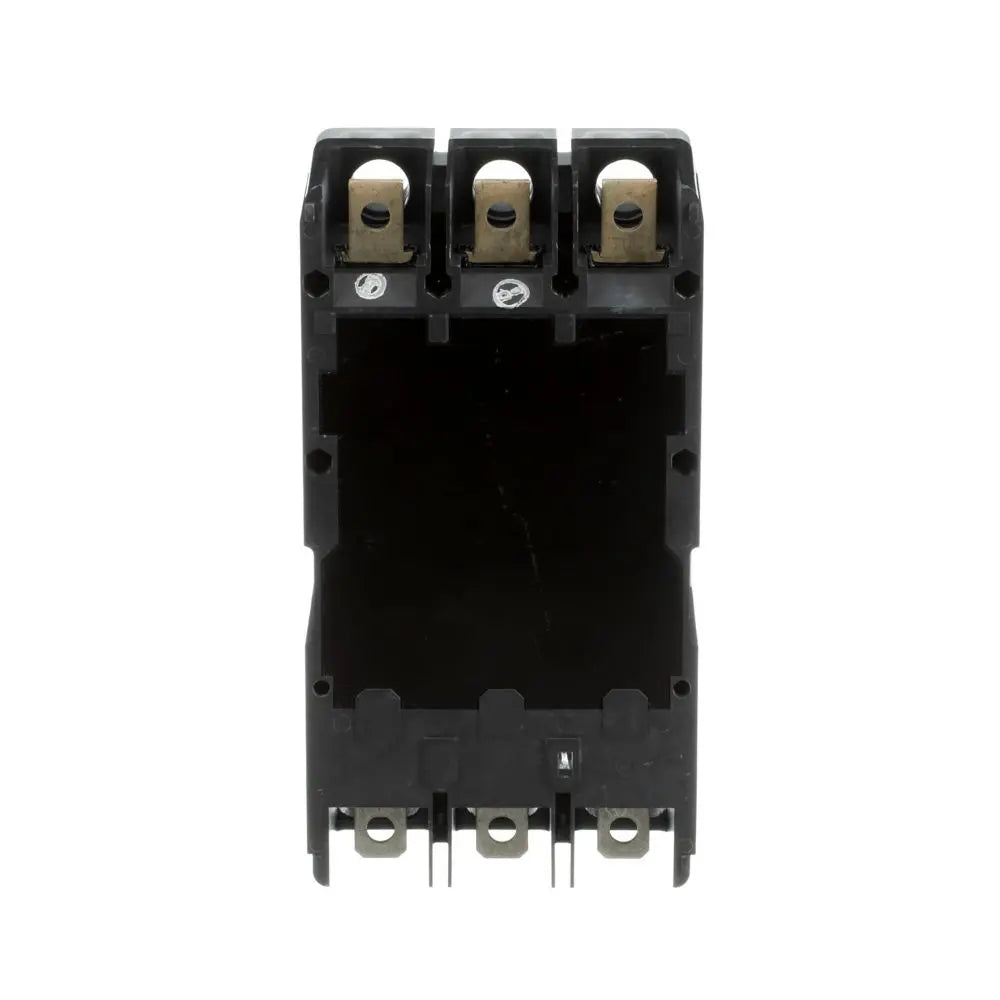

This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.
Specifications
- Part Number: PDG33P0400FNNN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668921753
- GTIN : 00786689217532
- Dimensions : 4.294 in x 10.12 in x 5.46 in (Length/Depth x Height x Width)
- Weight : 10.56
