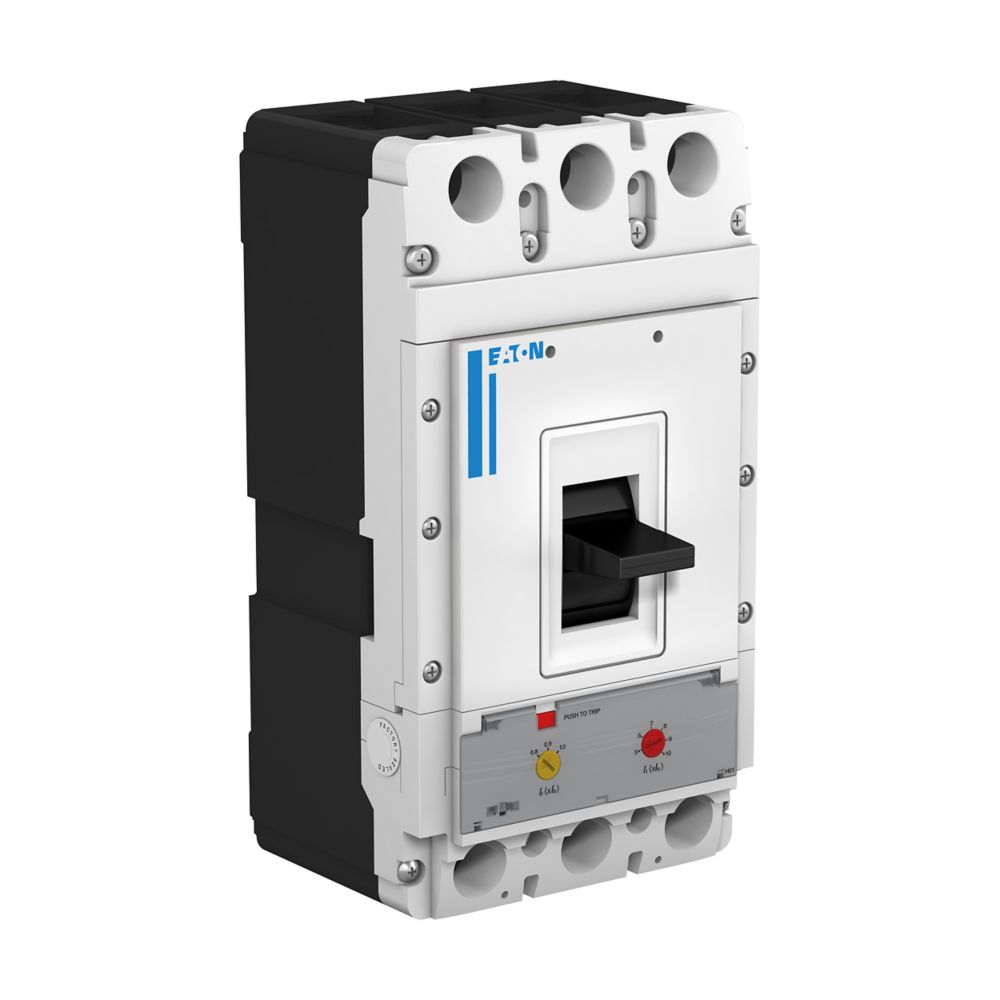

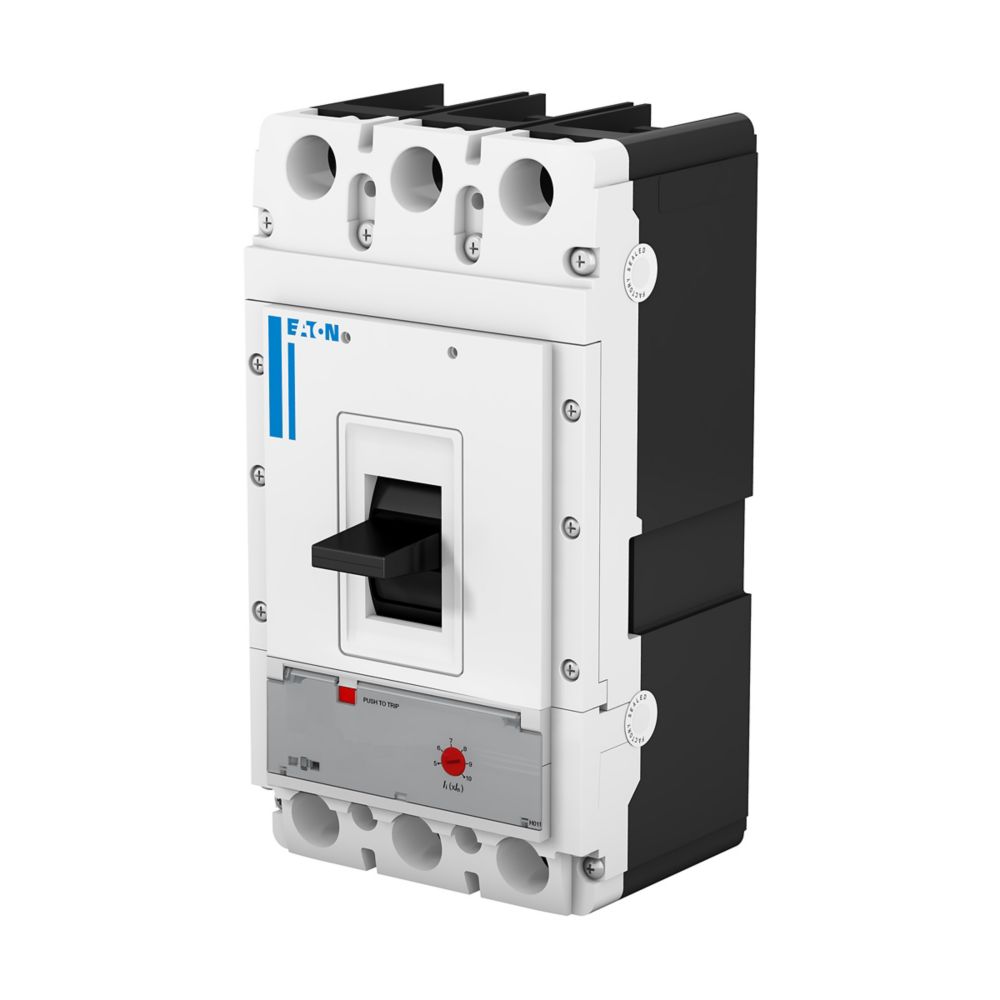

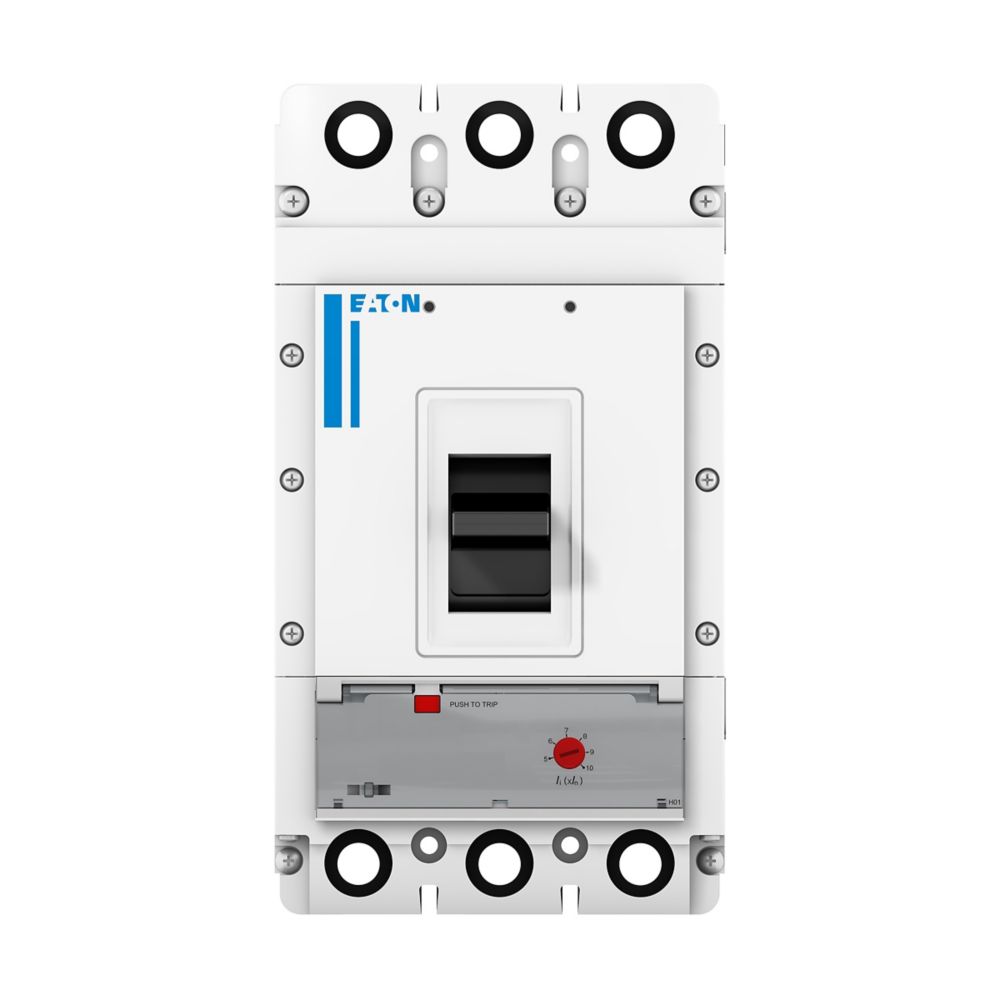

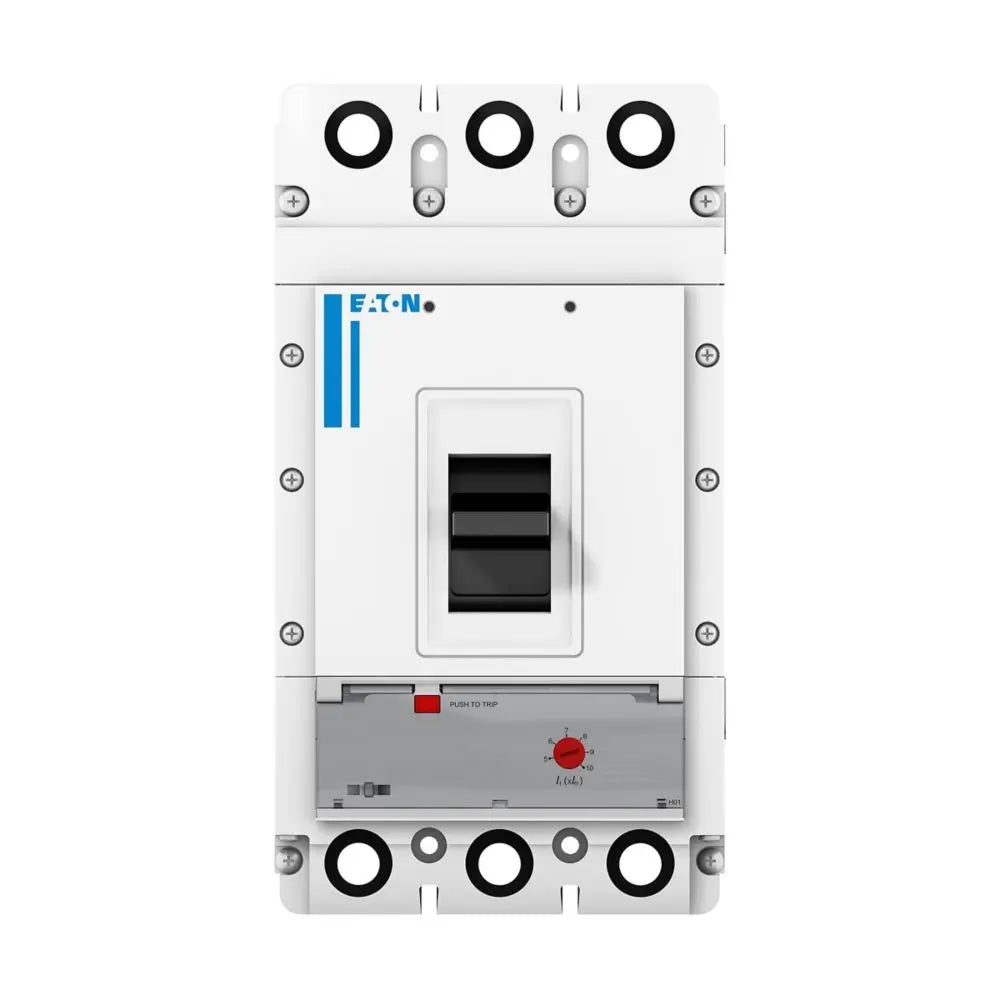

PDG33M0250TFAN - Eaton Power Defense Molded Case Circuit Breaker 3 Pole 250 Amp 600 VAC Frame 3 Thermal Magnetic Trip

PDG33M0250TFAN

PDG33M0250TFAN is a Power Defense molded case circuit breaker from Eaton designed for reliable circuit protection in industrial and commercial applications.This 3-pole breaker features a 250 Ampere rating and 600 VAC voltage capacity with a Frame 3 size. It uses a fixed-adjustable thermal magnetic trip unit (T297) providing dependable overload and short circuit protection. The breaker has a 65kA interrupt rating at 480V and comes without terminals for flexible installation. It meets global certifications including UL, CSA, IEC, and CB standards.

• Amperage: 250 A
• Voltage: 600 VAC
• Poles: 3
• Frame Size: 3
• Trip Unit: Fixed-Adjustable Thermal Magnetic (T297)
• Interrupt Rating: 65kA at 480V
• Mounting Type: Molded Case
• Terminals: No terminals included
• Certifications: UL, CSA, IEC, CB
• Series: Power Defense (PD3)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33M0250TFAN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679204788
• Country of Origin : Dominican Republic
• Dimensions : 12.9 in x 7.1 in x 8.2 in (Length/Depth x Height x Width)
• Weight : 12.05
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
